YA系列增安型三相異步電動機主要技術參數
|
型號 |
額定功率/kW |
額定電流/A |
額定轉速/(r/min) |
效率
(%) |
功率因數 |
 |
 |
 |
重量/kg | ||||||
|
T1、T2 |
T3 |
T1、T2 |
T3 |
T1～T3 |
T1、T2 |
T3 |
T1、T2 |
T3 |
T1～T3 |
T1、T2 |
T3 |
T1、T2 |
T3 | ||
|
YA801-2 |
0.75 |
1.8 |
2825 |
75.0 |
0.84 |
6.5 |
2.2 |
2.2 |
2.3 |
2.3 |
15 | ||||
|
YA802-2 |
1.1 |
2.5 |
2825 |
77.0 |
0.86 |
7.0 |
2.2 |
2.2 |
2.3 |
2.3 |
16 | ||||
|
YA90S-2 |
1.5 |
3.5 |
2840 |
78.0 |
0.84 |
7.0 |
2.2 |
2.2 |
2.3 |
2.3 |
21 | ||||
|
YA 90L-2 |
2.2 |
4.8 |
2840 |
80.5 |
0.86 |
7.0 |
2.2 |
2.2 |
2.3 |
2.3 |
24 | ||||
|
YA100L-2 |
3 |
6.4 |
2880 |
82.0 |
0.87 |
7.0 |
2.2 |
2.2 |
2.3 |
2.3 |
32 | ||||
|
YA112M-2 |
4 |
8.2 |
2890 |
85.5 |
0.87 |
7.0 |
2.2 |
2.2 |
2.3 |
2.3 |
44 | ||||
|
YA132S1-2 |
5.5 |
11.1 |
2900 |
85.5 |
0.88 |
7.0 |
2.0 |
2.0 |
2.3 |
2.3 |
63 | ||||
|
YA132S2-2 |
7.5 |
15.0 |
2900 |
86.7 |
0.88 |
7.0 |
2.0 |
2.0 |
2.3 |
2.3 |
69 | ||||
|
YA160M1-2 |
11 |
21.8 |
2930 |
87.2 |
88.0 |
0.88 |
0.90 |
7.0 |
2.0 |
1.8 |
2.3 |
2.3 |
116 | ||
|
YA160M2-2 |
15 |
29.4 |
2930 |
88.2 |
89.0 |
0.88 |
0.90 |
7.0 |
2.0 |
1.8 |
2.3 |
2.2 |
123 | ||
|
YA160L-2 |
18.5 |
35.4 |
2930 |
89 |
88.5 |
0.89 |
0.91 |
7.0 |
2.0 |
1.8 |
2.2 |
2.2 |
146 | ||
|
YA180M-2 |
22 |
18.5 |
42.2 |
34.9 |
2940 |
89 |
88.5 |
0.89 |
0.91 |
7.0 |
2.0 |
1.5 |
2.2 |
2.2 |
180 |
|
YA200L1-2 |
30 |
22 |
56.9 |
41.5 |
2950 |
90 |
89.5 |
0.89 |
0.91 |
7.0 |
2.0 |
1.5 |
2.2 |
2.2 |
240 |
|
YA200L2-2 |
37 |
30 |
69.8 |
56.0 |
2950 |
90.5 |
90.5 |
0.89 |
0.91 |
7.0 |
2.0 |
1.5 |
2.2 |
2.2 |
255 |
|
YA225M-2 |
45 |
37 |
84.4 |
68.3 |
2960 |
91 |
90.5 |
0.89 |
0.91 |
7.0 |
2.0 |
1.5 |
2.2 |
2.2 |
309 |
|
YA250M-2 |
55 |
45 |
102.6 |
83 |
2970 |
91.5 |
91 |
0.89 |
0.91 |
7.0 |
2.0 |
1.5 |
2.2 |
2.2 |
403 |
|
YA280S-2 |
75 |
55 |
137 |
100 |
2970 |
91 |
91 |
0.91 |
0.91 |
7.0 |
1.9 |
1.5 |
2.2 |
2.2 |
544 |
|
YA280M-2 |
90 |
75 |
162 |
137 |
2970 |
92.5 |
－ |
0.91 |
－ |
7.0 |
1.9 |
－ |
2.2 |
－ |
620 |
|
YA801-4 |
0.55 |
1.6 |
1400 |
73.0 |
0.74 |
6.0 |
2.4 |
2.3 |
16 | ||||||
|
YA802-4 |
0.75 |
2.1 |
1400 |
74.5 |
0.74 |
6.0 |
2.3 |
2.3 |
17 | ||||||
|
YA90S-4 |
1.1 |
2.8 |
1400 |
77.5 |
0.76 |
6.5 |
2.3 |
2.3 |
21 | ||||||
|
YA90L-4 |
1.5 |
3.7 |
1400 |
78.5 |
0.78 |
6.5 |
2.3 |
2.3 |
26 | ||||||
|
YA100L1-4 |
2.2 |
5.1 |
1420 |
81 |
0.815 |
7.0 |
2.2 |
2.3 |
33 | ||||||
|
YA100L2-4 |
3 |
6.9 |
1430 |
82.5 |
0.800 |
7.0 |
2.2 |
2.3 |
37 | ||||||
|
YA112M-4 |
4 |
8.9 |
1440 |
84.5 |
0.810 |
7.0 |
2.2 |
2.3 |
42 | ||||||
|
YA132S1-4 |
5.5 |
11.8 |
1440 |
85.5 |
0.830 |
7.0 |
2.2 |
2.3 |
67 | ||||||
|
YA132S2-4 |
5.5 |
11.8 |
1440 |
85.5 |
0.830 |
7.0 |
2.2 |
2.3 |
68 | ||||||
|
YA132M1-4 |
7.5 |
15.6 |
1440 |
87 |
0.880 |
7.0 |
2.2 |
2.3 |
80 | ||||||
|
YA132M2-4 |
7.5 |
15.6 |
1440 |
87 |
0.880 |
7.0 |
2.2 |
2.3 |
80 | ||||||
|
YA160M1-4 |
11 |
－ |
22.6 |
1460 |
88 |
0.88 |
7.0 |
2.2 |
2.3 |
123 | |||||
|
YA160M2-4 |
11 |
－ |
22.6 |
1460 |
88 |
0.88 |
7.0 |
2.2 |
2.3 |
123 | |||||
|
YA160L-4 |
15 |
－ |
30.3 |
1460 |
88.5 |
0.850 |
7.0 |
2.2 |
2.3 |
144 | |||||
|
YA180M-4 |
18.5 |
－ |
35.5 |
－ |
1470 |
91 |
－ |
0.87 |
－ |
7.0 |
2.0 |
－ |
2.2 |
－ |
182 |
|
YA180L-4 |
22 |
18.5 |
42.7 |
35.7 |
1470 |
90 |
90.5 |
0.87 |
0.87 |
7.0 |
2.0 |
1.9 |
2.2 |
2.2 |
190 |
|
YA200L-4 |
30 |
22 |
56.8 |
41.8 |
1470 |
92.2 |
91.2 |
0.87 |
0.87 |
7.0 |
2.0 |
1.9 |
2.2 |
2.2 |
270 |
|
YA225S-4 |
37 |
30 |
69.6 |
57.5 |
1480 |
91.8 |
92 |
0.88 |
0.88 |
7.0 |
1.9 |
1.8 |
2.2 |
2.2 |
284 |
|
YA225M-4 |
45 |
37 |
84.2 |
69.4 |
1480 |
92.3 |
92 |
0.88 |
0.88 |
7.0 |
1.9 |
1.7 |
2.2 |
2.2 |
320 |
|
YA250M-4 |
55 |
45 |
102.5 |
84.4 |
1480 |
92.6 |
93 |
0.88 |
0.89 |
7.0 |
2.0 |
1.7 |
2.2 |
2.2 |
427 |
|
YA280S-4 |
75 |
55 |
139 |
101 |
1480 |
92.7 |
93 |
0.88 |
0.90 |
7.0 |
1.9 |
1.7 |
2.2 |
2.2 |
562 |
|
YA280M-4 |
90 |
75 |
164 |
136 |
1480 |
93.5 |
－ |
0.89 |
－ |
7.0 |
1.9 |
－ |
2.2 |
2.3 |
667 |
|
YA90S-6 |
0.75 |
2.3 |
910 |
72 |
0.68 |
5.5 |
2.0 |
2.2 |
22 | ||||||
|
YA90L-6 |
1.1 |
3.3 |
910 |
73 |
0.70 |
5.5 |
2.0 |
2.2 |
24 | ||||||
|
YA100L1-6 |
1.5 |
4 |
938 |
77.5 |
0.73 |
6.0 |
2.0 |
2.2 |
32 | ||||||
|
YA100L2-6 |
1.5 |
4 |
938 |
77.5 |
0.73 |
6.0 |
2.0 |
2.2 |
44 | ||||||
|
YA112M-6 |
2.2 |
5.7 |
940 |
80 |
|
6.0 |
2.0 |
2.2 |
62 | ||||||
|
YA132S1-6 |
3 |
7.3 |
960 |
83 |
0.75 |
6.5 |
2.0 |
2.2 |
72 | ||||||
|
YA132S2-6 |
3 |
7.3 |
960 |
83 |
0.75 |
6.5 |
2.0 |
2.2 |
83 | ||||||
|
YA132M1-6 |
4 |
9.3 |
960 |
84 |
0.78 |
6.5 |
2.0 |
2.2 |
118 | ||||||
|
YA132M2-6 |
5.5 |
12.6 |
960 |
85.3 |
0.78 |
6.5 |
2.0 |
2.2 |
146 | ||||||
|
YA160M1-6 |
7.5 |
17.2 |
970 |
86 |
0.77 |
6.5 |
2.0 |
2.2 |
194 | ||||||
|
YA160M2-6 |
7.5 |
17.2 |
970, , , |
86 |
0.77 |
6.5 |
2.0 |
2.0 |
220 | ||||||
|
YA160L-6 |
11 |
25.3 |
970 |
87 |
0.76 |
6.5 |
2.0 |
2.0 |
240 | ||||||
|
YA180L-6 |
15 |
31.8 |
970 |
88.5 |
0.81 |
6.5 |
1.8 |
2.0 |
291 | ||||||
|
YA200L1-6 |
－ |
18.5 |
－ |
37.7 |
970 |
89.8 |
0.83 |
6.5 |
1.8 |
2.0 |
220 | ||||
|
YA200L2-6 |
－ |
22 |
－ |
44.6 |
970 |
90.2 |
0.83 |
6.5 |
1.8 |
2.0 |
250 | ||||
|
YA225M-6 |
－ |
30 |
－ |
60.2 |
910 |
90.2 |
0.84 |
6.5 |
1.7 |
2.0 |
292 | ||||
|
YA250M-6 |
－ |
37 |
－ |
72 |
985 |
90.8 |
0.86 |
6.5 |
1.8 |
2.0 |
408 | ||||
|
YA280S-6 |
－ |
45 |
－ |
85 |
980 |
92 |
0.87 |
6.5 |
1.8 |
2.0 |
536 | ||||
|
YA280M-6 |
－ |
55 |
－ |
104 |
980 |
92 |
0.87 |
6.5 |
1.8 |
2.0 |
595 | ||||
|
YA132S1-8 |
2.2 |
5.8 |
710 |
80.5 |
0.71 |
5.5 |
2.0 |
2.0 |
62 | ||||||
|
YA132S2-8 |
2.2 |
5.8 |
710 |
80.5 |
0.71 |
5.5 |
2.0 |
2.0 |
62 | ||||||
|
YA132M1-8 |
3 |
7.8 |
710 |
81.5 |
0.72 |
5.5 |
2.0 |
2.0 |
78 | ||||||
|
YA132M2-8 |
3 |
7.8 |
710 |
81.5 |
0.72 |
6.0 |
2.0 |
2.0 |
78 | ||||||
|
YA160M1-8 |
4 |
10.2 |
720 |
84 |
0.71 |
6.0 |
2.0 |
2.0 |
116 | ||||||
|
YA160M2-8 |
5.5 |
13.3 |
720 |
85 |
0.74 |
6.0 |
2.0 |
2.0 |
118 | ||||||
|
YA160L-8 |
7.5 |
17.9 |
720 |
86 |
0.74 |
5.5 |
2.0 |
2.0 |
145 | ||||||
|
YA180L-8 |
11 |
24.8 |
730 |
87.5 |
0.77 |
6.0 |
1.7 |
2.0 |
146 | ||||||
|
YA200L1-8 |
－ |
15 |
－ |
34.1 |
730 |
88.0 |
0.76 |
6.0 |
1.8 |
2.0 |
250 | ||||
|
YA225S-8 |
－ |
18.5 |
－ |
41.3 |
735 |
89.5 |
0.76 |
6.0 |
1.7 |
2.0 |
266 | ||||
|
YA225M-8 |
－ |
22 |
－ |
47.6 |
735 |
90.0 |
0.79 |
6.0 |
1.8 |
2.0 |
292 | ||||
|
YA250M-8 |
－ |
30 |
－ |
63.0 |
740 |
90.5 |
0.80 |
6.0 |
1.8 |
2.0 |
405 | ||||
|
YA280S-8 |
－ |
37 |
－ |
78.0 |
740 |
91.0 |
0.79 |
6.0 |
1.8 |
2.0 |
520 | ||||
|
YA280M-8 |
－ |
45 |
－ |
93.0 |
740 |
91.7 |
0.80 |
6.0 |
1.8 |
2.0 |
592 | ||||
資料整理中
YA系列增安型三相異步電動機外形及安裝尺寸（B3)
|
機座號
（中心高） |
極數 |
A |
B |
C |
D |
E |
F |
G |
H |
K |
AB |
AC |
AD |
HD |
L |
|
80 |
2、4 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
|
165 |
175 |
190 |
175 |
290 |
|
90S |
2、4、6 |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
Ф10 |
180 |
195 |
195 |
195 |
315 |
|
90L |
125 |
340 | |||||||||||||
|
100L |
160 |
140 |
63 |
28 |
60 |
24 |
100 |
Ф12 |
205 |
215 |
220 |
245 |
380 | ||
|
112M |
190 |
140 |
70 |
112 |
245 |
240 |
230 |
270 |
400 | ||||||
|
132S |
2、4、6、8 |
216 |
140 |
89 |
38 |
80 |
10 |
33 |
132 |
280 |
275 |
250 |
320 |
475 | |
|
132M |
178 |
515 | |||||||||||||
|
160M |
254 |
210 |
108 |
42 |
110 |
12 |
37 |
160 |
Ф15 |
330 |
335 |
280 |
390 |
605 | |
|
160L |
254 |
650 | |||||||||||||
|
180M |
279 |
241 |
121 |
48 |
14 |
42.5 |
180 |
335 |
380 |
300 |
430 |
670 | |||
|
180L |
279 |
710 | |||||||||||||
|
200L |
318 |
305 |
133 |
55 |
16 |
49 |
200 |
Ф19 |
395 |
420 |
340 |
475 |
775 | ||
|
225S |
4.8 |
365 |
286 |
149 |
60 |
140 |
18 |
53 |
225 |
435 |
475 |
380 |
530 |
820 | |
|
225M |
2 |
311 |
55 |
110 |
16 |
49 |
815 | ||||||||
|
4、6、8 |
60 |
140 |
18 |
53 |
845 | ||||||||||
|
250M |
2 |
406 |
349 |
168 |
250 |
490 |
515 |
445 |
575 |
930 | |||||
|
4、6、8 |
65 |
58 | |||||||||||||
|
280S |
2 |
457 |
368 |
190 |
280 |
Ф24 |
550 |
580 |
470 |
640 |
1000 | ||||
|
4、6、8 |
75 |
20 |
67.5 | ||||||||||||
|
280M |
2 |
419 |
65 |
18 |
58 |
1050 |
Y系列增安型三相異步電動機外形及安裝尺寸（B5）
|
機座號 |
極數 |
極數 |
D |
E |
F |
G |
M |
N |
P |
S |
凸緣孔數 |
AC |
AD |
HE |
L |
|
80 |
FF165 |
2、4 |
19 |
40 |
6 |
15.5 |
165 |
130 |
200 |
12 |
4 |
175 |
190 |
185 |
290 |
|
90S |
2、4、6 |
24 |
50 |
8 |
20 |
195 |
195 |
195 |
315 | ||||||
|
90L |
340 | ||||||||||||||
|
100L |
FF215 |
28 |
60 |
24 |
215 |
180 |
250 |
15 |
215 |
220 |
245 |
380 | |||
|
112M |
240 |
230 |
270 |
400 | |||||||||||
|
132S |
FF265 |
2、4、6、8 |
38 |
80 |
10 |
33 |
265 |
230 |
300 |
275 |
250 |
320 |
475 | ||
|
132M |
515 | ||||||||||||||
|
160M |
FF300 |
42 |
110 |
12 |
37 |
300 |
250 |
350 |
19 |
335 |
280 |
390 |
605 | ||
|
160L |
650 | ||||||||||||||
|
180M |
48 |
14 |
42.5 |
380 |
300 |
430 |
670 | ||||||||
|
180L |
710 | ||||||||||||||
|
200L |
FF350 |
55 |
16 |
49 |
350 |
300 |
400 |
420 |
340 |
480 |
775 | ||||
|
225S |
FF400 |
4、8 |
60 |
140 |
18 |
53 |
400 |
350 |
450 |
8 |
475 |
380 |
535 |
820 | |
|
225M |
2 |
55 |
110 |
16 |
49 |
815 | |||||||||
|
4、6、8 |
60 |
140 |
18 |
53 |
845 |
一、概述
YA系列增安型中型三相導步電動機，適合于含有爆炸性氣體環境中使用，Ⅱ類電氣設備的允許最高表面溫度為T1（450℃）、T2（300℃）等，是為石油、化工、煤炭等行業加氫壓縮機配套的產品。
訪產品嚴橋執行國家標準GB755—1987《旋轉電機基本技術要求》。電機防爆性能符合GB3836．1—1983《爆炸性環境用防爆電氣設備 通用要求》及GB3836．3—1983《爆炸性環境用防爆電氣設備 增安型電氣設備“e”》的規定。
電壓6kV；頻率為50Hz；運行方式為連續運行工作（S1）；環境溫度—21～+40℃，海拔不超過1000m；F級絕緣；防護等級IP44、IP54、IPW54；冷卻方式：對H355機座號，為不帶內循環通風的自扇冷卻IC141方式；對H400機座號及以上，不帶內循環的自扇冷卻IC151方式。
型號含義
二、結構簡介
YA第增安型中型電動機采用鋼板焊接箱式機座，有足夠的強度，定子鐵心用DW465-50優質冷軋無取向硅鋼片疊成，具有高導磁、低損耗等特點。
對H355～450、H630中心高基本安裝型式為B3型，其中H355及H400中心高可制成V1型，對H630中心高也可制成IM7211型或IM7311型。
H355～450、H630中心高，采用滾動軸承，帶注排潤滑油裝置，其中H630中心高，也可制成座式滑動軸承結構，帶油環自潤滑。如用戶需要，滾動軸承結構中，H450-2極高速電動機亦可制成稀油潤滑裝置。
|
中心高 |
額定功率/kW |
額定電流/A |
效 率
（%） |
功率因數 |
堵轉轉矩 |
最大轉矩 |
堵轉電流 |
|
額定轉矩 |
額定轉矩 |
額定電流 |
同步轉速 3000r/min
|
355M1-2 |
160 |
|
93 |
0．87 |
1．0 |
2．0 |
7．0 |
|
355M2-2 |
185 |
| |||||
|
400S1-2 |
200 |
23．8 | |||||
|
400S2-2 |
220 |
26．2 | |||||
|
400M1-2 |
250 |
29．8 | |||||
|
400M2-2 |
280 |
33．3 | |||||
|
450S1-2 |
315 |
36．6 |
94 |
0．88 |
1．0 |
2．0 |
6．5 |
|
450S2-2 |
355 |
41．2 | |||||
|
400M1-2 |
400 |
46．5 | |||||
|
400M2-2 |
450 |
52．9 |
同步轉速1500r/min
|
355M1-4 |
160 |
|
93 |
0.87 |
1.0 |
2.0 |
7.0 |
|
355M2-4 |
185 |
| |||||
|
400S1-4 |
200 |
23.8 | |||||
|
400S2-4 |
220 |
26.2 | |||||
|
400M1-4 |
250 |
29.8 | |||||
|
400M2-4 |
280 |
33.3 |
同步轉速1500r/min
|
450S1-4 |
315 |
36.6 |
94 |
0.88 |
1.0 |
2.0 |
6.5 |
|
450S2-4 |
355 |
41.8 | |||||
|
450M1-4 |
400 |
46.5 | |||||
|
450M2-4 |
450 |
52..3 |
同步轉速1000r/min
|
400S1-6 |
160 |
|
92.5 |
0.84 |
1.0 |
2.0 |
6.5 |
|
400S2-6 |
185 |
22.9 |
92.5 | ||||
|
400M1-6 |
200 |
24.8 |
92.5 | ||||
|
400M2-6 |
220 |
27.3 |
92.5 | ||||
|
450S1-6 |
250 |
30.8 |
92.5 |
6.0 | |||
|
450S2-6 |
280 |
34.5 |
93 | ||||
|
450M1-6 |
315 |
38.8 |
93 | ||||
|
450M2-6 |
355 |
43.7 |
93 |
同步轉速750r/min
|
400M1-8 |
160 |
20.8 |
90.5 |
0.80 |
1.0 |
1.8 |
6.0 |
|
400M2-8 |
185 |
24.1 |
90.5 | ||||
|
450S1-8 |
200 |
25.9 |
93 | ||||
|
450S2-8 |
220 |
28.5 |
93 | ||||
|
450M1-8 |
250 |
32.3 |
93 | ||||
|
450M2-8 |
280 |
36.2 |
93 |
同步轉速600r/min
|
450S1-10 |
160 |
12.5 |
92.5 |
0.74 |
1.0 |
1.8 |
5.5 |
|
450S2-10 |
185 |
26 |
92.5 | ||||
|
450M1-10 |
200 |
28.1 |
92.5 | ||||
|
450M2-10 |
220 |
30.9 |
92.5 | ||||
|
630S-10 |
200 |
28.0 |
91.5 |
0.75 |
| ||
|
630M1-10 |
220 |
30.8 |
91.5 | ||||
|
630M2-10 |
250 |
35.1 |
91.5 |
YA355～450外形尺寸圖（B3）
|
中心高H |
極 數 |
A |
B |
C |
D |
E |
F |
G |
K |
L |
AB |
HD |
BB |
AD | |
|
355 |
M |
2極 |
610 |
800 |
254 |
75 |
140 |
20 |
67．5 |
ф28 |
1730 |
760 |
1100 |
|
600 |
|
4極以上 |
90 |
170 |
25 |
81 |
1670 | ||||||||||
|
400 |
S |
2極 |
686 |
900 |
280 |
75 |
140 |
20 |
67．5 |
ф35 |
1780 |
850 |
1160 |
1160 |
550 |
|
4極以上 |
90 |
170 |
25 |
81 |
1800 | ||||||||||
|
M |
2極 |
686 |
1000 |
280 |
75 |
140 |
20 |
67．5 |
ф35 |
1800 |
850 |
1160 |
1260 | ||
|
4極以上 |
90 |
170 |
25 |
81 |
1900 | ||||||||||
|
450 |
S |
2極 |
750 |
900 |
315 |
85 |
170 |
22 |
76 |
ф35 |
1900 |
900 |
1255 |
1160 |
550 |
|
4極 |
100 |
210 |
28 |
90 |
2060 | ||||||||||
|
6極以上 |
|
|
|
|
| ||||||||||
|
M |
2極 |
750 |
1000 |
315 |
85 |
170 |
22 |
76 |
ф35 |
2110 |
900 |
1255 |
1260 |
550 | |
|
4極 |
100 |
210 |
28 |
90 |
2180 | ||||||||||
|
6極以上 |
|
|
|
|
| ||||||||||
注：此表為佳木斯電機廠數據

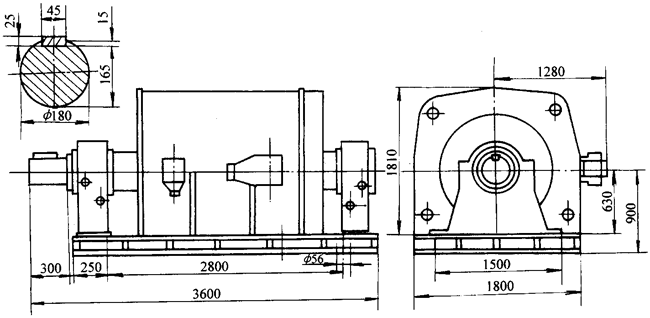

YA630S、M外形尺寸圖（B3）

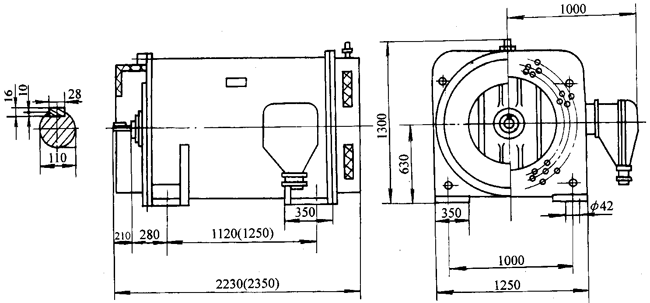

YA630外形尺寸圖（IM7211）
YAe560外形尺寸圖
|
型 號 |
A |
B |
HC |
D |
E |
F |
G |
H |
K |
AB |
L |
C |
|
YAe560-670-14 |
1000 |
1400 |
2165 |
130 |
250 |
36 |
118 |
560 |
ф42 |
1990 |
2775 |
500 |
|
YAe560-640-12 |
1000 |
1400 |
1940 |
130 |
250 |
32 |
119 |
560 |
ф42 |
1845 |
2780 |
500 |
| 頁次：1/1 每頁10條 共7條信息 分頁：[1] |
