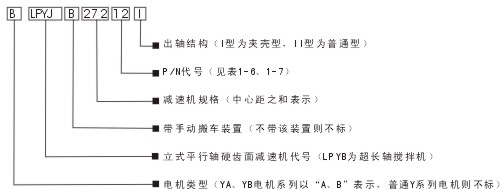

LPYB/J、LSYB/J型立式平行軸硬齒面齒輪減速機特點

LPYB/J、LSYB/J型立式平行軸硬齒面齒輪減速機外形尺寸

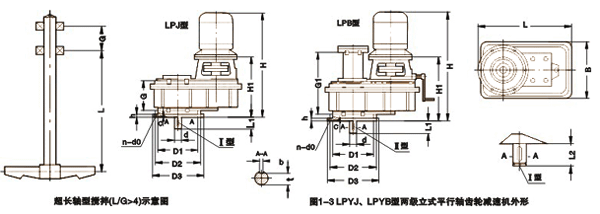

LPYJ、LPYB型兩級減速機外形尺寸

型號	軸徑 d	外形尺寸						安裝尺寸												重量
型號	軸徑 d	B	L	H₁	H	G	G₁	D₁(H₈)	D₂	D₃	C	h	n	d₀	F	L₁	L₂	b	t	重量
171	40k6	315	425	375	665-710	145	280	200	230	260	5	16	6	14	5	82	85	12	35	105
192	50k6	340	440	405	695-773	170	330	230	260	290	5	16	6	14	5	82	100	14	44.5	150
215	65k6	360	470	420	719-1005	185	350	230	260	290	5	16	6	14	5	100	130	18	58	160
240	80m6	400	520	520	926-1160	195	380	270	305	340	6	16	8	18	8	130	145	22	71	220
272	95m6	410	550	560	1030-1255	220	420	320	360	400	6	22	8	18	8	150	170	25	86	310
305	100m6	450	600	605	1150-1300	250	500	320	360	400	6	22	8	18	8	160	170	28	90	330
375	110m6	600	730	700	1455-1663	300	580	455	500	580	8	30	8	23	8	170	200	28	100	440
500	130m6	720	1050	955	1755-1935	400	820	640	720	780	10	35	12	23	8	180	225	32	119	980
600	160m6	850	1240	1065	1950-2355	500	930	700	760	820	10	40	12	23	10	200	225	40	147	1610

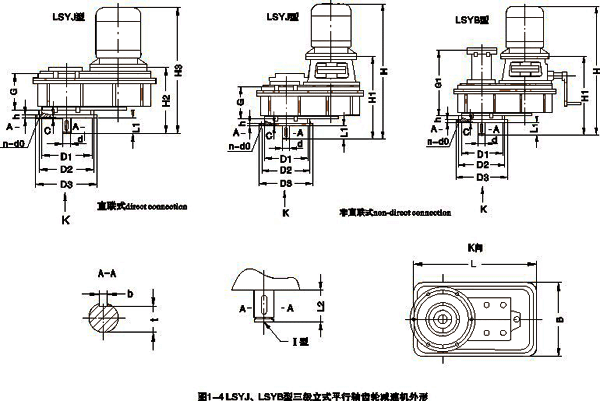

LSYB/J型三級減速機外形尺寸

型號	軸徑 d	外形尺寸						安裝尺寸											重量 kg
型號	軸徑 d	B	L	H1	H2	H3	H	G	G1	D1(H8)	D2	D3	n-d0	C	h	L1	L2	b/t	重量 kg
311	50	330	580	480	300	550-600	730-770	175	350	230	260	290	6-φ14	5	16	80	100	14/44.5	100
352	65	360	620	500	320	570-660	750-840	195	400	270	305	340	8-φ18	6	16	100	130	18/58	155
395	80	400	640	550	360	680-800	870-990	225	450	320	360	400	8-φ18	6	22	130	145	22/71	188
440	95	460	780	600	390	750-1000	960-1200	260	500	380	430	480	8-φ18	8	22	150	170	25/86	440
496	110	500	930	660	420	1020-1125	1260-1365	330	580	455	520	580	8-φ23	8	28	170	200	28/100	736
555	130	580	1050	800	500	1100-1410	1400-1710	360	650	530	590	640	12-φ23	10	30	180	225	32/119	1155
830	160	790	1290	1072	685	1390-2105	1672-2492	395	930	700	760	820	12-φ23	10	40	200	255	40/147	2170
1050	180	1020	1620	1260	750	1500-2150	1870-2620	480	830	840	940	1010	16-φ26	10	45	240	285	45/165	4460
1250	200	1210	1860	4530	980	1770-2280	2220-2730	570	1100	1000	1100	1200	16-φ26	10	45	270	325	45/185	5200
1450	220	1220	2190	1417	980	1580-2400	2122-2967	625	1300	1200	1350	1500	24-φ26	10	50	300	355	50/203	7450

LPYB/J、LSYB/J型立式平行軸硬齒面齒輪減速機技術參數

LPYB/J型兩級減速機基本參數和規格系列表

公稱傳動比i	22	20	18	16	22	20	18	16	14	12	22	20	18	16	14	12	11	10	9	8	7	6	5	4.5	型號	許用 M(N.W)
出軸轉速	34	38	42	46	45	50	56	62	71	83	68	75	83	94	105	125	135	150	165	188	215	250	300	330
輸入轉速	750				1000						1500
功率	p/n代號
0.55	X	X	X	X	X	X	X	X	X	X	1	4	7	11	1	3	6	9	13	17	21	26	31	37	LPYB/J171	110
0.75	X	X	X	X	1/6	2/6	3/6	5/6	7/6	9/6	2	5	8	12	2	4	7	10	14	18	22	27	32	38
1.1	X	X	X	X	1/6	3/6	4/6	6/6	8/6	10/6	3	6	9	13	15	5	8	11	15	19	23	28	33	39
1.5	X	X	X	X	2/6	4/6	5/6	7/6	9/6	11/6	1	3	101	14	16	17	19	12	16	20	24	29	34	40
2.2	1/8	4/8	7/8	11/8	1/6	5/6	6/6	8/6	10/6	12/6	2	4	6	8	11	18	20	21	23	25	25	30	35	41
3	2/8	5/8	8/8	12/8	2/6	6/6	9/6	12/6	16/6	20/6	1	5	7	9	12	14	16	22	24	26	27	29	36	42
4	3/8	6/8	9/8	13/8	3/6	7/6	10/6	13/6	17/6	21/6	2	5	8	10	13	15	17	19	21	23	28	30	31	33	LPYB/J192	200
5.5	1/8	2/8	10/8	14/8	4/6	8/6	11/6	14/6	18/6	22/6	3	6	9	11	14	17	18	20	22	24	26	28	32	34	LPYB/J192	200
7.5	1/8	3/8	4/8	5/8	1/6	2/6	3/6	15/6	19/6	23/6	4	7	10	12	15	18	21	24	28	25	27	29	30	32	LPYB/J215	450
11	2/8	3/8	4/8	6/8	1/6	3/6	4/6	5/6	6/6	7/6	1	2	4	13	16	19	22	25	29	33	37	41	31	33	LPYB/J215	450
15	1/8	3/8	5/8	7/8	2/6	4/6	5/6	7/6	10/6	13/6	1	3	5	6	8	20	23	26	30	34	38	42	46	51	LPYB/J240	1430
18.5	2/8	4/8	5/8	7/8	1/6	3/6	6/6	8/6	11/6	14/6	2	4	6	7	9	11	13	27	31	35	39	43	47	52
22	1/8	4/8	6/8	8/6	2/6	4/6	5/6	9/6	12/6	15/6	3	5	7	9	10	12	14	15	32	36	40	44	48	53
30	2/8	5/8	7/8	10/8	1/6	4/6	6/6	7/6	8/6	10/6	1	3	8	10	11	13	16	16	17	18	20	45	49	54
37	3/8	6/8	8/8	11/8	2/6	5/6	8/6	11/6	9/6	11/6	2	4	5	7	12	14	17	19	22	19	21	23	50	55
45	1/8	4/8	9/8	12/8	3/6	6/6	9/6	12/6	14/6	17/6	1	4	6	8	9	15	18	20	23	25	22	24	25	27	LPYB/J272	2210
55	2/8	5/8	8/8	11/8	1/6	7/6	10/6	13/6	15/6	18/6	2	5	7	10	10	11	12	21	24	26	27	29	26	28	LPYB/J272	2210
75	3/8	6/8	9/8	12/8	2/6	5/6	8/6	12/6	16/6	19/6	3	6	8	11	13	16	13	14	15	17	28	30	32	35	LPYB/J305	3900
90	X	7/8	10/8	13/8	3/6	6/6	9/6	13/6	16/6	20/6	1	5	9	12	14	17	20	23	16	18	19	31	33	36
110	X	X	X	14/8	4/6	7/6	10/6	14/6	17/6	21/6	2	6	9	14	15	18	21	24	27	31	20	21	34	37
132	X	X	X	X	X	X	11/6	15/6	18/6	22/6	3	7	10	15	20	19	22	25	28	32	36	22	23	25	LPYB/J375	5980
160	X	X	X	X	X	X	X	X	19/6	23/6	4	8	11	16	21	26	32	26	29	33	37	41	24	26	LPYB/J375	5980
185	X	X	X	X	X	X	X	X	X	X	X	X	12	17	22	27	33	39	30	34	38	42	46	52	LPYB/J500	11700
200	X	X	X	X	X	X	X	X	X	X	X	X	13	18	23	28	34	40	46	35	39	43	47	53
220	X	X	X	X	X	X	X	X	X	X	X	X	X	19	24	29	35	41	47	52	40	44	48	54
250	X	X	X	X	X	X	X	X	X	X	X	X	X	X	25	30	36	42	48	53	57	45	49	55
280	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	31	37	43	49	54	58	61	50	56
315	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	38	44	50	55	59	62	51	57
360	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	45	51	56	60	63	64	65	LPYB/J600	26000

LSYB/J型三有減速機基本參數和規格系列表

轉動比i	45	40	35.5	31.5	45	40	35.5	31.5	28	25	22.4	20	18	16	14	減速機型號	許用扭矩 (出軸)(N.M)
出軸轉數	22	25	28	31	33	37	42	42	53	60	67	75	83	93	105
輸入轉數	6極電機(1000rpm)				4極電機(1500rpm)
功率	P/N
0.55	X	X	X	X	1	2	3	5	7	9	12	15	18	22	26	LSYB/J311	195
0.75	1/6	3/6	5/6	8/6	1	4	4	6	8	10	13	16	19	23	27
1.1	2/6	4/6	6/6	9/6	2	5	7	10	13	11	14	17	20	24	28
1.5	1/6	4/6	7/6	10/10	3	6	8	11	14	16	19	22	21	25	29
2.2	2/6	5/6	7/6	10/6	1	4	9	12	15	17	20	23	26	29	32	LSYB/J352	570
3	3/6	6/6	8/6	11/6	2	5	8	11	14	18	21	24	27	30	33
4	1/6	3/6	9/6	12/6	3	6	9	12	15	18	21	25	28	31	34
5.5	2/6	4/6	5/6	7/6	1	7	10	13	16	19	22	24	27	30	35
7.5	1/6	3/6	6/6	8/6	2	3	5	7	17	20	23	25	28	31	33	LSYB/J395	1680
11	2/6	4/6	5/6	7/6	1	4	6	8	9	11	13	26	29	32	34
15	1/6	4/6	6/6	8/6	2	3	5	8	10	12	14	16	18	21	35
18.5	2/6	5/6	7/6	9/6	1	4	6	9	11	13	15	17	19	22	24	LSYB/J440	3090
22	3/6	6/6	8/6	10/6	2	4	7	10	12	14	16	18	20	23	25
30	1/6	4/6	7/6	11/6	3	5	7	9	12	15	17	19	21	24	26
37	2/6	5/6	8/6	11/6	1	6	8	10	13	15	18	20	22	25	27	LSYB/J496	5780
45	3/6	6/6	9/6	12/6	2	5	9	11	14	16	19	21	23	26	28
55	1/6	2/6	10/6	13/6	3	6	10	13	16	17	20	22	24	26	29
75	1/6	3/6	4/6	5/6	4	7	11	14	17	20	24	23	25	27	29	LSYB/J550	10600
90	2/6	3/6	4/6	6/6	1	8	12	15	18	21	25	29	33	28	30	LSYB/J550	10600
110	1/6	2/6	5/6	6/6	2	3	4	5	19	22	26	30	34	39	45	LSYB/J830	26000
132	X	3/6	4/6	7/6	1	2	3	6	7	23	27	31	35	40	46
160	X	X	5/6	6/6	1	3	4	5	8	9	28	32	36	41	47
185	X	X	X	X	2	4	6	6	8	10	11	14	37	42	48
200	X	X	X	X	X	5	7	7	9	10	12	15	38	43	49
220	X	X	X	X	X	X	8	9	11	11	13	16	17	44	50
250	X	X	X	X	X	X	X	10	12	12	13	15	18	19	51
280	X	X	X	X	X	X	X	X	13	14	14	16	18	20	21	LSYB/J1050	35100
315	X	X	X	X	X	X	X	X	X	15	16	17	19	20	22	LSYB/J1050	35100
360	X	X	X	X	X	X	X	X	X	X	17	18	19	21	22	LSYB/J1250	45500
											LSYB/J1450						59500
