一、概述
YDT系列電動機是Y系列電動機的派生產品。YDT系列電動機可以在其不同的極數下功率的分配，按照風機、水泵流量（風量）與轉速成比例關系，即轉矩按轉速的平方遞減，軸功率與轉速的三次方關系分配設計。
該電動機適合用于拖動風量流量周期性變化連續運行的風機、水泵，具有顯著的節能效果。電動機可廣泛用于紡織、印染、冶金、礦山、化工、建筑等行業。
電動機的中心高為H80～315mm。速比有4/2、6/4、8/4、8/6、12/6、8/6/4和12/8/6等。
電動機具有噪聲低、壽命長、經久耐用等優點。
工作條件 額定電壓為380V；額定頻率為50Hz；海拔不超過1000m；空氣溫度適應-15～=40℃；在最低溫度不高于25℃時；濕度為95％；電動機可額定連續運行（S1）。

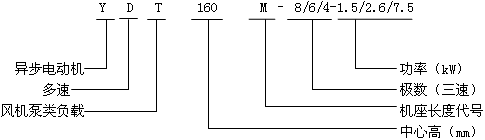

型號含義
二、結構簡介
YDT系列電動機外形及安裝尺寸與Y系列（IP44）電動機一致，符合IEC標準。外殼防護等級為IP44或IP54，按濕熱環境制造，適合用于多塵或水土飛濺以及比較濕的場所。
|
型 號 |
額定功率
/kW |
滿載時 |
堵轉轉矩 |
堵轉轉矩 |
最大轉矩 |
重量
/kg | |||
|
電 流
/A |
轉 速
/（r/min） |
效 率
（％） |
功 率
因 數 |
額定轉矩 |
額定轉矩 |
額定轉矩 | |||
|
YDT80-4/2 |
0.17/0.75 |
0.65/1.86 |
1400/2750 |
— |
— |
5.5/7.5 |
1.4/2.0 |
1.8 |
17 |
|
YDT80-4/2 |
0.25/0.95 |
0.87/2.33 |
1395/2750 |
66/74 |
0.65/0.81 |
5.5/7.5 |
1.4/2.0 |
1.8 |
18 |
|
YDT90S-4/2 |
0.3/1.4 |
0.85/3.43 |
1410/2830 |
73/74 |
0.72/0.82 |
5.5/7.5 |
1.4/2.0 |
1.8 |
22 |
|
YDT90L-4/2 |
0.4/1.9 |
1.08/4.27 |
1410/2830 |
74/77 |
0.73/0.86 |
5.5/7.5 |
1.4/2.0 |
1.8 |
27 |
|
YDT100L2-4/2 |
0.65/2.5 |
1.8/5.25 |
1430/2850 |
74/82 |
0.72/0.87 |
5.5/7.5 |
1.4/2.0 |
1.8 |
33 |
|
YDT100L2-4/2 |
0.80/3.1 |
2.17/6.39 |
1430/2850 |
76/82 |
0.72/0.87 |
5.5/7.5 |
1.4/2.0 |
1.8 |
38 |
|
YDT112M-4/2 |
1.1/4.4 |
2.42/9.15 |
1445/2890 |
80/82 |
0.74/0.88 |
5.5/7.5 |
1.4/2.0 |
1.8 |
51 |
|
YDT132S-4/2 |
1.4/5.9 |
3.5/11.68 |
1450/2855 |
80/83 |
0.74/0.91 |
5.5/7.5 |
1.3/1.9 |
1.8 |
68 |
|
YDT132M1-4/2 |
2/8 |
4.65/15.29 |
1450/2880 |
83/85 |
0.77/0.91 |
5.5/7.5 |
1.3/1.9 |
1.8 |
78 |
|
YDT160M-4/2 |
2.8/12.5 |
6.56/24.04 |
1460/2920 |
85/86 |
0.75/0.91 |
5.5/7.5 |
1.3/1.9 |
1.8 |
123 |
|
YDT160L-4/2 |
3.8/16.5 |
8.64/30.98 |
1455/2920 |
86/87 |
0.76/0.91 |
5.5/7.5 |
1.3/1.9 |
1.8 |
144 |
|
YDT90S-6/4 |
0.32/1.1 |
1.09/2.86 |
920/1410 |
66/73 |
0.66/0.78 |
6.0/7.0 |
1.6/1.8 |
1.8 |
23 |
|
YDT90L-6/4 |
0.45/1.4 |
1.43/3.43 |
930/1400 |
70/75 |
0.66/0.81 |
6.0/7.0 |
1.6/1.8 |
1.8 |
25 |
|
YDT100L1-6/4 |
0.7/2.2 |
2.15/5.22 |
940/1440 |
73/80 |
0.66/0.79 |
6.0/7.0 |
1.6/1.8 |
1.8 |
34 |
|
YDT100L2-6/4 |
0.9/2.5 |
2.86/5.96 |
940/1440 |
74/81 |
0.67/0.78 |
6.0/7.0 |
1.6/1.8 |
1.8 |
38 |
|
YDT112M-6/4 |
1.1/3.2 |
3.09/7.03 |
950/1480 |
78/82 |
0.68/0.82 |
6.0/7.0 |
1.6/1.8 |
1.8 |
49 |
|
YDT132S-6/4 |
1.5/4.7 |
4.06/10 |
970/1440 |
81/84 |
0.68/0.83 |
6.0/7.0 |
1.6/1.8 |
1.8 |
63 |
|
YDT132M1-6/4 |
2.2/6.7 |
5.7/13.71 |
970/1450 |
83/85 |
0.69/0.85 |
6.0/7.0 |
1.6/1.8 |
1.8 |
80 |
|
YDT160M-6/4 |
3.1/9.5 |
7.91/19.3 |
970/1450 |
83/87 |
0.69/0.84 |
7.0/7.5 |
1.6/1.8 |
1.8 |
119 |
|
YDT160L-6/4 |
4/12 |
10/24.36 |
970/1460 |
83/88 |
0.69/0.84 |
7.0/7.5 |
1.6/1.8 |
1.8 |
147 |
|
YDT180M-6/4 |
5.1/15.5 |
12.06/31.4 |
970/1465 |
81/87 |
0.72/0.84 |
7.0/7.5 |
1.5/1.5 |
1.8 |
192 |
|
YDT180L-6/4 |
6.2/18.5 |
14.33/37.14 |
970/1465 |
81/87 |
0.74/0.85 |
7.0/7.5 |
1.5/1.5 |
1.8 |
224 |
|
YDT200L1-6/4 |
8.7/26 |
19.12/51.48 |
975/1460 |
83/88 |
0.77/0.85 |
7.0/7.5 |
1.5/1.5 |
1.8 |
280 |
|
YDT225S-6/4 |
11/33 |
21.83/63.11 |
980/1470 |
84/89 |
0.84/0.86 |
7.0/7.5 |
1.5/1.5 |
1.8 |
300 |
|
YDT225M-6/4 |
11/37 |
25.56/73.95 |
980/1470 |
85/90 |
0.85/0.86 |
7.0/7.5 |
1.5/1.5 |
1.8 |
340 |
|
YDT250M-6/4 |
15/47 |
30.69/86.93 |
980/1480 |
85/90 |
0.87/0.89 |
7.0/7.5 |
1.5/1.5 |
1.8 |
497 |
|
YDT280S-6/4 |
18.5/55.0 |
35.83/102.89 |
985/1480 |
85/90 |
0.86/0.88 |
7.0/7.5 |
1.5/1.5 |
1.8 |
614 |
|
YDT280M1-6/4 |
25.0/70.0 |
47.6/130.39 |
985/1480 |
87/91 |
0.87/00.88 |
7.0/7.5 |
1.5/1.5 |
1.8 |
710 |
|
YDT280M2-6/4 |
28.0/84.0 |
53.63/155.45 |
985/1480 |
87/91 |
0.87/0.88 |
7.0/7.5 |
1.5/1.5 |
1.8 |
710 |
|
YDT315S-6/4 |
32.0/8/95.0 |
66.7/182.15 |
987/1486 |
89/91 |
0.79/0.86 |
7.0/7.5 |
1.5/1.5 |
1.8 |
895 |
|
YDT315M-6/4 |
38.0/115 |
79.75/217.17 |
987/1486 |
90/92 |
0.78/0.86 |
7.0/7.5 |
1.5/1.5 |
1.8 |
1025 |
|
YDT315L1-6/4 |
45.0/135 |
91.92/255.23 |
987/1486 |
90/92 |
0.8/0.86 |
7.0/7.5 |
1.5/1.5 |
1.8 |
1040 |
|
YDT315L2-6/4 |
55.0/160 |
111.95/302.9 |
987/1486 |
91/93 |
0.8/0.86 |
7.0/7.5 |
1.5/1.5 |
1.8 |
1155 |
|
YDT90S-8/4 |
0.22/1.00 |
0.92/2.44 |
670/1400 |
57/73 |
0.62/0.82 |
5.0/7.5 |
1.5/1.9 |
1.8 |
25 |
|
YDT90L-8/4 |
0.30/1.30 |
1.18/3.10 |
670/1400 |
60/75 |
0.63/0.82 |
5.0/7.5 |
1.5/1.9 |
1.8 |
25 |
|
YDT100L1-8/4 |
0.55/2.00 |
2.07/4.68 |
705/1410 |
65/80 |
0.61/0.8 |
5.0/7.5 |
1.5/1.9 |
1.8 |
38 |
|
YDT100L2-8/4 |
0.65/2.40 |
2.37/5.48 |
705/1410 |
66/80 |
0.61/0.81 |
5.0/7.5 |
1.5/1.9 |
1.8 |
35 |
|
YDT112M-8/4 |
0.90/3.20 |
3.24/7.40 |
710/1430 |
71/83 |
0.59/0.78 |
5.0/7.5 |
1.2/2.0 |
1.8 |
49 |
|
YDT132S-8/4 |
1.10/4.50 |
3.68/9.68 |
720/1445 |
75/84 |
0.59/0.82 |
5.0/7.5 |
1.2/2.0 |
1.8 |
63 |
|
YDT132M1-8/4 |
1.50/6.30 |
4.84/13.13 |
720/1450 |
78/85 |
0.59/0.83 |
5.0/7.5 |
1.2/2.0 |
1.8 |
80 |
|
YDT16M-8/4 |
2.00/8.90 |
5.34/18.14 |
730/1450 |
82/85 |
0.67/0.85 |
5.0/7.5 |
1.2/2.0 |
1.8 |
119 |
|
YDT160L-8/4 |
2.70/12.0 |
6.9/23.47 |
730/1450 |
84/86 |
0.67/0.86 |
5.0/7.5 |
1.2/2.0 |
1.8 |
147 |
|
YDT180M-8/4 |
4.00/16.0 |
10.83/31.77 |
730/1470 |
84/88 |
0.65/0.85 |
5.0/7.5 |
1.2/2.0 |
1.8 |
254 |
|
YDT180L-8/4 |
5.00/29.0 |
13.31/38.56 |
730/1470 |
85/89 |
0.66/0.85 |
5.0/7.5 |
1.2/2.0 |
1.8 |
254 |
|
YDT200L1-8/4 |
7.50/29.0 |
19.57/56.8 |
735/1470 |
87/90 |
0.66/0.85 |
5.0/7.5 |
1.3/2.0 |
1.8 |
270 |
|
YDT225M-8/4 |
9.50/40.0 |
25.43/74.57 |
735/1470 |
88/91 |
0.64/0.88 |
5.0/7.5 |
1.3/2.0 |
1.8 |
340 |
|
YDT250M-8/4 |
14.5/52 |
36.97/97.29 |
740/1480 |
88/91 |
0.66/0.87 |
5.0/7.5 |
1.3/2.0 |
1.8 |
479 |
|
YDT280S-8/4 |
17/65 |
41.73/122.74 |
740/1480 |
89/91 |
0.68/0.87 |
5.0/7.5 |
1.3/2.0 |
1.8 |
584 |
|
YDT280M1-8/4 |
18.5/75 |
43.86/137.89 |
740/1485 |
90/91 |
0.7/0.88 |
5.0/7.5 |
1.3/2.0 |
1.8 |
730 |
|
YDT315S-8/4 |
25/92 |
58.71/174.76 |
740/1486 |
90/91 |
0.7/0.86 |
5.0/7.5 |
1.3/2.0 |
1.8 |
895 |
|
YDT315M-8/4 |
30/110 |
70.11/208.26 |
740/1486 |
91/92 |
0.7/0.86 |
5.0/7.5 |
1.3/2.0 |
1.8 |
1025 |
|
YDT315L1-8/4 |
36/135 |
83.99/253.26 |
739/1486 |
91/92 |
0.7/0.87 |
5.0/7.5 |
1.3/2.0 |
1.8 |
1040 |
|
YDT315L2-8/4 |
41/155 |
94.72/287.97 |
739/1486 |
91/92 |
0.71/0.87 |
5.0/7.5 |
1.6/1.8 |
1.8 |
1155 |
|
YDT90S-8/6 |
0.25/0.65 |
1.22/2.24 |
675/930 |
52/65 |
0.58/0.63 |
6.0/7.0 |
1.6/1.8 |
1.8 |
23 |
|
YDT90L-8/6 |
0.35/0.8 |
1.58/2.87 |
680/920 |
56/67 |
0.58/0.62 |
6.0/7.0 |
1.6/1.8 |
1.8 |
25 |
|
YDT100L1-8/6 |
0.55/1.3 |
2.23/4.07 |
710/950 |
62/71 |
0.58/0.66 |
6.0/7.0 |
1.6/1.8 |
1.8 |
38 |
|
YDT100L2-8/6 |
0.75/1.6 |
2.86/3.11 |
710/950 |
66/74 |
0.59/0.67 |
6.0/7.0 |
1.6/1.8 |
1.8 |
38 |
|
YDT112M-8/6 |
0.9/2.2 |
3.32/6.0 |
710/950 |
68/77 |
0.59/0.7 |
6.0/7.0 |
1.6/1.8 |
1.8 |
51 |
|
YDT132S-8/6 |
1.2/2.6 |
4.05/6.85 |
725/970 |
73/79 |
0.6/0.71 |
6.0/7.0 |
1.6/1.8 |
1.8 |
63 |
|
YDT132M1-8/6 |
1.6/3.3 |
5.26/7.96 |
730/970 |
76/80 |
0.6/0.76 |
6.0/7.0 |
1.6/1.8 |
1.8 |
80 |
|
YDT132M2-8/6 |
2.2/4.5 |
7.02/10.95 |
730/970 |
77/82 |
0.6/0.75 |
6.0/7.0 |
1.6/1.8 |
1.8 |
80 |
|
YDT160M-8/6 |
3.2/6.5 |
9.43/14.84 |
730/975 |
81/85 |
0.61/0.76 |
6.0/7.0 |
1.6/1.8 |
1.8 |
1.9 |
|
YDT160L-8/6 |
4.5/9 |
12.97/20.21 |
730/980 |
82/86 |
0.62/0.77 |
6.0/7.0 |
1.6/1.8 |
1.8 |
147 |
|
YDT180L-8/6 |
6.5/13 |
17.77/29.07 |
730/980 |
81/86 |
0.65/0.77 |
6.0/7.0 |
1.5/1.5 |
1.8 |
195 |
|
YDT200L1-8/6 |
8.5/17 |
22.08/36.27 |
735/980 |
82/87 |
0.66/0.8 |
6.0/7.0 |
1.5/1.5 |
1.8 |
250 |
|
YDT200L2-8/6 |
11/22 |
27.94/46.48 |
735/980 |
83/87 |
0.68/0.8 |
6.0/7.0 |
1.5/1.5 |
1.8 |
301 |
|
YDT225M-8/6 |
15/30 |
32.07/59.24 |
730/980 |
87/89 |
0.78/0.83 |
6.0/7.0 |
1.5/1.5 |
1.8 |
329 |
|
YDT250M-8/6 |
18/37 |
36.79/70.92 |
730/980 |
87/90 |
0.81/0.86 |
6.0/7.0 |
1.5/1.5 |
1.8 |
439 |
|
YDT280M1-8/6 |
22/45 |
45.03/86.79 |
740/980 |
88/90 |
0.81/0.86 |
6.0/7.0 |
1.5/1.5 |
1.8 |
565 |
|
YDT280M2-8/6 |
28.0/55.0 |
56.48/105.11 |
740/980 |
90/91 |
0.7/0.88 |
6.0/7.0 |
1.3/2.0 |
1.8 |
602 |
|
YDT315S-8/6 |
32.0/65.0 |
64.92/123.03 |
740/980 |
89/91 |
0.81/0.82 |
6.0/7.0 |
1.3/2.0 |
1.8 |
602 |
|
YDT315M-8/6 |
37.0/75.0 |
79.11/145.88 |
740/987 |
90/91 |
0.78/0.84 |
6.0/7.0 |
1.3/2.0 |
1.8 |
895 |
|
YDT315L1-8/6 |
45.0/90.0 |
92.16/173.71 |
740/987 |
91/92 |
0.8/0.85 |
6.0/7.0 |
1.6./1.8 |
1.8 |
1025 |
|
YDT315L2-8/6 |
55.0/110 |
115.06/209.33 |
739/987 |
91/92 |
0.78/0.85 |
6.0/7.0 |
1.6./1.8 |
1.8 |
1040 |
|
YDT225M-12/6 |
66.0/132 |
134.85/251.48 |
739/987 |
91/92 |
0.78/0.85 |
6.0/7.0 |
1.6./1.8 |
1.8 |
115 |
|
YDT250M-12/6 |
4.4/22 |
15.7/44.5 |
490/980 |
84/90 |
0.65/0.83 |
5/6.5 |
1.6./1.8 |
1.8 |
330 |
|
YDT280S-12/6 |
6/30 |
17.2×58.8 |
490/980 |
85/90 |
0.7/0.85 |
5/6.5 |
1.6./1.8 |
1.8 |
430 |
|
YDT280M-12/6 |
7.5/37 |
21.5/72.2 |
490/980 |
— |
— |
5/6.5 |
1.6./1.8 |
1.8 |
570 |
|
YDT112M-8/6/4 |
9/45 |
23.6/84.6 |
490/980 |
— |
— |
5/6.5 |
1.6./1.8 |
1.8 |
670 |
|
YDT132S-8/6/4 |
0.6/0.80/23 |
2.74/3.16/5.88 |
710/955/1440 |
61/65/79 |
0.5/0.57/0.73 |
4.0/6.5/7.5 |
1.3/1.7/2.0 |
1.8 |
51 |
|
YDT132M1-8/6/4 |
0.8/1.10/3.1 |
3.06/3.9/7.14 |
730/970/1455 |
68/71/81 |
0.57/0.6/0.79 |
4.0/6.5/7.5 |
1.3/1.7/2.0 |
1.8 |
68 |
|
YDT160M-8/6/4 |
1.1/1.50/4.5 |
3.92/4.66/9.76 |
730/970/1460 |
72/74/83 |
0.5/0.65/0.82 |
4.0/6.5/7.5 |
1.3/1.7/2.0 |
1.8 |
78 |
|
YDT160L-8/6/4 |
1.5/2.60/7.5 |
4.79/7.33/15.98 |
730/975/1455 |
79/79/84 |
0.5/0.67/0.82 |
4.0/6.5/7.5 |
0.95/1.6/1.8 |
1.8 |
120 |
|
YDT180M-8/6/4 |
2.0/3.50/10.2 |
6.03/9.46/20.69 |
730/976/1460 |
81/81/86 |
0.5/0.68/0.82 |
4.0/6.5/7.5 |
0.95/1.6/1.8 |
1.8 |
147 |
|
YDT180L-8/6/4 |
2.6/4.50/13.0 |
7.72/10.62/24.22 |
735/980/1470 |
80/80/86 |
0.63/0.8/0.9 |
5.5/7.5/8.0 |
0.95/1.6/1.8 |
1.8 |
254 |
|
YDT200L1-8/6/4 |
3.3/6/16 |
9.69/13.56/29.63 |
735/980/1470 |
81/81/87 |
0.63/0.81/0.9 |
5.5/7.5/8.0 |
0.95/1.6/1.8 |
1.8 |
254 |
|
YDT225S-8/6/4 |
4.5/8/22 |
13.23/21.1/53.32 |
740/985/1470 |
82/82/87 |
0.62/0.82/0./ |
5.5/7.5/8.0 |
0.95/1.6/1.8 |
1.8 |
301 |
|
YDT225M-8/6/4 |
5.5/10/28 |
13.43/21.1/53.32 |
740/985/1480 |
85/83/89 |
0.7/0.85/0.88 |
5.5/7.5/8.0 |
1.1/1.7/1.8 |
1.8 |
330 |
|
YDT250M-8/6/4 |
7.5/12/34 |
17.22/24.71/63.11 |
740/985/1480 |
87/83/90 |
0.7/0.86/0.89 |
5.5/7.5/8.0 |
1.1/1.7/1.8 |
1.8 |
360 |
|
YDT280S-8/6/4 |
10/15.5/44 |
22.58/37/98.47 |
740/990/1480 |
88/85/90 |
0.7/0.85/0.92 |
5.5/7.5/8.0 |
1.1/1.7/1.8 |
1.8 |
479 |
|
YDT280M1-8/6/4 |
12/18/55 |
27.33/37/98.47 |
740/990/1485 |
88/85/90 |
0.7/0.85/0.92 |
5.5/7.5/8.0 |
1.1/1.7/1.8 |
1.8 |
650 |
|
YDT315S-8/6/4 |
15/21/66 |
32.79/42.54/116.88 |
740/990/1485 |
89/86/91 |
0.7/0.86/0.92 |
5.5/7.5/8.0 |
1.1/1.7/1.8 |
1.8 |
730 |
|
YDT315M-8/6/4 |
19/27/75 |
43.8/55.27/136.34 |
740/987/1486 |
89/87/90 |
0.7/0.84/0.91 |
5.5/7.5/8.0 |
1.3/1.4/1.8 |
1.8 |
895 |
|
YDT315L1-8/6/4 |
22/32/90 |
50.56/64.79/162 |
740/987/1486 |
90/88/91 |
0.7/0.84/0.91 |
5.5/7.5/8.0 |
1.3/1.4/1.8 |
1.8 |
1025 |
|
YDT315M-8/6/4 |
28/40/115 |
62.47/79.73/264.23 |
739/987/1486 |
90/88/91 |
0.7/0.85/0.91 |
5.5/7.5/8.0 |
1.3/1.4/1.8 |
1.8 |
1045 |
|
YDT315L2-8/6/4 |
35/51/140 |
80.16/101.83/253.64 |
739/987/1486 |
91/89/92 |
0.72/0.84/0.9 |
5.5/7.5/8.0 |
1.3/1.4/1.8 |
1.8 |
115 |
|
YDT200L2-12/8/6 |
2.2/5.5/11 |
7.7/14.2/22.7 |
490/740/980 |
— |
— |
4/6/6.5 |
1/1.8/1.2 |
1.8 |
300 |
|
YDT225M-12/8/6 |
3.3/7.5/15 |
10.8/17.3/31.6 |
490/740/980 |
— |
— |
4/6/6.5 |
1/1.8/1.2 |
1.8 |
340 |
YDT系列外形尺寸圖（B3）
中心高
極 數
A
B
C
D
E
F
G
H
K
AB
AC
AD
HD
L
132M
2、4、6、8
216
140
89
38
80
10
33
132
ф12
280
270
210
315
475
132M
2、4、6、8
216
178
89
38
80
10
33
132
ф12
280
270
210
315
515
160M
2、4、6、8
254
210
108
42
110
12
37
160
ф15
330
325
255
385
600
160L
2、4、6、8
254
254
108
42
110
12
37
160
ф15
330
325
255
645
645
180M
2、4
279
241
121
48
110
14
42.5
180
ф15
355
360
285
430
670
180L
4、6、8
279
279
121
48
110
14
42.5
180
ф15
355
360
285
710
710
200L
2、4、6、8
318
305
133
55
140
16
49
200
ф19
395
400
310
475
775
225S
4、8
356
286
149
60
110
18
53
435
450
385
530
820
225M
2
311
55
140
16
49
225
815
4、6、8
60
18
53
845
250M
2
406
349
168
55
18
53
250
ф24
490
495
385
575
930
4、6、8
60
18
58
280S
2
457
368
190
18
280
550
555
410
640
1000
4、6、8
75
20
67.5
280M
2
419
65
18
58
1050
4、6、8
75
20
67.5
| 頁次：1/1 每頁10條 共3條信息 分頁：[1] |
