YDKK系列（風機用）IP44、IP54（空冷）
|
型 號 |
額定
功率
/kw |
定子電壓
/kV |
定子
電流
/A |
同步
轉速
/(r/min) |
效率
(%) |
功率
因數 |
最大轉矩
額定轉矩 |
堵轉轉矩
額定轉矩 |
堵轉電流
額定電流 |
電動機轉動慣量/(kg·m2) |
重量
/kg | |
|
IP23 |
IP44 | |||||||||||
|
YDKK500-6/8 |
560/240 |
6 |
69.5/38 |
1000/750 |
94/92.6 |
0.83/0.68 |
2.0/2.2 |
0.9 |
6.5 |
34 |
4120 |
4730 |
|
YDKK500-6/8 |
630/270 |
6 |
78.52/41 |
1000/750 |
94.2/92.8 |
0.83/0.68 |
2.0/2.2 |
0.9 |
6.5 |
39.5 |
4400 |
5010 |
|
YDKK560-6/8 |
800/340 |
6 |
97/45.6 |
1000/750 |
94.8/94 |
0.84/0.76 |
2.0/2.2 |
0.9 |
6.5 |
97.9 |
6530 |
7170 |
|
YDKK630-6/8 |
1250/530 |
6 |
144/71.4 |
1000/750 |
94.8/94 |
0.88/0.76 |
2.0/2.2 |
0.9 |
6.5 |
136.8 |
8490 |
9060 |
|
YDKK630-6/8 |
1440/590 |
6 |
161.3/79.5 |
1000/750 |
94.9/94 |
0.88/0.76 |
2.0/2.2 |
0.9 |
6.5 |
145.1 |
8845 |
9280 |
|
YDKK630-6/8 |
1600/680 |
6 |
194/90 |
1000/750 |
95.0/94.4 |
0.8/0.77 |
2.0/2.2 |
0.9 |
6.5 |
161.9 |
9200 |
9930 |
|
YDKK560-8/10 |
500/260 |
6 |
64.4/37.6 |
750/600 |
93.4/92.5 |
0.8/0.72 |
2.0/2.2 |
0.9 |
6.0/6.5 |
94.2 |
|
6460 |
|
YDKK630-8/10 |
800/410 |
6 |
100/58 |
750/600 |
93.8/93.3 |
0.82/0.73 |
2.0/2.2 |
0.9 |
6.0/6.5 |
126.8 |
8230 |
8750 |
|
YDKK630-8/10 |
1000/510 |
6 |
123/72 |
750/600 |
94.2/93.5 |
0.82/0.73 |
2.0/2.2 |
0.9 |
6.0/6.5 |
136.4 |
8500 |
9020 |
|
YDKK630-8/10 |
1120/580 |
6 |
137/88 |
750/600 |
94.4/93.7 |
0.82/0.73 |
2.0/2.2 |
0.9 |
6.0/6.5 |
146.2 |
8800 |
9280 |
|
YDKK630-8/10 |
1250/630 |
6 |
150/81 |
750/600 |
94.7/94.5 |
0.84/0.78 |
2.0/2.2 |
1.1/1.2 |
6.0/6.5 |
157.8 |
9530 |
9930 |
YD、YDKS系列（風機用）IP23、IP44（水冷）
|
型 號 |
額定
功率
/kw |
定子電壓
/kV |
定子
電流
/A |
同步
轉速
/(r/min) |
效率
(%) |
功率
因數 |
最大轉矩
額定轉矩 |
堵轉轉矩
額定轉矩 |
堵轉電流
額定電流 |
電動機轉動慣量/(kg·m2) |
重量
/kg | |
|
IP23 |
IP44 | |||||||||||
|
YD500-6/8 |
560/240 |
6 |
69.5/38 |
1000/750 |
94/92.6 |
0.83/0.68 |
2.0/2.2 |
0.9/0.9 |
6.5/6.5 |
34 |
4120 |
4730 |
|
YD500-6/8 |
630/270 |
6 |
78.5/41 |
1000/750 |
94.2/92.8 |
0.83/0.68 |
2.0/2.2 |
0.9/0.9 |
6.5/6.5 |
39.5 |
4400 |
5010 |
|
YD560-6/8 |
800/340 |
6 |
97/45.6 |
1000/750 |
94.8/94.0 |
0.84/0.76 |
2.0/2.2 |
0.9/0.9 |
6.0/6.5 |
97.9 |
6530 |
7170 |
|
YD630-6/8 |
1250/530 |
6 |
148.5/71.4 |
1000/750 |
94.2/94.0 |
0.86/0.76 |
2.0/2.2 |
0.9/0.9 |
6.5/6.5 |
136.8 |
8490 |
9000 |
|
YD630-6/8 |
1600/680 |
6 |
190/91.6 |
1000/750 |
94.4/94.0 |
0.86/0.76 |
2.0/2.2 |
0.9/0.9 |
6.5/6.5 |
161.9 |
8930 |
9440 |
|
YD500-8/10 |
500/260 |
6 |
64.4/37.6 |
750/600 |
93.4/92.5 |
0.8/0.72 |
2.0/2.2 |
0.9/0.9 |
6.0/6.5 |
42 |
4540 |
5140 |
|
YD560-8/10 |
800/410 |
6 |
100/55 |
750/600 |
94.2/94 |
0.81/0.76 |
2.0/2.2 |
0.9/0.9 |
6.0/6.5 |
114.3 |
6390 |
7030 |
|
YD630-8/10 |
1000/510 |
6 |
123/68 |
750/600 |
94.5/94.2 |
0.83/0.77 |
2.0/2.2 |
0.9/0.9 |
6.0/6.5 |
136.0 |
8230 |
8750 |
|
YD630-8/10 |
1250/630 |
6 |
158/83 |
750/600 |
94.5/94.3 |
0.83/0.77 |
2.0/2.2 |
1.1/1.2 |
6.0/6.5 |
157.8 |
8820 |
9330 |
|
YD630-8/10 |
1400/720 |
6 |
171/94 |
750/600 |
94.5/94.5 |
0.83/0.78 |
2.0/2.2 |
0.9/0.9 |
6.0/6.5 |
175.2 |
9020 |
9530 |
|
YD710-8/10 |
1600/820 |
6 |
193/108 |
750/600 |
94.8/93.8 |
0.84/0.78 |
2.0/2.2 |
0.9/0.9 |
6.0/6.5 |
|
11000 |
11500 |
|
YD710-8/10 |
2000/1000 |
6 |
241/131 |
750/600 |
95/94 |
0.84/0.78 |
2.0/2.2 |
0.9/0.9 |
6.0/6.5 |
|
11500 |
12100 |
|
YD800-8/10 |
2500/1260 |
6 |
300/165 |
750/600 |
95.2/94.4 |
0.84/0.78 |
2.0/2.2 |
0.9/0.9 |
6.0/6.5 |
|
12000 |
12600 |
|
YD800-8/10 |
3000/1540 |
6 |
360/198 |
750/600 |
95.4/94.6 |
0.84/0.79 |
2.0/2.2 |
0.9/0.9 |
6.0/6.5 |
|
12500 |
13100 |
|
YD630-10/12 |
1000/590 |
6 |
128/86.6 |
600/500 |
93.7/93.0 |
0.8/0.72 |
2.0/2.2 |
0.9/0.9 |
6.0/6.5 |
148.2 |
8120 |
8630 |
|
YD710-10/12 |
1000/590 |
10 |
74.9/56 |
600/500 |
94/93.4 |
0.8/0.65 |
2.0/2.2 |
0.8/1.0 |
6.0/6.5 |
|
12000 |
12700 |
|
YD710-10/12 |
1250/725 |
6 |
159/104 |
600/500 |
94.4/93.4 |
0.8/0.72 |
2.0/2.2 |
0.9/0.9 |
6.0/6.5 |
|
11200 |
11800 |
|
YD710-10/12 |
1400/810 |
6 |
174/115 |
600/500 |
94.5/93.8 |
0.81/0.72 |
2.0/2.2 |
0.9/0.9 |
6.0/6.5 |
|
11700 |
12300 |
|
YD710-10/12 |
1600/930 |
6 |
199/133 |
600/500 |
94.5/93.8 |
0.81/0.72 |
2.0/2.2 |
0.9/0.9 |
6.0/6.5 |
|
12200 |
12800 |
|
YD800-10/12 |
2000/1160 |
6 |
248/152 |
600/500 |
94.8/94 |
0.82/0.78 |
2.0/2.2 |
0.9/0.9 |
6.5/6.5 |
|
15500 |
16500 |
|
YD800-10/12 |
2500/1450 |
6 |
308.8/190 |
600/500 |
95/94.2 |
0.82/0.78 |
2.0/2.2 |
0.9/0.9 |
6.5/6.5 |
|
17100 |
18100 |
注：YDKS系列雙速異步電動機除外形尺寸外,技術數據與YD系列相同。
YD、YDKS系列IP23、IP44（水冷）
|
型 號 |
額定
功率
/kw |
定子
電壓
/kV |
定子
電流
/A |
同步
轉速
/(r/min) |
效率
(%) |
功率
因數 |
最大轉矩
額定轉矩 |
堵轉轉矩
額定轉矩 |
堵轉電流
額定電流 |
電動機轉動慣量/(kg·m2) |
重量
/kg | |
|
IP23 |
IP44 | |||||||||||
|
YD450-6/8 |
315/133 |
6 |
40.6/21.2 |
1000/750 |
93.4/91.5 |
0.82/0.66 |
1.8 |
0.8 |
6.5 |
15.3 |
3190 |
3710 |
|
YD450-6/8 |
355/150 |
6 |
45.6/23.8 |
1000/750 |
93.5/91.7 |
0.82/0.66 |
1.8 |
0.8 |
6.5 |
16.6 |
3290 |
3810 |
|
YD450-6/8 |
400/170 |
6 |
51.5/26.6 |
1000/750 |
83.6/91.8 |
0.82/0.67 |
1.8 |
0.8 |
6.5 |
19.2 |
3520 |
4030 |
|
YD500-6/8 |
450/190 |
6 |
57/30 |
1000/750 |
93.8/92 |
0.83/0.67 |
1.8 |
0.7 |
|
31.3 |
3980 |
4590 |
|
YD500-6/8 |
500/210 |
6 |
62.4/32.7 |
1000/750 |
94/92.2 |
0.83/0.67 |
1.8 |
0.7 |
6.5 |
34 |
4120 |
4730 |
|
YD500-6/8 |
560/240 |
6 |
69.5/38 |
1000/750 |
94/92.5 |
0.83/0.68 |
1.8 |
0.7 |
6.5 |
39.5 |
4400 |
5010 |
|
YD500-6/8 |
630/270 |
6 |
78.5/41.2 |
1000/750 |
94.2/92.7 |
0.84/0.68 |
1.8 |
0.7 |
6.5 |
42.2 |
4550 |
5160 |
|
YD560-6/8 |
1000/420 |
6 |
119/57 |
1000/750 |
94.8/93.4 |
0.85/0.68 |
1.8 |
0.7 |
6.5 |
92.5 |
6400 |
7030 |
|
YD560-6/8 |
1250/530 |
6 |
149/80 |
1000/750 |
95/94 |
0.85/0.68 |
1.8 |
0.7 |
6.5 |
97.9 |
6530 |
7170 |
|
YD630-6/8 |
1600/680 |
6 |
190/89 |
1000/750 |
95.2/94.2 |
0.86/0.78 |
1.8 |
0.7 |
6.5 |
161.9 |
8490 |
9000 |
|
YD450-8/10 |
315/160 |
6 |
41/24 |
750/600 |
93/91.5 |
0.8/0.7 |
1.8 |
0.8 |
6.0 |
18.9 |
3510 |
4020 |
|
YD500-8/10 |
355/190 |
6 |
46/27 |
750/600 |
93.1/92.5 |
0.8/0.72 |
1.8 |
0.8 |
6.0 |
29.5 |
3860 |
4470 |
|
YD500-8/10 |
400/210 |
6 |
52/30 |
750/600 |
93.3/92.5 |
0.8/0.72 |
1.8 |
0.8 |
6.0 |
33.7 |
4090 |
4720 |
|
YD500-8/10 |
450/230 |
6 |
58/33 |
750/600 |
93.4/92.6 |
0.8/0.72 |
1.8 |
0.8 |
6.0 |
37.1 |
4250 |
4860 |
|
YD500-8/10 |
500/260 |
6 |
64/37 |
750/600 |
93.8/93 |
0.8/0.72 |
1.8 |
0.7 |
6.0 |
42 |
4540 |
5140 |
|
YD500-8/10 |
630/330 |
6 |
80/45 |
750/600 |
94/93.2 |
0.8/0.76 |
1.8 |
0.7 |
6.0 |
51.6 |
4830 |
5420 |
|
YD560-8/10 |
710/360 |
6 |
90/49 |
750/600 |
94/93.4 |
0.82/0.76 |
1.8 |
0.7 |
6.0 |
102.8 |
6100 |
6740 |
|
YD560-8/10 |
800/410 |
6 |
100/56 |
750/600 |
94.2/93.4 |
0.83/0.76 |
1.8 |
0.7 |
6.0 |
114.3 |
6390 |
7030 |
|
YD630-8/10 |
1250/630 |
6 |
153/85 |
750/600 |
94.5/94.3 |
0.83/0.76 |
1.8 |
0.7 |
6.0 |
146.7 |
8490 |
9000 |
|
YD710-8/10 |
1600/820 |
6 |
193/107 |
750/600 |
94.8/94.6 |
0.84/0.78 |
1.8 |
0.7 |
6.0 |
|
11500 |
12100 |
|
YD710-8/10 |
2000/1000 |
6 |
241/130 |
750/600 |
95.2/94.8 |
0.84/0.78 |
1.8 |
0.7 |
6.0 |
|
12000 |
12600 |
|
YD800-8/10 |
2500/1250 |
6 |
297/160 |
750/600 |
95.2/94.2 |
0.85/0.8 |
1.8 |
0.7 |
6.0 |
|
16000 |
17000 |
|
YD800-8/10 |
3000/1600 |
6 |
356/191 |
750/600 |
95.4/94.6 |
0.85/0.8 |
1.8 |
0.7 |
6.0 |
|
16800 |
17800 |
|
YD500-10/12 |
315/180 |
6 |
42/30 |
600/500 |
92.2/90.8 |
0.78/0.64 |
1.8 |
0.8 |
6.0 |
38 |
3990 |
4510 |
|
YD500-10/12 |
355/210 |
6 |
47/35 |
600/500 |
92.5/91 |
0.78/0.64 |
1.8 |
0.8 |
6.0 |
41.4 |
4030 |
4640 |
|
YD500-10/12 |
400/230 |
6 |
52/38 |
600/500 |
93/91 |
0.79/0.64 |
1.8 |
0.8 |
6.0 |
44.8 |
4160 |
4770 |
|
YD500-10/12 |
450/260 |
6 |
59/43 |
600/500 |
93/91.4 |
0.79/0.64 |
1.8 |
0.8 |
6.0 |
51.6 |
4390 |
5000 |
|
YD560-10/12 |
560/320 |
6 |
70/50 |
600/500 |
93.3/92.6 |
0.82/0.68 |
1.8 |
0.7 |
6.0 |
92 |
5840 |
6480 |
|
YD560-10/12 |
630/360 |
6 |
79/55 |
600/500 |
93.5/92.8 |
0.82/0.68 |
1.8 |
0.7 |
6.0 |
98.1 |
6010 |
6650 |
|
YD560-10/12 |
710/410 |
6 |
89/62 |
600/500 |
93.6/93 |
0.82/0.68 |
1.8 |
0.7 |
6.0 |
102.8 |
6170 |
6810 |
|
YD630-10/12 |
800/460 |
6 |
101/70 |
600/500 |
92.8/92.4 |
0.82/0.68 |
1.8 |
0.7 |
6.0 |
136.2 |
7830 |
8340 |
|
YD630-10/12 |
900/520 |
6 |
114/77 |
600/500 |
93.8/92.4 |
0.82/0.7 |
1.8 |
0.7 |
6.0 |
148.2 |
8120 |
8630 |
|
YD630-10/12 |
1000/590 |
6 |
126/88 |
600/500 |
93/92.4 |
0.82/0.7 |
1.8 |
0.7 |
6.0 |
162.3 |
8430 |
8940 |
|
YD630-10/12 |
1250/720 |
6 |
157/106 |
600/500 |
92.3/93.4 |
0.82/0.7 |
1.8 |
0.7 |
6.0 |
170.5 |
8630 |
9140 |
|
YD710-10/12 |
1400/810 |
6 |
174/115 |
600/500 |
94.5/94.2.
2 |
0.82/0.72 |
1.8 |
0.7 |
6.0 |
|
11200 |
11800 |
|
YD710-10/12 |
1600/930 |
6 |
198/131 |
600/500 |
94.8/94.5 |
0.82/0.72 |
1.8 |
0.7 |
6.0 |
|
11700 |
12300 |
|
YD710-10/12 |
1800/1050 |
6 |
223/146 |
600/500 |
95.0/94.6 |
0.82/0.72 |
1.8 |
0.7 |
6.0 |
|
12200 |
12800 |
|
YD710-10/12 |
1000/590 |
10 |
75/60 |
600/500 |
94/93.4 |
0.82/0.65 |
1.8 |
0.7 |
6.0 |
|
12700 |
13300 |
|
YD800-10/12 |
2000/1160 |
6 |
244/150 |
600/500 |
95/94.5 |
0.83/0.78 |
1.8 |
0.7 |
6.0 |
|
16300 |
17300 |
|
YD800-10/12 |
2500/1450 |
6 |
304/189 |
600/500 |
95.2/94.8 |
0.83/0.78 |
1.8 |
0.7 |
6.0 |
|
17100 |
18100 |
|
YD560-10/14 |
400/250 |
6 |
53.7/36 |
500/428 |
92.9/92.5 |
0.78/0.72 |
1.8 |
0.7 |
6.0 |
109 |
5660 |
6300 |
|
YD560-10/14 |
400/280 |
6 |
60/40 |
500/428 |
93/92.6 |
0.78/0.72 |
1.8 |
0.7 |
6.0 |
118.5 |
5850 |
6490 |
|
YD560-10/14 |
500/315 |
6 |
66/45 |
500/428 |
93.2/92.8 |
0.78/0.72 |
1.8 |
0.7 |
6.0 |
128.3 |
6065 |
6690 |
|
YD630-12/14 |
630/400 |
6 |
83.7/58 |
500/428 |
92.9/92.5 |
0.78/0.72 |
1.8 |
0.7 |
6.0 |
205.4 |
7910 |
8420 |
|
YD630-12/14 |
710/450 |
6 |
94/65 |
500/428 |
93/92.6 |
0.78/0.72 |
1.8 |
0.7 |
6.0 |
224.2 |
8220 |
8730 |
|
YD630-12/14 |
800/500 |
6 |
105/72 |
500/428 |
93.2/92.8 |
0.78/0.72 |
1.8 |
0.7 |
6.0 |
235.5 |
8410 |
8920 |
|
YD710-12/14 |
900/570 |
6 |
118/82 |
500/428 |
93.4/93 |
0.78/0.72 |
1.8 |
0.7 |
6.0 |
|
11300 |
11900 |
|
YD710-12/14 |
1000/630 |
6 |
131/90 |
500/428 |
94.2/93.4 |
0.78/0.72 |
1.8 |
0.7 |
6.0 |
|
11800 |
12400 |
|
YD710-12/14 |
1250/790 |
6 |
164/113 |
500/428 |
94.4/93.6 |
0.78/0.72 |
1.8 |
0.7 |
6.0 |
|
12300 |
12900 |
|
YD800-12/14 |
1600/1000 |
6 |
209/147 |
500/428 |
94.3/93.8 |
0.78/0.70 |
1.8 |
0.7 |
6.0 |
|
15900 |
16900 |
|
YD800-12/14 |
2000/1260 |
6 |
261/184 |
500/428 |
94.5/93.8 |
0.78/0.7 |
1.8 |
0.7 |
6.0 |
|
16800 |
17800 |
|
YD800-14/16 |
1250/840 |
6 |
179/124 |
428/375 |
93.5/93 |
0.72/0.7 |
1.8 |
0.7 |
6.0 |
|
15900 |
16900 |
|
YD800-14/16 |
1600/1100 |
6 |
216/162 |
428/375 |
93.7/93.2 |
0.76/0.7 |
1.8 |
0.7 |
6.0 |
|
16800 |
17800 |
|
YD710-16/18 |
560/390 |
6 |
80/58 |
375/333 |
92.6/92 |
0.72/0.7 |
1.8 |
0.7 |
6.0 |
|
11200 |
11800 |
|
YD710-16/18 |
630/440 |
6 |
91/66 |
375/333 |
92.8/92 |
0.72/0.7 |
1.8 |
0.7 |
6.0 |
|
11700 |
12300 |
|
YD710-16/18 |
710/500 |
6 |
102/75 |
375/333 |
93/92.2 |
0.72/0.7 |
1.8 |
0.7 |
6.0 |
|
12700 |
12800 |
|
YD800-16/18 |
900/630 |
6 |
129/9402/7522014 |
375/333 |
93.4/92.5 |
0.72/0.7 |
1.8 |
0.7 |
6.0 |
|
15900 |
16900 |
|
YD800-16/18 |
1000/700 |
6 |
143/104 |
375/333 |
93.6/92.8 |
0.72/0.70 |
1.8 |
0.7 |
6.0 |
|
16700 |
17700 |
|
YD800-16/18 |
1250/880 |
6 |
178/130 |
375/333 |
93.8/93 |
0.72/0.70 |
1.8 |
0.7 |
6.0 |
|
17500 |
18500 |
|
YD710-16/20 |
560/290 |
6 |
81/43 |
375/300 |
92.4/92 |
0.72/0.7 |
1.8 |
0.7 |
6.0 |
|
10700 |
11300 |
|
YD710-16/20 |
630/320 |
6 |
91/48 |
375/300 |
92.6/92.1 |
0.72/0.7 |
1.8 |
0.7 |
6.0 |
|
11200 |
11800 |
|
YD710-16/20 |
710/360 |
6 |
102/54 |
375/300 |
92.8/92.2 |
0.72/0.7 |
1.8 |
0.7 |
6.0 |
|
11700 |
12300 |
|
YD710-16/20 |
800/410 |
6 |
118/61 |
375/300 |
93/92.4 |
0.72/0.7 |
1.8 |
0.7 |
6.0 |
|
12700 |
12800 |
|
YD800-16/20 |
900/460 |
6 |
128/68 |
375/333 |
93/92.4 |
0.73/0.7 |
1.8 |
0.7 |
6.0 |
|
15900 |
16900 |
|
YD800-16/20 |
1000/510 |
6 |
141/76 |
375/333 |
93.2/92.5 |
0.73/0.7 |
1.8 |
0.7 |
6.0 |
|
16700 |
17700 |
|
YD800-16/20 |
1250/630 |
6 |
176/94 |
375/333 |
93.4/92.6 |
0.73/0.7 |
1.8 |
0.7 |
6.0 |
|
17500 |
18500 |
|
YD800-18/24 |
710/300 |
6 |
100/51.4 |
333/300 |
92.8/92 |
0.73/0.61 |
1.8 |
0.7 |
6.0 |
|
15100 |
16100 |
|
YD800-18/24 |
800/340 |
6 |
113/58.3 |
333/300 |
93/92 |
0.73/0.61 |
1.8 |
0.7 |
6.0 |
|
15900 |
16900 |
|
YD800-18/24 |
900/380 |
6 |
127/65 |
333/300 |
93.2/92.2 |
0.73/0.61 |
1.8 |
0.7 |
6.0 |
|
16700 |
17700 |
|
YD800-18/24 |
1000/4 20 |
6 |
141/72 |
333/300 |
93.3/92.3 |
0.73/0.61 |
1.8 |
0.7 |
6.0 |
|
17500 |
18500 |
|
YD800-18/24 |
1120/470 |
6 |
158/80 |
333/300 |
93.5/92.4 |
0.73/0.61 |
1.8 |
0.7 |
6.0 |
|
18300 |
19300 |
|
YD800-20/24 |
560/320 |
6 |
81/55 |
300/250 |
92.5/92 |
0.72/0.61 |
1.8 |
0.7 |
6.0 |
15000 |
16100 |
|
|
YD800-20/24 |
630/360 |
6 |
91/62 |
300/250 |
92.8/92.2 |
0.72/0.61 |
1.8 |
0.7 |
6.0 |
15900 |
16900 |
|
|
YD800-20/24 |
710/410 |
6 |
102/70 |
300/250 |
93/92.5 |
0.72/0.61 |
1.8 |
0.7 |
6.0 |
16700 |
17700 |
|
|
YD800-20/24 |
800/460 |
6 |
115/77 |
300/250 |
93.2/92.8 |
0.72/0.61 |
1.8 |
0.7 |
6.0 |
17500 |
18500 |
|
注：1、YDKS系列雙速異步電動機除外形尺寸外技術數據與YD系列相同。
2、以上各表的數據為保證值。

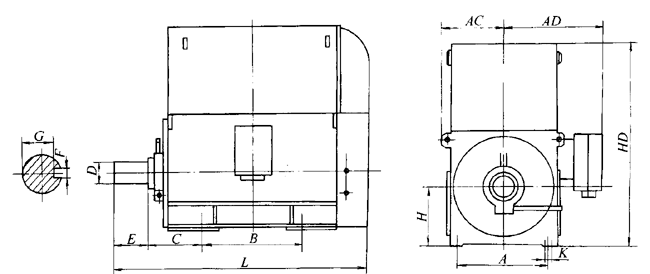

YD系列IP23雙速電動機外形尺寸圖
（單位：mm）
|
中心高
H |
A |
B |
C |
D |
E |
F |
G |
K |
AC |
AD |
HD |
L |
|
400 |
710 |
1000 |
335 |
110 |
210 |
28 |
100 |
35 |
580 |
835 |
1200 |
1860 |
|
450 |
800 |
1120 |
335 |
130 |
250 |
32 |
119 |
35 |
630 |
895 |
1350 |
2075 |
|
500 |
900 |
1250 |
475 |
140 |
250 |
36 |
128 |
42 |
690 |
965 |
1500 |
2220 |
|
560 |
1000 |
1400 |
500 |
160 |
300 |
40 |
147 |
42 |
765 |
1040 |
1700 |
2900 |
|
630 |
1120 |
1600 |
530 |
180 |
300 |
45 |
165 |
48 |
830 |
1165 |
1900 |
3100 |
|
710 |
1400 |
1800 |
530 |
200 |
350 |
45 |
185 |
56 |
1370 |
1310 |
2220 |
3200 |
|
800 |
1600 |
2000 |
530 |
220 |
350 |
50 |
203 |
56 |
1460 |
1400 |
2500 |
3420 |

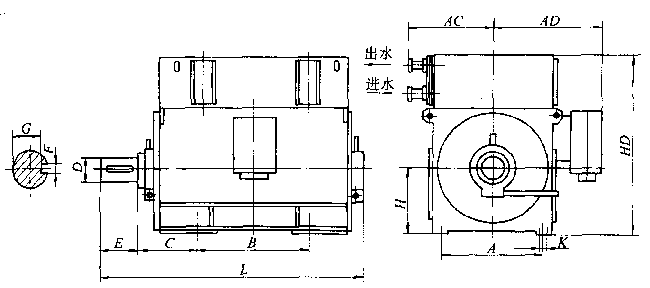

YDKS系列IP44（水冷）雙速電動機外形尺寸圖
（單位：mm）
|
中心高
H |
A |
B |
C |
D |
E |
F |
G |
K |
AC |
AD |
HD |
L |
|
400 |
710 |
1000 |
335 |
110 |
210 |
28 |
100 |
35 |
580 |
835 |
1495 |
1860 |
|
450 |
800 |
1120 |
335 |
130 |
250 |
32 |
119 |
35 |
630 |
895 |
1595 |
2075 |
|
500 |
900 |
1250 |
475 |
140 |
250 |
36 |
128 |
42 |
690 |
965 |
1795 |
2220 |
|
560 |
1000 |
1400 |
500 |
160 |
300 |
40 |
147 |
42 |
765 |
1040 |
2550 |
2900 |
|
630 |
1120 |
1600 |
530 |
180 |
300 |
45 |
165 |
48 |
830 |
1165 |
2850 |
3100 |
|
710 |
1400 |
1800 |
530 |
200 |
350 |
45 |
185 |
56 |
1370 |
1310 |
2310 |
3200 |
|
800 |
1600 |
2000 |
530 |
220 |
350 |
50 |
203 |
56 |
1460 |
1400 |
2600 |
3420 |

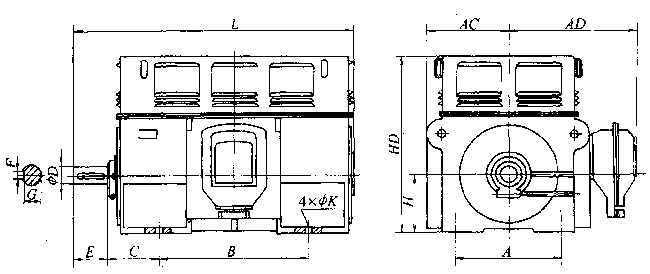

YDKK系列IP44、IP54（空冷）雙速電動機外形尺寸圖
（單位：mm）
|
中心高
H |
A |
B |
C |
D |
E |
F |
G |
K |
AC |
AD |
HD |
L |
|
400 |
710 |
1000 |
335 |
110 |
210 |
28 |
100 |
35 |
580 |
835 |
— |
— |
|
450 |
800 |
1120 |
335 |
130 |
250 |
32 |
119 |
35 |
630 |
895 |
1430 |
2240 |
|
500 |
900 |
1250 |
475 |
140 |
250 |
36 |
128 |
42 |
690 |
965 |
1600 |
2430 |
|
560 |
1000 |
1400 |
500 |
160 |
300 |
40 |
147 |
42 |
765 |
1040 |
2400 |
3300 |
|
630 |
1120 |
1600 |
530 |
180 |
300 |
45 |
165 |
48 |
830 |
1165 |
2700 |
3600 |
|
710 |
1400 |
1800 |
530 |
200 |
350 |
45 |
185 |
56 |
1370 |
1310 |
— |
— |
|
800 |
1600 |
2000 |
530 |
220 |
350 |
50 |
203 |
56 |
1460 |
1400 |
— |
— |
| 頁次：1/1 每頁10條 共2條信息 分頁：[1] |
