產品展示
熱功率
|
減速器型號 |
熱功率/kW | |
|
PTN
4.0＜i≤9 |
PTN
9＜i≤25 | |
|
2KC125N
2KC140N |
41
51 |
44
55 |
|
2KC160N
2KC180N |
63
75 |
68
81 |
|
2KC200N
2KC225N |
94
113 |
102
122 |
|
減速器型號 |
熱功率/KW | |
|
PTN
4.0＜i≤9 |
PTN
9＜i≤25 | |
|
2KC250N
2KC280N |
138
169 |
149
183 |
|
2KC320N
2KC360N |
219
263 |
237
285 |
|
2KC400N |
326 |
352 |
注：PTN＝環境溫度20℃時額定熱功率。減速器裝有風扇。
精確傳動比
|
減速器型號 |
精確傳動比iex | ||||||||
|
4.0 |
4.5 |
5.0 |
5.6 |
6.3 |
7.1 |
8.0 |
9.0 |
10.0 | |
|
2KC125
2KC140
2KC160
2KC180
2KC200
2KC225
2KC250
2KC280
2KC320
2KC360
2KC400 |
4.1786
4.1565
4.2030
4.0857
4.1786
4.2030
4.1053
4.1565
4.2030
4.0857
4.1786 |
4.6429
4.6917
4.6429
4.6429
4.6429
4.6917
4.6975
4.6917
4.6429
4.6429
4.6429 |
5.2619
5.1587
5.2619
5.2619
5.3651
5.1587
5.2619
5.1587
5.2619
5.2619
5.3651 |
5.7899
5.9196
5.7899
5.7899
5.8992
5.9196
5.7899
5.9196
5.7899
5.7899
5.8992 |
6.6857
6.5619
6.6857
6.6857
6.3839
6.6161
6.6857
6.5619
6.6857
6.5546
6.5546 |
7.5446
7.1964
7.1964
7.1964
7.1964
7.1810
7.5446
7.1964
7.1964
7.1964
7.1964 |
8.2995
8.3571
8.3571
8.3571
8.3571
8.0476
8.2952
8.3571
8.3571
8.3571
8.3571 |
9.1636
8.9939
9.1636
9.1636
8.7500
9.0682
9.1636
8.9936
9.1636
8.9840
8.9840 |
10.3409
9.8636
9.8636
9.8636
9.8636
9.8424
10.341
9.8636
9.8636
9.8636
9.8636 |
|
減速器
型號 |
精確傳動比iex | |||||||
|
11.2 |
12.5 |
14.0 |
16.0 |
18.0 |
20.0 |
22.4 |
25.0 | |
|
2KC125
2KC140
2KC160
2KC180
2KC200
2KC225
2KC250
2KC280
2KC320
2KC360
2KC400 |
11.370
11.455
11.455
11.455
11.455
11.030
11.370
11.455
11.455
11.455
11.455 |
12.800
12.563
12.800
12.800
12.222
12.670
12.800
12.563
12.800
12.549
12.549 |
14.444
13.778
13.778
13.778
13.778
13.748
14.444
13.778
13.778
13.778
13.778 |
15.882
16.000
16.000
16.000
16.000
15.407
15.882
16.000
16.000
16.000
16.000 |
17.600
17.274
17.600
17.600
16.806
17.417
17.600
17.274
17.600
17.255
17.255 |
19.881
18.944
18.944
18.944
18.944
18.904
18.861
18.944
18.944
18.944
18.944 |
21.837
22.000
22.000
22.000
22.000
21.185
21.837
22.000
22.000
22.000
22.000 |
24.119
24.444
24.444
24.444
24.444
24.821
23.746
24.444
24.444
24.444
24.444 |
3KC140N～400N型三級錐齒輪—斜齒輪減速器
此類減速器見下表。
外 形 尺 寸
|
減速器型號 |
減速箱尺寸/mm |
重量/kg |
油量/L | ||||||||||||||||
|
B |
D |
E |
EB |
EJ |
G1 |
G2 |
H |
HK |
J |
JE |
K |
L |
N |
O |
P |
Q | |||
|
3KC140N
3KC160N |
160
175 |
561.4
625.5 |
409
468 |
104
113 |
114
125 |
270.1
302.1 |
200
225 |
380
425 |
433
478 |
220
260 |
182
210 |
20
25 |
46
50 |
-
- |
-
- |
248
292 |
19
24 |
105
145 |
7.6
10 |
|
3KC180N
3KC200N |
205
225 |
711.1
800.0 |
521
582 |
131
152 |
140
150 |
336.7
366.6 |
250
280 |
475
530 |
537
592 |
280
320 |
225
250 |
25
30 |
60
77 |
-
- |
-
- |
320
355 |
24
28 |
200
280 |
14
20 |
|
3KC225N
3KC250N |
255
281 |
907.5
1007.9 |
692
771 |
200
225 |
-
- |
376.7
390.7 |
280
280 |
560
560 |
631
631 |
325
355 |
265
286 |
40
45 |
165
192 |
135
145 |
-
- |
455
510 |
28
28 |
380
510 |
35
46 |
|
3KC280N
3KC315N |
308
353 |
1120.8
1268.1 |
862
963 |
252
286 |
-
- |
437.8
496.4 |
315
355 |
630
710 |
701
800 |
380
424 |
314
350 |
50
56 |
215
245 |
170
175 |
-
435 |
575
640 |
28
35 |
720
1000 |
64
87 |
|
3KC355N
3KC400N |
400
448 |
1423.8
1596.5 |
1097
1215 |
326
365 |
-
- |
558.0
625.2 |
400
450 |
800
900 |
890
990 |
500
550 |
410
450 |
63
71 |
275
310 |
185
210 |
520
560 |
720
800 |
35
42 |
1350
1900 |
116
164 |
|
減速器型號 |
軸尺寸/mm | ||||||||||
|
輸入軸 | |||||||||||
|
|
19＜i≤47 |
47＜i≤67 | |||||||||
|
U1 |
Y1 |
V1 |
d1 |
b1 |
h1 |
Y1 |
V1 |
d1 |
b1 |
h1 | |
|
3KC140N
3KC160N |
401.4
450.5 |
58
58 |
459.4
508.5 |
30k6
35k6 |
8h9
10h9 |
33
38 |
36
42 |
437.4
492.5 |
22k6
25k6 |
6h9
8h9 |
24.5
28 |
|
3KC180N
3KC200N |
506.1
575.0 |
82
82 |
588.1
657.0 |
40k6
45k6 |
12h9
14h9 |
43
48.5 |
58
58 |
564.1
633.0 |
30k6
35k6 |
8h9
10h9 |
33
38 |
|
3KC225N
3KC250N |
652.5
726.9 |
82
82 |
734.5
808.9 |
50k6
55m6 |
14h9
16h9 |
53.5
59 |
82
82 |
734.5
808.9 |
40k6
45k6 |
12h9
14h9 |
43
48.5 |
|
3KC280N
3KC315N |
812.8
915.1 |
105
105 |
917.8
1020.1 |
60m6
65m6 |
18h9
18h9 |
64
69 |
82
82 |
894.8
997.1 |
50k6
55m6 |
14h9
16h9 |
53.5
59 |
|
3KC355N
3KC400N |
1023.8
1148.5 |
105
130 |
1128.8
1278.5 |
70m6
80m6 |
20h9
22h9 |
74.5
85 |
105
105 |
1128.8
1253.5 |
60m6
65m6 |
18h9
18h9 |
64
69 |
|
減速器型號 |
軸尺寸/mm | ||||||||||
|
輸入軸 |
輸出軸 | ||||||||||
|
67＜i≤95 | |||||||||||
|
Y1 |
V1 |
d1 |
b1 |
h1 |
U2 |
Y2 |
V2 |
d2 |
b2 |
h2 | |
|
3KC140N
3KC160N |
28
28 |
429.4
478.5 |
16k6
18k6 |
5h9
6h9 |
18
20.5 |
120
140 |
105
105 |
225
245 |
65m6
75m6 |
18h9
20h9 |
69
79.5 |
|
3KC180N
3KC200N |
36
36 |
542.1
611.0 |
20k6
22k6 |
6h9
6h9 |
22.5
24.5 |
145
155 |
130
130 |
275
285 |
85m6
95m6 |
22h9
25h9 |
90
100 |
|
3KC225N
3KC250N |
42
58 |
694.5
784.9 |
25k6
30k6 |
8h9
8h9 |
28
33 |
175
195 |
165
165 |
340
360 |
110m6
120m6 |
28h9
32h9 |
116
127 |
|
3KC280N
3KC315N |
58
82 |
870.8
997.1 |
35k6
40k6 |
10h9
12h9 |
38
43 |
215
240 |
200
200 |
415
440 |
140m6
150m6 |
36h9
36h9 |
148
158 |
|
3KC355N
3KC400N |
82
82 |
1105.8
1230.5 |
45k6
50k6 |
14h9
14h9 |
48.5
53.5 |
265
300 |
240
280 |
505
580 |
170m6
190m6 |
40h9
45h9 |
179
200 |
額定機械功率
|
減速器型號 |
n1/(r/min) |
額定機械功率PN1/kW | |||||||||||||
|
公稱傳動比iN | |||||||||||||||
|
20 |
22.5 |
25 |
28 |
31.5 |
35.5 |
40 |
45 |
50 |
56 |
63 |
71 |
80 |
90 | ||
|
3KC140N |
1800
1500
1200
1000 |
32.6＋
28.2＋
22.6＋
18.9＋ |
31.8＋
27.1＋
21.7＋
18.1＋ |
29.9＋
25.0＋
20.0＋
16.7＋ |
25.7＋
22.1＋
17.7＋
14.8＋ |
24.5＋
20.4＋
16.4＋
13.6＋ |
17.5＋
14.6＋
11.7＋
9.77＋ |
15.1＋
12.7＋
10.2＋
8.57＋ |
13.8＋
11.6＋
9.34＋
7.80＋ |
12.0＋
10.0＋
8.10＋
6.77＋ |
10.9＋
9.16＋
7.34＋
6.14＋ |
9.87＋
8.27＋
6.67＋
5.59＋ |
7.91＋
6.96＋
5.85＋
4.91＋ |
7.91＋
6.63＋
5.35＋
4.48＋ |
7.06＋
5.92＋
4.77＋
4.00＋ |
|
3KC160N |
1800
1500
1200
1000 |
47.7＋
39.9＋
32.0＋
26.7＋ |
43.8＋
36.8＋
29.6＋
24.9＋ |
38.4＋
32.1＋
25.7＋
21.4＋ |
36.0＋
30.1＋
24.3＋
20.4＋ |
33.0＋
27.7＋
22.3＋
18.7＋ |
28.6＋
24.0＋
19.4＋
16.2＋ |
22.8＋
19.0＋
15.2＋
12.7＋ |
18.7＋
15.6＋
12.5＋
10.4＋ |
17.8＋
14.9＋
11.9＋
9.93＋ |
14.6＋
12.2＋
9.79＋
8.18＋ |
12.7＋
10.6＋
8.49＋
7.12＋ |
9.06＋
7.97＋
6.82＋
6.00＋ |
9.06＋
7.97＋
6.81＋
5.71＋ |
8.45＋
7.43＋
5.99＋
5.02＋ |
|
3KC180N |
1800
1500
1200
1000 |
68.2＋
56.9＋
45.7＋
38.1＋ |
64.6＋
54.1＋
43.6＋
36.6＋ |
55.5＋
46.3＋
37.1＋
31.0＋ |
53.4＋
44.8＋
36.1＋
30.3＋ |
43.4＋
36.3＋
29.1＋
24.3＋ |
41.0＋
34.2＋
27.4＋
22.9＋ |
37.2＋
31.0＋
24.9＋
20.7＋ |
30.4＋
25.3＋
20.3＋
16.9＋ |
29.3＋
24.4＋
19.6＋
16.3＋ |
24.0＋
20.0＋
16.0＋
13.4＋ |
20.7＋
17.5＋
14.0＋
11.8＋ |
18.9＋
15.8＋
12.7＋
10.6＋ |
16.6＋
13.9＋
11.2＋
9.36＋ |
14.1＋
11.8＋
9.55＋
8.02＋ |
|
3KC200N |
1800
1500
1200
1000 |
104＋
88.4＋
71.3＋
59.8＋ |
93.0＋
77.7＋
62.3＋
52.0＋ |
82.5＋
69.0＋
55.3＋
46.2＋ |
75.4＋
63.0＋
50.5＋
42.1＋ |
69.3＋
57.8＋
46.3＋
38.6＋ |
61.7＋
52.9＋
42.7＋
35.6＋ |
50.9＋
43.6＋
36.1＋
30.9＋ |
46.7＋
39.1＋
31.5＋
26.4＋ |
41.4＋
34.8＋
28.0＋
23.5＋ |
37.3＋
31.3＋
25.2＋
21.1＋ |
27.6＋
23.1＋
18.5＋
15.5＋ |
23.8＋
20.9＋
17.9＋
15.5＋ |
21.8＋
18.2＋
14.6＋
12.3＋ |
18.9＋
15.8＋
12.8＋
10.7＋ |
|
3KC225N |
1800
1500
1200
1000 |
132
116＋
95.9＋
79.9＋ |
132
116＋
95.9＋
79.9＋ |
131
110＋
88.5＋
74.3＋ |
118＋
98.6＋
79.1＋
66.1＋ |
108＋
90.9＋
73.3＋
61.4＋ |
96.6＋
81.4＋
65.6＋
55.0＋ |
73.0＋
60.9＋
48.8＋
40.7＋ |
66.2＋
55.2＋
44.3＋
36.9＋ |
60.5＋
50.7＋
40.9＋
34.3＋ |
52.4＋
43.7＋
35.0＋
29.3＋ |
46.3＋
38.6＋
30.9＋
25.9＋ |
32.2＋
28.3＋
24.2＋
21.3＋ |
32.2＋
28.3＋
24.2＋
20.6＋ |
30.8＋
25.8＋
20.8＋
17.4＋ |
|
3KC250N |
1800
1500
1200
1000 |
215
185
153
132＋ |
198
170
141
121＋ |
176
151
125
108＋ |
158
136＋
113＋
96.5＋ |
146＋
126＋
104＋
88.0＋ |
135＋
116＋
95.6＋
80.1＋ |
120＋
102＋
81.5＋
68.0＋ |
109＋
92.7＋
74.7＋
62.6＋ |
95.8＋
80.0＋
64.1＋
55.3＋ |
87.6＋
73.4＋
59.2＋
49.6＋ |
74.9＋
64.4＋
53.5＋
45.9＋ |
57.3＋
48.5＋
39.0＋
32.7＋ |
57.3＋
49.5＋
39.9＋
33.4＋ |
43.9＋
38.7＋
33.1＋
29.1＋ |
|
3KC280N |
1800
1500
1200
1000 |
318
273
226
194＋ |
283
243
202
172＋ |
258
222
184
155＋ |
226
194
158＋
132＋ |
207
178
142＋
118＋ |
190
161＋
128＋
107＋ |
174
145＋
116＋
96.5＋ |
153
128＋
103＋
86.1＋ |
139＋
116＋
92.6＋
77.2＋ |
119＋
102＋
84.0＋
70.4＋ |
110＋
94.3＋
76.4＋
64.0＋ |
73.5＋
64.7＋
55.3＋
46.4＋ |
73.5＋
64.7＋
55.3＋
46.9＋ |
57.5＋
48.2＋
38.8＋
32.5＋ |
|
3KC315N |
1800
1500
1200
1000 |
443
380
315
270 |
406
348
289
248 |
371
318
264
227 |
325
279
232＋
199＋ |
297
255
211＋
182＋ |
276
237＋
197＋
169＋ |
252
217＋
180＋
154＋ |
229
191＋
154＋
128＋ |
208＋
174＋
140＋
117＋ |
182＋
152＋
122＋
102＋ |
145＋
122＋
98.1＋
82.2＋ |
115＋
96.4＋
77.6＋
65.0＋ |
115＋
96.4＋
77.7＋
65.1＋ |
95.2＋
79.7＋
64.2＋
53.8＋ |
|
3KC355N |
1800
1500
1200
1000 |
647*
566
469
391 |
605*
519
430
369 |
537*
461
382
321 |
484
415
345
296＋ |
430
367
295
247＋ |
411
353
293＋
247＋ |
362
303
244＋
204＋ |
319
267
214＋
179＋ |
271
226＋
182＋
152＋ |
247
210＋
168＋
140＋ |
226
190＋
152＋
126＋ |
130＋
115＋
98.1＋
86.4＋ |
130＋
115＋
98.1＋
86.4＋ |
114＋
95.9＋
77.3＋
64.8＋ |
|
3KC400N |
1800
1500
1200
1000 |
841*
714
587
501 |
750*
638
526
450 |
680*
579
478
410 |
594
508
423
365＋ |
540
462
383
329＋ |
502
430
357＋
308＋ |
457
392
326＋
281＋ |
410
352
293＋
249＋ |
378
316
254＋
212＋ |
358
309＋
254＋
212＋ |
321
275＋
230＋
193＋ |
215＋
189＋
159＋
133＋ |
204＋
179＋
153＋
135＋ |
187＋
157＋
126＋
106＋ |
注：1、功率：功率為額定值，使用系數FS＝1.0。也制造功率大的減速器。
2、潤滑：除根據齒輪圓周速度需要用壓力潤滑或浸油潤滑之外，用飛濺潤滑。
3、冷卻：如果實際傳遞的機械功率大于熱功率需要用人工冷卻。
4、*表示要求壓力潤滑，+表示要求浸油潤滑。
熱 功 率
|
減速器型號 |
熱功率/kW | |
|
PTN
20＜i≤40 |
PTN
40＜i≤90 | |
|
3KC140N
3KC160N |
29
36 |
31
39 |
|
3KC180N
3KC200N |
44
55 |
48
60 |
|
3KC225N |
78 |
85 |
|
減速器型號 |
熱功率/kW | |
|
PTN
20＜i≤40 |
PTN
40＜i≤90 | |
|
3KC250N |
92 |
100 |
|
3KC280N
3KC315N |
114
142 |
125
155 |
|
3KC355N
3KC400N |
174
215 |
190
235 |
注：PTN＝環境溫度20℃時額定熱功率。減速器裝有風扇。
精確傳動比
|
減速器
型號 |
精確傳動比iex | |||||||||||||
|
20 |
22.5 |
25 |
28 |
31.5 |
35.5 |
40 |
45 |
50 |
56 |
63 |
71 |
80 |
90 | |
|
3KC140N
3KC160N
3KC180N
3KC200N
3KC225N
3KC250N
3KC280N
3KC315N
3KC355N
3KC400N |
20.785
20.733
20.730
20.758
20.855
20.263
19.649
20.458
19.919
20.027 |
23.063
23.091
23.685
23.571
23.005
22.396
22.632
22.697
22.105
22.697 |
25.375
25.080
25.127
25.161
25.499
25.874
25.263
25.343
25.526
25.343 |
27.955
27.932
27.709
28.571
27.828
29.255
29.563
29.596
28.824
29.549 |
30.758
30.842
32.069
31.539
30.845
32.083
33.000
33.046
33.284
32.993 |
35.662
34.202
35.568
35.417
34.817
35.461
36.311
35.938
35.000
35.938 |
40.039
38.627
39.793
39.545
39.150
40.967
40.533
40.127
40.417
40.127 |
43.973
44.371
45.709
43.665
43.904
45.833
44.756
45.000
45.000
45.662 |
50.959
49.162
50.200
49.334
49.257
52.140
50.667
50.622
50.987
50.622 |
55.966
56.472
57.664
55.085
55.387
58.333
56.296
56.769
56.652
54.738 |
62.395
62.876
64.203
61.847
61.420
63.873
62.160
63.639
63.077
62.288 |
70.357
70.993
73.135
69.864
70.247
71.772
71.111
71.973
71.852
69.424 |
78.440
79.044
81.429
78.440
77.808
80.298
78.518
80.713
80.000
79.000 |
88.245
90.022
92.738
89.334
88.717
90.335
89.424
91.923
90.000
88.875 |
2PC125N～400N型兩級斜齒輪減速器
此類減速器見下表。

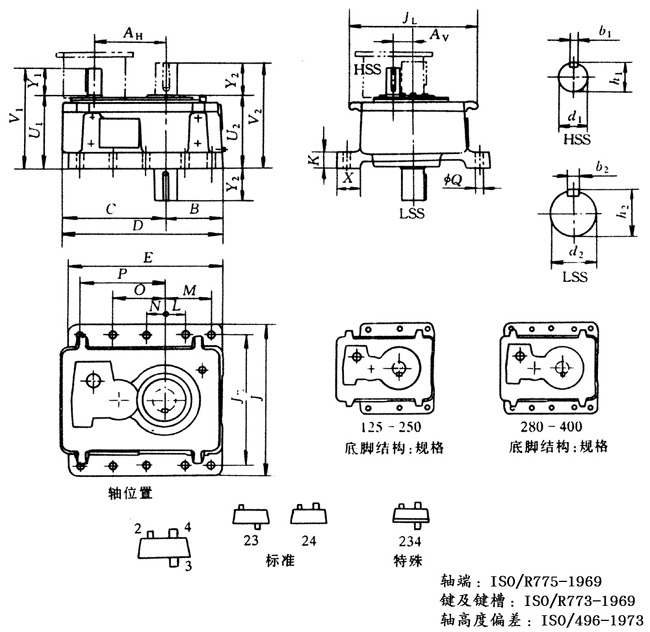

外 形 尺 寸
|
減速器型號 |
減速箱尺寸/mm | ||||||||||||||||
|
AH |
AV |
B |
C |
D |
E |
J |
JE |
JL |
K |
L |
M |
N |
O |
P |
Q×PCS |
X | |
|
2PC125N |
190.3 |
61.9 |
155 |
310 |
465 |
310 |
460 |
400 |
420 |
48 |
- |
125 |
- |
- |
125 |
18.5×4 |
66 |
|
2PC160N
2PC200N |
238.5
310.0 |
77.1
86.6 |
200
255 |
385
470 |
585
725 |
400
510 |
560
680 |
490
580 |
516
570 |
60
76 |
-
- |
160
200 |
-
- |
-
- |
160
200 |
24×4
35×4 |
78
105 |
|
2PC225N
2PC250N |
352.5
391.9 |
96.7
110.7 |
275
305 |
514
572 |
789
877 |
550
610 |
724
820 |
620
700 |
605
706 |
84
94 |
-
- |
225
250 |
-
0 |
-
- |
225
250 |
42×4
42×6 |
108
130 |
|
2PC280N
2PC315N |
437.8
490.1 |
122.8
141.4 |
350
385 |
636
710 |
986
1095 |
940
1050 |
940
1020 |
810
890 |
790
888 |
105
111 |
-
- |
280
315 |
120
140 |
-
- |
520
595 |
48×6
48×6 |
148
150 |
|
2PC355N
2PC400N |
548.8
629.9 |
158.0
159.9 |
432
466 |
801
955 |
1233
1421 |
1208
1332 |
1112
1162 |
980
1030 |
1008
1044 |
117
123 |
-
100 |
355
400 |
0
200 |
355
500 |
710
800 |
48×8
48×10 |
152
155 |
|
減速器型號 |
軸尺寸/mm |
重量/kg |
油量/L | ||||||||||||||||
|
輸入軸 |
輸出軸 | ||||||||||||||||||
|
5.9＜i≤13 |
13＜i≤21 | ||||||||||||||||||
|
U1 |
Y1 |
V1 |
d1 |
b1 |
h1 |
Y1 |
V1 |
d1 |
b1 |
h1 |
U2 |
Y2 |
V2 |
d2 |
b2 |
h2 | |||
|
2PC125N |
256 |
80 |
336 |
30k6 |
8h9 |
33 |
60 |
316 |
28k6 |
8h9 |
31 |
260 |
105 |
365 |
60m6 |
18h9 |
64 |
128 |
13 |
|
2PC160N
2PC200N |
325
379 |
110
110 |
435
489 |
40k6
55m6 |
12h9
16h9 |
43
59 |
80
110 |
405
489 |
35k6
50k6 |
10h9
14h9 |
38
53.5 |
330
380 |
105
130 |
435
510 |
75m6
95m6 |
20h9
25h9 |
79.5
100 |
230
380 |
26
52 |
|
2PC225N
2PC250N |
419
463 |
140
140 |
559
603 |
65m6
75m6 |
18h9
20h9 |
69
79.5 |
110
140 |
529
603 |
55m6
65m6 |
16h9
18h9 |
59
69 |
420
470 |
165
165 |
585
635 |
110m6
120m6 |
28h9
32h9 |
116
127 |
550
865 |
70
95 |
|
2PC280N
2PC315N |
450
510 |
170
170 |
620
680 |
85m6
90m6 |
22h9
25h9 |
90
95 |
140
170 |
590
680 |
76m6
85m6 |
20h9
22h9 |
79.5
90 |
455
510 |
200
200 |
655
710 |
140m6
150m6 |
36h9
36h9 |
148
158 |
1200
1370 |
100
140 |
|
2PC355N
2PC400N |
555
630 |
210
210 |
765
830 |
100m6
110m6 |
28h9
28h9 |
106
116 |
170
210 |
725
830 |
90m6
100m6 |
25h9
28h9 |
95
106 |
560
630 |
240
280 |
800
910 |
170m6
190m6 |
40h9
45h9 |
179
200 |
1500
1640 |
190
215 |
額定機械功率
|
減速器型號 |
n1/(r/min) |
額定機械功率PN1/kW | ||||||||||
|
公稱傳動比iN | ||||||||||||
|
6.3 |
7.1 |
8.0 |
9.0 |
10.0 |
11.2 |
12.5 |
14.0 |
16.0 |
18.0 |
20.0 | ||
|
2PC125N |
1800
1500
1200
1000 |
66.7
58.7＋
50.2＋
42.1＋ |
62.5
55.0＋
45.4＋
37.9＋ |
57.2＋
50.3＋
40.3＋
33.6＋ |
53.6＋
45.7＋
36.6＋
30.5＋ |
48.4＋
40.4＋
32.3＋
27.0＋ |
46.0＋
38.3＋
30.7＋
25.6＋ |
37.9＋
31.6＋
25.3＋
21.2＋ |
32.5＋
27.2＋
21.8＋
18.2＋ |
29.1＋
24.3＋
19.5＋
16.3＋ |
19.6＋
16.4＋
13.1＋
11.0＋ |
17.2＋
14.4＋
11.5＋
9.65＋ |
|
2PC160N |
1800
1500
1200
1000 |
118
104
88.9＋
78.3＋ |
108
94.8
81.1＋
71.4＋ |
98.7
86.9＋
74.3＋
65.1＋ |
91.5
80.5＋
68.9＋
59.7＋ |
85.3
75.0＋
63.4＋
54.9＋ |
78.1
68.7＋
58.1＋
50.4＋ |
70.6
62.2＋
52.4＋
44.8＋ |
61.8＋
51.7＋
41.5＋
34.6＋ |
57.0＋
47.6＋
38.2＋
31.9＋ |
51.2＋
42.8＋
34.4＋
28.7＋ |
43.2＋
36.3＋
29.3＋
24.6＋ |
|
2PC200N |
1800
1500
1200
1000 |
274
242
207
182＋ |
256
225
193
170＋ |
233
205
175
154＋ |
213
187
159＋
133＋ |
198
174
145＋
121＋ |
176
155
132＋
111＋ |
162
143＋
119＋
99.2＋ |
150
131＋
105＋
88.4＋ |
137
115＋
92.6＋
77.7＋ |
112
93.2＋
75.1＋
63.0＋ |
99.6＋
83.3＋
67.2＋
56.4＋ |
|
2PC225N |
1800
1500
1200
1000 |
432
380
325
286 |
397
349
299
261 |
360
317
271
228＋ |
336
295
248
207＋ |
311
274
224＋
187＋ |
304
254
203＋
170＋ |
270
225
180＋
151＋ |
221
185
148＋
124＋ |
199
167
134＋
112＋ |
178
150＋
121＋
101＋ |
146
122＋
98.6＋
82.7＋ |
|
2PC250N |
1800
1500
1200
1000 |
540
472
398
346 |
499
434
366
319 |
450
392
331
288 |
416
362
306
266＋ |
379
330
279
239＋ |
370
321
270
230＋ |
342
297
247
211＋ |
305
265
217＋
186＋ |
253
217
180＋
155＋ |
231
198
161＋
136＋ |
193
166
138＋
118＋ |
|
2PC280N |
1800
1500
1200
1000 |
831
725
611
532 |
777
675
568
495 |
700
608
497
416 |
640
557
470
409 |
591
514
434
366 |
545
480
406
344 |
493
432
349
293＋ |
448
377
305
256＋ |
373
320
265
228＋ |
344
295
245＋
210＋ |
283
243
202＋
173＋ |
|
2PC315N |
1800
1500
1200
1000 |
1084
946
798
694 |
999
869
733
638 |
909
791
668
582 |
826
719
607
529 |
755
658
556
479 |
724
629
530
452 |
667
580
485
412 |
612
532
439
373＋ |
535
458
380
326＋ |
486
417
346
297＋ |
400
343
284
244＋ |
|
2PC355N |
1800
1500
1200
1000 |
1607*
1414
1210
1060 |
1485
1307
1118
971 |
1370
1206
1021
887 |
1245
1090
917
797 |
1144
993
837
722 |
1069
941
805
693 |
990
872
743
624 |
856
717
577
482 |
776
665
551
473 |
710
609
504
433＋ |
583
500
414
355＋ |
|
2PC400N |
1800
1500
1200
1000 |
1875*
1641
1389
1213 |
1705*
1488
1260
1101 |
1581*
1380
1170
1022 |
1448
1265
1072
937 |
1334
1166
989
858 |
1243
1083
916
791 |
1129
984
829
710 |
1037
905
754
646 |
982
854
700
597 |
887
761
625
533 |
847
738
602
512 |
注：1、功率：功率為額定值，使用系數FS＝1.0。也制造功率大的減速器。
2、潤滑：不宜用飛濺潤滑和浸油潤滑時采用壓力潤滑。當用壓力潤滑時，上面軸承的潤滑用軸動泵或壓力潤滑裝置。當用飛濺潤滑時，建議上面軸承用壓力潤滑。
3、冷卻：如果實際傳遞的機械功率大于熱功率需要用人工冷卻。
4、*表示要求壓力潤滑，+表示要求浸油潤滑。
熱功率
|
減速器型號 |
熱功率/kW | |
|
PTN
5.9＜i≤13 |
PTN
13＜i≤21 | |
|
2PC125N |
36 |
38 |
|
2PC160N
2PC200N |
56
78 |
61
84 |
|
2PC225N
2PC250N |
93
118 |
106
127 |
|
減速器型號 |
熱功率/kW | |
|
PTN
5.9＜i≤13 |
PTN
13＜i≤21 | |
|
2PC280N
2PC315N |
140
175 |
151
189 |
|
2PC355N
2PC400N |
220
278 |
231
300 |
注：PTN＝環境溫度＋20℃時額定熱功率。
精確傳動比
|
減速器型號 |
精確傳動比iex | ||||||||||
|
6.3 |
7.1 |
8.0 |
9.0 |
10.0 |
11.2 |
12.5 |
14.0 |
16.0 |
18.0 |
20.0 | |
|
2PC125N
2PC160N
2PC200N
2PC225N
2PC250N
2PC280N
2PC315N
2PC355N
2PC400N |
6.3448
6.1533
6.2222
6.2934
6.4211
6.2105
6.4444
6.4444
6.2353 |
7.0612
6.9964
6.8627
7.0829
7.1460
6.9351
7.1963
7.1963
7.0667 |
7.9791
7.9040
7.8279
8.1459
8.1410
7.9134
8.1075
8.0036
7.7941 |
8.8009
8.8029
8.8889
8.9858
9.0142
8.8189
9.1511
9.1511
8.7534 |
9.9704
9.7200
9.8120
9.9600
10.167
9.6608
10.286
10.162
9.7426 |
11.058
10.972
11.301
11.050
11.083
10.980
11.425
11.131
11.029 |
12.702
12.337
12.691
12.473
12.250
12.647
12.675
12.353
12.500 |
14.074
14.234
14.171
14.025
14.152
14.118
14.153
14.265
13.957 |
16.167
16.005
15.818
15.660
16.387
16.000
16.051
16.167
16.051 |
18.061
17.748
17.466
17.366
18.333
17.667
18.000
18.000
18.265 |
20.109
19.761
19.610
19.475
20.074
19.630
20.178
20.000
19.750 |
| 頁次：3/5 每頁10條 共47條信息 分頁：[1][2][3][4][5] |
