NGW型行星齒輪減速器(JB/T6502-93)

NGW型行星齒輪減速器包括單級、兩級、三級減速的十二個系列和八個派生系列的漸開線直齒圓柱齒輪行星減速器。主要用于冶金、礦山、運輸、建材、能源、交通等。其工作條件如下：規格為200～800，高速軸轉速不大于1500r/min；規格為900～1120，高速軸轉速不大于1000r/min；規格為1250～1600，高速軸轉速不大于750r/min；規格為1800～2000，高速軸轉速不大于600r/min；齒輪圓周速度不大于15～20m/s；工作環境溫度應為-40～+45℃；可正反兩向運轉。

減速器的代號和標記方法

減速器的代號包括：型號、級別、聯接型式、規格代號、規格、傳動比、裝配型式、標準號。

其標記符號如下：

N－NGW（N－內嚙合、G－公用齒輪、W－外嚙合）型；

A－單級行星齒輪減速器，B－兩級行星齒輪減速器，C－三級行星齒輪減速器；

Z－定軸圓柱齒輪，S－螺旋錐齒輪，D－底座聯接，F－法蘭聯接，L－立式行星減速器。

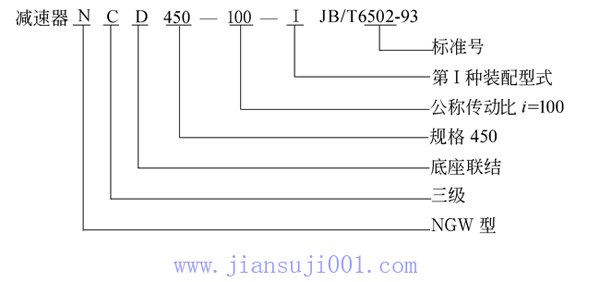

標記示例：

傳動型式與輸出轉矩

規格	傳動型式	輸出轉矩 T( kN·m)	規格	傳動型式	輸出轉矩 T( kN·m)
200 ～560 ～2000		1.4 ～80 ～2796	250 ～560	*	4.7 ～80.4
200 ～560 ～1600		1.7 ～42.2 ～938.8	315 ～560		12.6 ～80.5
200 ～560 ～2000		5.3 ～83.54 ～2973	200 ～560	*	1.4～80
250 ～560 ～1600		4.7～80.4 ～1632	200 ～560	*	1.4～80
315 ～560 ～2000		12.3 ～83.7 ～2987	250 ～560	*	2～99
315 ～560 ～2000		12.6 ～80.5 ～2522	250 ～560	*	2～99
200 ～560		1.7 ～42.2

注：標*者為母標準的派生系列標準。

NGW減速器的型號規格

規格代號	1	2	3	4	5	6	7	8	9	10
NAD，NAF	200	224	250	280	315	355	400	450	500	560
規格代號	11	12	13	14	15	16	17	18	19	20	21	22
NAD	560	630	710	800	900	1000	1120	1250	1400	1600	1800	2000
規格代號	1	2	3	4	5	6	7	8
NBD，NBF	250	280	315	355	400	450	500	560
規格代號	9	10	11	12	13	14	15	16	17	18	19	20
NBD	560	630	710	800	900	1000	1120	1250	1400	1600	1800	2000
規格代號	1	2	3	4	5	6
NCD，NCF	315	355	400	450	500	560
規格代號	7	8	9	10	11	12	13	14	15	16	17	18
NCD	560	630	710	800	900	1000	1120	1250	1400	1600	1800	2000
規格代號	1	2	3	4	5	6	7	8	9	10
NAZD，NAZF	200	224	250	280	315	355	400	450	500	560
規格代號	11	12	13	14	15	16	17	18	19	20
NAZD	560	630	710	800	900	1000	1120	1250	1400	1600
規格代號	1	2	3	4	5	6	7	8
NBZD，NBZF	250	280	315	355	400	450	500	560
規格代號	9	10	11	12	13	14	15	16	17	18
NBZD	560	630	710	800	900	1000	1120	1250	1400	1600
規格代號	1	2	3	4	5	6
NCZD，NCZF	315	355	400	450	500	560
規格代號	7	8	9	10	11	12	13	14	15	16	17	18
NCZD	560	630	710	800	900	1000	1120	1250	1400	1600	1800	2000

首先按減速器機械許用輸入功率P_IP選用。如果減速器的實際輸入轉速與承載能力表中的四檔(1500、1000、750、600)轉速之某一檔轉速相對誤差不超過4%，可按該檔轉速下的許用功率選用相應規格的減速器；如果轉速相對誤差超過4%，則應按實際轉速折算減速器的許用功率選用，然后校核減速器熱平衡許用功率；如入出軸承受徑向載荷(除轉矩外)，應校核軸伸安全系數。

① 按減速器機械強度限制的承載能力P_IP選定。

公稱傳動比i				4	4.5	5	5.6	6.5	7.1	8	9	10	11.2	12.5	14	16	18
型號規格	NAD NAF NAZD NAZF	200 280 355 400 560 710 800 1120 1400 1500	實際傳動比i′	4.2	4.636	5.211	5.647	6.316	7.313	7.8	8.769	10.88	11.79	12.58	14.40	15.46	17.93
		315 630 1250		4.2	4.636	5.211	5.647	6.3	7.235	7.688	9.231	10.88	11.79	12.58	14.40	15.41	17.93
		224 250 450 500 900 1000 1800 2000		4.111	4.5	5	5.667	6.316	7.313	7.8	8.769	10.44	11.83	12.62	14.45	15.51	18.00

公稱傳動比i				20	22.4	25	28	31.5	35.5	40	45	50	56	65	71	90	90	100	112	125
型號規格	NBD NBF NBZD NBZF	250 450 500 900 1000	實際傳動比 i′	21.42	23.21	25.97	30.06	32.91	35.10	39.46	43.85	49.69	62.74	66.94	73.29	83.92	90.07	96.07	111.5	123.9
		280 315 560 1120		21.00	23.80	26.53	30.71	33.90	36.16	40.65	45.70	49.52	64.09	68.39	75.50	86.45	92.78	98.97	114.8	129.1
		355 630 800 1250 1600		21.89	23.71	26.53	30.71	33.98	36.16	40.65	45.70	49.52	64.09	68.39	75.50	86.45	92.78	98.97	114.8	129.1
		400 710 1400		21.89	23.71	26.46	30.39	33.54	35.64	42.79	41.10	52.12	63.42	67.68	74.69	85.53	91.80	97.55	113.2	127.2
		1800 2000		20.56	23.30	25.97	30.06	32.91	35.10	39.46	43.85	49.69	62.74	66.94	73.29	83.92	90.07	96.07	111.5	123.9

公稱傳動比i				112	125	140	160	180	200	224	250	280	315	355	400
型號規格	NCD NCF	315 560 1120	實際傳動比i′	118.6	132.6	150.3	167.6	194.0	206.9	239.5	264.4	282.0	317.1	356.4	386.2
		355 630 1250		124.1	138.3	149.8	167.6	194.0	206.9	239.5	264.4	282.0	317.1	356.4	386.2
		400 710 1400		123.6	138.3	149.8	167.1	193.5	206.4	237.0	261.6	278.0	312.5	351.3	380.7
		450		121.0	135.3	146.5	163.9	190.0	202.6	234.5	256.7	273.8	307.8	342.0	387.6
		500 900 1600		121.0	134.9	146.3	163.6	187.9	199.7	231.1	253.0	269.8	324.0	360.0	408.0
		800 1600		123.6	138.3	149.8	167.6	194.0	206.9	239.5	264.4	282.0	317.1	356.4	386.2
		1000 2000		116.1	129.8	147.1	165.9	190.0	202.6	234.5	256.7	273.8	307.8	342.0	387.6
公稱傳動比i				355	400	450	500	560	630	710	800	900	1000	1120	1250
型號規格	NCZD NCZF	315 355 550 650 800 1120 1250 1600	實際傳動比i′	373.2	432.0	494.7	527.6	610.7	674.2	719.1	771.8	867.9	1007.1	1131.9	1226.6
		400 710 1400		372.1	430.9	493.4	526.3	604.4	667.1	708.9	760.9	855.3	992.5	1115.7	1209.1
		450 1000		365.0	423.1	484.5	516.6	600.0	654.6	698.2	749.4	842.4	977.6	1086.2	1231.0
		500 900		364.3	418.5	479.1	509.2	589.3	645.2	688.0	738.4	885.8	1029.0	1143.4	1295.8

NAD、NAF減速器高速軸許用輸入功率P_IP (kW)

<TD width="10%" ,

NAD、NAF型行星齒輪減速機熱功率JB/T6502-93

規格	n₁ (r/min)	公稱傳動比i
規格	n₁ (r/min)	4	4.5	5	5.6	6.3	7.1	8	9
200	600	54.5	45.0	34.2	28.4	23.3	16.1	13.9	10.0
	750	68.0	56.4	43.1	35.7	29.2	20.1	17.5	12.5
	1000	86.2	73.0	55.9	47.9	39.2	27.0	23.4	16.9
	1500	132.7	111.1	84.8	70.3	57.6	39.7	34.4	25.6
224	600	89.0	78.5	61.9	47.4	35.5	24.3	21.0	15.0
	750	109.8	95.6	77.8	59.5	44.6	30.5	26.4	18.8
	1000	144.5	125.7	101.1	77.4	59.9	40.9	35.4	25.3
	1500	218.0	193.3	153.3	117.3	87.9	60.1	52.0	37.1
250	600	105.8	95.1	76.3	58.7	46.3	31.8	27.7	19.9
	750	131.7	114.6	92.9	73.7	58.1	40.0	34.7	24.9
	1000	174.5	153.1	124.7	95.8	75.5	53.8	46.6	33.5
	1500	258.6	233.6	189.0	145.3	114.4	78.8	68.5	49.2
280	600	168.7	139.8	106.2	87.6	68.1	46.4	40.1	28.4
	750	212.0	170.1	129.2	110.1	85.6	58.3	50.4	35.7
	1000	284.9	228.6	173.7	143.2	111.3	75.8	67.6	48.0
	1500	414.4	346.7	263.4	217.2	168.8	114.9	99.3	70.5
315	600	226.6	187.3	147.1	121.9	96.3	67.5	59.1	38.2
	750	281.4	235.5	179.0	148.4	117.1	84.9	74.3	45.9
	1000	389.9	316.4	240.6	199.4	157.3	110.4	96.7	61.6
	1500	552.6	460.1	364.8	302.5	238.3	167.4	146.7	90.4
355	600	351.2	284.4	217.0	179.1	140.5	95.9	82.9	59.1
	750	437.1	357.5	272.7	225.3	171.1	120.6	104.2	74.2
	1000	578.6	480.4	366.5	310.4	229.8	156.8	135.6	96.5
	1500	855.8	698.4	532.9	440.4	348.2	237.7	205.7	146.4
400	600	432.5	367.3	280.1	232.3	190.4	135.4	117.6	84.4
	750	538.0	461.8	352.3	292.1	239.2	164.8	143.1	106.2
	1000	711.6	620.5	473.3	392.6	321.3	221.4	192.2	138.2
	1500	1067.5	901.4	688.1	571.1	467.1	335.7	291.6	209.6
450	600	702.5	621.2	506.6	387.6	290.5	198.6	177.6	126.7
	750	872.7	772.9	636.9	487.3	365.1	249.7	216.1	154.1
	1000	1152.1	1022.8	855.4	654.7	490.4	335.4	290.4	207.2
	1500	1694.4	1511.1	1242.1	951.7	712.5	487.8	440.3	314.3
500	600	831.2	749.3	624.5	480.2	378.3	260.6	226.2	167.8
	750	1032.0	931.7	785.1	603.8	475.4	327.5	284.4	204.4
	1000	1360.8	1231.5	1011.4	811.1	638.6	440.1	382.2	274.6
	1500	1997.4	1815.7	1530.0	1178.3	927.3	639.7	556.5	416.6
560	600	1296.6	1113.6	847.8	700.2	545.2	372.3	322.0	229.4
	750	1609.2	1400.0	1065.9	880.5	685.4	468.0	404.8	288.4
	1000	2120.4	1802.9	1373.3	1134.9	920.2	628.6	543.9	385.0
	1500	3107.6	2724.0	2077.4	1718.4	1335.6	913.6	790.7	564.0
630	600	1675.8	1476.7	1172.1	972.9	732.1	540.9	474.2	293.5
	750	2077.6	1834.0	1473.5	1223.4	907.1	680.0	596.1	369.2
	1000	2732.9	2419.5	1897.7	1576.4	1192.2	913.1	800.7	496.1
	1500	3991.9	3554.1	2867.5	2385.0	1738.6	1325.5	1163.2	721.8
710	600	2686.1	2362.3	1832.8	1514.2	1148.8	784.2	678.3	483.0
	750	3326.6	2895.8	2210.0	1826.5	1443.8	985.8	852.8	607.4
	1000	4368.0	3865.8	2965.6	2452.4	1858.6	1270.0	1145.6	816.3
	1500	6358.9	5670.1	4475.5	3706.4	2806.1	1921.5	1663.9	1187.1
800	600	3280.8	2893.9	2366.9	1963.5	1543.6	1107.2	961.6	691.0
	750	4058.6	3588.7	2853.4	2368.1	1908.7	1391.9	1209.0	869.1
	1000	5319.9	4722.1	3827.0	3178.2	2500.1	1792.7	1557.6	1120.3
	1500	-	6902.4	5673.6	4797.8	3622.4	2709.6	2356.2	1693.3
900	600	5284.6	4703.5	4101.3	3139.8	2412.4	1677.3	1452.3	1036.4
	750	6522.4	5822.2	5131.6	3945.1	2953.9	2022.4	1825.8	1303.4
	1000	8517.6	7639.1	6713.5	5289.4	3892.7	2713.9	2351.3	1680.0
	1500	-	-	9705.3	7834.7	5615.6	4097.3	3553.1	2543.7
1000	600	6217.3	5640.7	4888.3	3890.1	2941.6	2200.4	1911.2	1373.7
	750	7664.2	6973.6	6033.3	4886.3	3627.0	2652.8	2304.6	1727.7
	1000	9989.0	9131.3	7878.9	6530.2	4278.7	3542.9	3092.7	2226.4
	1500	-	-	-	9434.4	6791.7	5365.2	4668.2	3368.3
1120	600	9623.9	8516.5

規格		200	224	250	280	315	355	400	450	500	560	630	710	800	900	1000	1100	1250	1400	1600	1800	2000
散熱冷卻條件		P_G1(kW)
沒有冷卻措施	環境條件	P_G1(kW)
	小空間小廠房	6	9	12	17	24	30	37	49	61	73	90	111	145	182	237	285	375	453	610	816	1095
	較大空間或廠房	9	13	18	26	36	45	55	74	92	110	135	166	217	273	356	425	563	679	915	1224	1643
	戶外露天	12.5	15	25	37	51	64	78	104	150	155	190	254	506	585	502	599	794	957	1290	1725	2316
稀油站循環油潤滑		P_G2按P₁、工況條件、稀油站的流量和容積來確定

NBD、NBF型行星齒輪減速機高速軸許用輸入功率JB/T6502-93

NBD、NBF減速器高速軸許用輸入功率P_IP ( kW)

規格	n₁ (r/min)	公稱傳動比i
規格	n₁ (r/min)	20	22.4	25	28	31.5	35.5	40	45	50
250	600	20.5	18.9	13.9	11.4	11.4	10.2	7.6	7.6	7.6
	750	25.6	23.7	17.3	14.2	14.2	12.8	9.6	9.6	9.4
	1000	34.1	31.5	23.0	18.9	18.9	17.2	12.9	12.9	12.2
	1500	51.1	47.2	34.1	28.2	28.2	25.3	19.5	19.5	17.6
280	600	35.0	30.9	22.8	18.6	18.6	16.3	12.1	12.1	11.5
	750	43.7	38.6	28.4	23.2	23.2	20.5	15.3	15.3	14.1
	1000	58.3	51.5	37.7	31.1	31.1	27.5	20.4	20.4	18.2
	1500	85.6	75.4	56.0	45.9	45.9	40.4	30.0	30.0	26.2
315	600	45.7	38.9	28.1	23.2	23.2	20.9	15.6	15.6	15.6
	750	57.1	48.5	35.1	28.9	28.9	26.2	19.6	19.6	19.5
	1000	76.0	64.3	46.4	38.4	38.4	35.2	26.3	26.3	25.3
	1500	113.8	95.5	68.8	56.9	56.9	51.7	38.5	38.5	35.1
355	600	68.3	60.5	41.9	34.5	34.5	30.5	22.6	22.6	22.6
	750	85.3	76.0	52.3	43.1	43.1	38.2	28.3	28.3	28.3
	1000	113.6	98.9	69.3	56.5	56.5	51.4	38.1	38.1	38.1
	1500	170.0	150.5	102.8	85.0	85.0	75.4	56.0	56.0	53.2
400	600	84.3	77.8	52.7	43.8	43.8	41.3	28.2	28.2	28.2
	750	105.3	97.2	65.5	54.6	54.6	51.5	35.4	35.4	35.4
	1000	140.2	129.4	86.7	72.4	72.4	68.4	47.6	47.6	47.6
	1500	209.6	193.6	128.3	107.3	107.3	101.4	69.8	69.8	65.8
450	600	137.1	124.1	84.6	69.8	69.8	63.1	46.9	46.9	46.9
	750	171.1	156.0	105.3	86.9	86.9	79.3	52.8	52.8	52.8
	1000	228.4	208.6	139.4	115.2	115.2	103.1	76.6	76.6	76.6
	1500	341.7	304.9	205.8	170.6	170.6	156.4	116.3	116.3	115.0
500	600	163.1	150.5	110.2	91.0	91.0	85.5	64.5	64.5	62.5
	750	203.5	187.9	137.0	113.2	113.2	105.0	81.0	81.0	78.2
	1000	270.8	250.0	181.1	149.8	149.8	141.0	105.4	105.4	98.6
	1500	404.2	373.5	266.9	221.5	221.5	208.5	159.8	159.8	142.3
560	600	265.4	234.3	180.7	149.3	149.3	137.9	102.5	102.5	94.4
	750	331.3	292.5	224.6	185.7	185.7	167.89	124.6	124.6	115.4
	1000	440.6	389.3	296.5	245.5	245.5	225.5	167.5	167.5	143.7
	1500	657.7	581.4	436.0	362.2	362.2	341.1	254.1	251.9	207.4
630	600	330.4	305.0	272.9	235.8	235.8	193.7	172.3	150.5	129.1
	750	412.4	380.7	340.6	294.5	294.5	241.9	215.3	185.8	153.8
	1000	548.3	506.4	453.2	391.9	391.9	322.0	286.7	241.0	199.4
	1500	818.1	755.8	676.8	585.6	585.6	481.7	428.9	348.0	288.0
710	600	531.5	490.7	410.3	342.8	342.8	314.9	230.6	230.2	194.3
	750	663.2	612.4	508.2	425.1	425.1	393.2	289.9	277.2	228.3
	1000	881.6	814.2	667.4	559.5	559.5	523.5	389.5	359.6	296.1
	1500	1314.3	1214.4	971.8	818.3	818.3	773.8	566.6	519.2	427.6
800	600	651.6	601.6	538.3	465.4	407.0	381.7	339.6	297.1	253.3
	750	812.3	750.6	671.8	580.9	508.2	476.6	324.2	371.0	309.9
	1000	1080.0	997.6	893.2	772.6	676.3	634.4	564.7	486.2	402.0
	1500	1609.1	1487.0	1332.2	1153.3	1010.7	948.2	844.4	702.3	580.7
900	600	1057.9	976.9	844.9	700.0	665.8	624.4	527.4	493.9	405.1
	750	1318.9	1218.2	1044.3	866.3	831.1	779.5	663.2	616.5	505.8
	1000	1751.1	1617.9	1366.8	1137.7	1105.5	1037.0	854.9	820.2	669.9
	1500	2604.7	2408.0	1977.4	1655.0	1650.7	1548.9	1295.0	1224.7	968.0
1000	600	1301.8	1150.2	1033.1	893.4	802.0	752.2	669.5	583.8	481.1
	750	1662.4	1434.1	1288.4	1114.6	1001.0	938.9	835.8	728.7	600.5
	1000	2152.8	1903.9	1711.3	1481.1	1331.1	1248.8	1111.9	969.1	798.8
	1500	3198.2	2831.6	2547.2	2206.9	1986.4	1864.1	1660.7	1446.4	1192.7
1120	600	2019.9	1784.9	1603.2	1386.5	1211.1	1135.9	1011.0	885.7	759.8
	750	2517.1	2225.0	1999.1	1717.1	1511.5	1417.8	1262.1	1105.5	931.6
	1000	3339.0	2953.3	2654.7	2244.9	2010.1	1885.7	1679.1	1469.0	1209.4
	1500		4390.3	3857.9	3241.3	2999.4	2814.7	2507.7	2123.8	1748.5
1250	600	2496.3	2305.7	2064.3	1785.7	1565.4	1468.2	1307.0	1141.2	978.9
	750	3109.8	2873.0	2573.2	2226.8	1953.0	1832.0	1631.1	1423.9	1221.6
	1000	4123.2	3811.1	3415.1	2957.1	2595.9	2435.5	2169.2	1892.8	1624.1
	1500			5075.4	4400.1	3869.4	3631.8	3236.8	2822.2	2351.8
1400	600	3985.8	3682.0	3040.6	2554.1	2517.2	2370.3	1949.0	1732.9	1486.5
	750	4963.4	4586.4	3731.1	3142.3	3140.2	2957.2	2350.5	2162.0	1854.8
	1000	6575.3	6079.7	4827.6	4082.7	4082.7	3860.8	3154.7	2873.5	2465.7
	1500				5826.0	5826.0	5516.9	4685.7	4241.8	3492.7
1600	600	5380.0	4969.7	4449.8	3849.6	3040.3	2852.0	2539.2	2219.7	1904.3
	750	6700.8	6191.4	5545.6	4779.6	3791.7	3557.3	3167.9	2768.4	2375.4
	1000	8880.9	8209.6	7357.6	6371.9	5036.2	4726.0	4210.3	3677.4	3156.1
	1500						7038.3	6275.2	5475.1	4701.1
1800	600	7840.8	7243.4	6135.8	5118.6	4947.5	4640.8	4131.5	3671.2	1013.1
	750	9763.0	9012.8	7502.8	6279.0	6171.5	5789.6	5155.3	4579.7	3759.6
	1000			9653.6	8119.7	8119.7	7656.2	6853.7	6085.4	4997.9
	1500
2000	600	9564.1	8457.5	7601.2	6578.4	5912.5	5546.4	4938.5	4305.2	3549.6
	750	11899.5	10528.4	9466.3	8196.7	7372.2	6216.8	6160.2	5368.8	4427.7
	1000				10870.9	9789.0	9186.7	8185.4	7130.5	5883.1
	1500

NBD、NBF型行星齒輪減速機熱功率JB/T6502-93

NCD、NCF型行星齒輪減速機高速軸許用輸入功率JB/T6502-93

NCD、NCF減速器高速軸許用輸入功率P_IP

,

規格	n₁ (r/min)	公稱傳動比i
規格	n₁ (r/min)	112	125	140	160	180	200	225	250	280	315	355	400
315	600	8.1	7.2	6.3	4.8	4.1	3.9	3.2	3.2	2.9	2.7	2.5	2.2
	750	10.1	9.0	7.9	6.0	5.1	4.8	3.9	3.9	3.7	3.3	3.2	2.7
	1000	13.5	12.0	10.7	7.9	6.8	6.4	5.3	5.3	5.0	4.5	4.2	3.6
	1500	20.3	18.1	15.9	11.9	10.3	9.6	7.9	7.9	7.3	6.5	6.3	5.5
355	600	12.0	10.8	10.0	7.1	6.2	5.7	4.7	4.7	4.5	3.9	3.9	3.4
	750	15.1	13.6	12.4	8.9	7.7	7.2	5.9	5.9	5.6	5.0	5.0	4.2
	1000	20.1	18.1	16.6	11.9	10.2	9.6	7.9	7.9	7.3	6.6	6.6	5.6
	1500	30.1	27.1	24.5	17.8	15.4	14.4	11.9	11.9	10.5	9.5	9.5	8.5
400	600	14.9	13.4	12.3	9.0	7.8	7.3	6.0	6.0	5.6	5.1	5.0	4.2
	750	18.7	16.7	15.4	11.2	9.6	9.0	7.5	7.5	7.1	6.3	6.2	5.3
	1000	24.9	22.3	20.5	14.9	12.9	12.1	10.1	10.1	9.5	8.5	8.3	7.1
	1500	37.3	33.4	30.8	22.4	19.3	18.1	15.1	15.1	14.2	12.6	12.4	10.7
450	600	24.4	21.8	20.1	14.5	12.4	11.7	9.6	9.6	9.0	8.0	8.0	6.7
	750	30.5	27.2	25.2	18.1	15.6	14.7	12.0	12.0	11.3	10.1	10.1	8.4
	1000	40.7	36.3	33.5	24.1	20.8	19.5	16.0	16.0	15.1	13.4	13.4	11.2
	1500	61.0	54.5	50.4	36.1	31.1	29.2	23.8	23.8	21.8	19.7	19.7	16.8
500	600	28.9	26.0	23.9	18.9	16.5	15.5	12.8	12.8	12.0	10.0	9.2	7.6
	750	36.2	32.4	30.0	23.7	20.6	19.4	15.9	15.9	15.0	12.4	11.5	9.5
	1000	48.2	43.3	39.9	31.5	27.5	25.9	21.3	21.3	20.0	16.6	15.4	12.7
	1500	74.4	64.9	59.9	47.1	41.1	38.7	31.8	31.8	29.0	24.9	23.2	19.1
560	600	47.2	42.2	37.2	31.1	26.9	25.2	20.7	20.4	19.1	17.0	14.8	12.7
	750	58.9	52.7	46.5	38.9	33.5	31.5	25.9	25.5	23.8	21.2	18.6	15.9
	1000	78.6	70.3	62.0	51.7	44.7	41.9	34.5	34.0	31.8	28.3	24.8	21.3
	1500	117.8	105.4	93.0	77.4	66.8	62.8	51.6	50.9	45.8	41.2	37.2	31.9
630	600	58.6	52.6	48.5	43.4	37.4	35.1	30.3	26.6	24.9	22.1	19.3	16.5
	750	73.2	66.2	60.6	54.2	46.8	43.9	37.9	33.2	31.1	27.7	24.2	20.7
	1000	97.6	87.6	80.8	72.3	62.4	58.5	50.5	44.2	41.4	36.8	32.3	27.6
	1500	146.2	131.3	121.2	108.3	93.6	87.8	75.8	66.3	62.2	55.3	48.3	41.4
710	600	94.3	84.6	78.1	70.0	60.5	56.7	48.1	43.0	40.4	36.0	31.6	27.1
	750	117.9	105.8	97.6	87.5	75.6	70.8	60.0	53.8	50.6	45.0	39.5	33.9
	1000	157.1	141.0	130.1	116.7	100.8	94.5	79.9	71.6	67.4	60.0	52.7	45.2
	1500	235.5	211.3	195.0	174.9	151.1	141.6	119.5	107.5	101.1	90.0	78.9	67.7
800	600	116.1	103.8	95.8	85.7	74.0	69.4	60.0	52.3	49.1	43.6	38.2	32.8
	750	145.1	129.7	119.8	107.1	92.5	86.7	74.9	65.4	61.3	54.5	47.7	40.9
	1000	193.4	173.0	159.6	142.8	123.3	115.6	99.9	87.2	81.8	72.7	63.7	54.6
	1500	289.8	259.2	239.2	214.0	184.8	143.4	149.7	130.9	122.7	109.1	95.5	81.9
900	600	188.9	169.4	156.3	139.7	121.7	114.5	98.9	87.0	81.6	68.0	60.4	49.5
	750	236.0	211.6	195.3	174.6	152.1	143.1	123.6	108.8	102.0	84.9	75.5	61.9
	1000	314.5	281.9	260.2	232.7	202.7	190.8	164.8	145.0	135.9	113.2	100.7	82.6
	1500	470.9	422.3	389.8	348.7	303.7	285.9	247.0	217.3	203.7	169.7	150.9	123.8
1000	600	232.8	208.1	183.6	164.9	142.4	133.5	115.3	103.3	96.9	86.2	75.2	61.9
	750	290.7	260.1	229.5	206.0	177.9	166.8	144.1	129.2	121.1	107.7	94.0	77.4
	1000	387.4	346.5	305.9	274.5	237.1	222.3	192.1	172.2	161.5	143.6	125.3	103.2
	1500	580.1	519.0	458.1	411.2	355.3	333.2	287.9	258.1	242.0	215.3	187.9	154.7
1120	600	361.3	323.1	285.2	255.9	221.0	207.3	279.0	156.1	246.3	130.2	114.1	97.9
	750	451.4	403.7	356.4	319.8	276.3	259.0	223.8	195.1	182.9	162.7	142.7	122.4
	1000	601.3	537.9	474.8	426.1	368.2	345.2	298.2	260.1	243.8	216.9	190.2	163.1
	1500	900.4	805.5	711.1	638.4	551.6	517.3	447.0	389.8	365.5	325.2	285.0	244.5
1250	600	445.5	399.8	368.9	329.9	285.0	267.3	230.9	202.0	189.3	168.4	147.2	126.2
	750	556.5	499.5	461.0	412.3	356.2	333.9	288.5	252.4	236.7	210.5	184.0	157.7
	1000	741.3	665.4	614.1	549.3	474.6	445.0	384.5	336.5	315.5	280.6	245.2	210.2
	1500	1109.7	996.3	919.7	822.8	711.0	666.7	576.2	504.3	472.8	420.7	367.5	315.1
1400	600	712.3	639.2	589.9	528.9	456.9	428.4	369.4	325.0	305.9	272.1	238.8	204.8
	750	889.7	798.5	737.0	660.7	570.9	535.3	460.7	406.1	382.3	340.0	298.5	256.0
	1000	1184.9	1063.6	981.7	880.3	760.7	713.3	612.1	541.3	509.5	453.3	397.8	341.1
	1500	1773.5	1592.3	1469.9	1218.3	1139.4	1068.5	911.6	811.2	763.6	679.4	596.2	511.3
1600	600	964.2	862.4	795.8	711.7	614.8	576.5	498.0	392.9	368.4	327.7	286.8	245.9
	750	1204.5	1077.3	994.2	889.2	768.3	720.3	622.3	491.0	460.4	409.6	358.4	307.3
	1000	1604.0	1435.0	1324.5	1184.7	1023.6	959.9	829.3	654.4	613.6	545.8	477.7	409.6
	1500		2148.4	1983.2	1774.2	1533.4	1437.9	1242.6	980.6	919.5	818.1	715.8	613.8
1800	600	1406.5	1261.1	1163.9	1040.9	906.6	853.3	737.2	648.2	607.8	506.3	450.4	369.3
	750	1756.9	1575.3	1454.0	1300.4	1132.7	1066.2	921.1	810.6	759.6	632.7	562.8	461.5
	1000	2339.8	2098.3	1936.8	1732.3	1509.1	1420.6	1227.4	1079.7	1012.4	843.3	750.1	615.1
	1500					2260.3	2127.8	1838.9	1618.1	1517.2	1264.2	1124.2	922.0
2000	600	1720.0	1538.5	1357.9	1218.7	1052.9	987.2	852.9	764.6	716.9	637.7	556.5	458.4
	750	2148.2	1921.6	1696.3	1522.5	1315.5	1233.5	1065.7	955.4	895.9	797.0	695.4	572.9
	1000	2860.4	2559.0	2259.3	2028.0	1752.5	1643.3	1420.0	1273.3	1193.9	1062.1	926.8	763.5
	1500						2461.0	2127.0	1907.9	1789.0	1591.8	1388.8	1144.2

Product list產品列表

Customer service在線客服

產品展示
