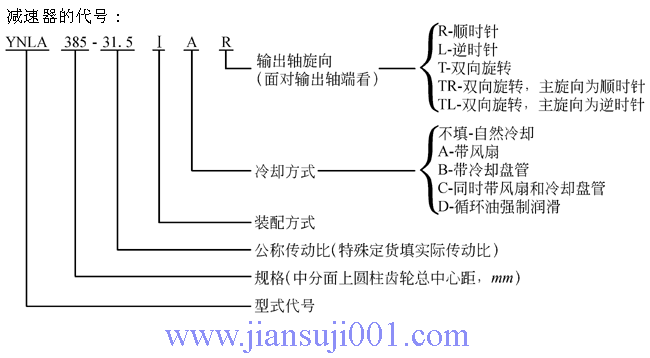

YN系列圓柱齒輪減速機結構型式與代號YB/T050-93

YN系列圓柱齒輪減速機中心距YB/T050-93

YN系列圓柱齒輪減速機傳動比YB/T050-93

YN系列齒輪減速機實體模型YB/T050-93

YND80、YND100、YND125、YND160、YND200、YND250、YND280、YND320、YND360、YND400、YND450、YND500、YND560系列圓柱齒輪減速機外形及安裝尺寸YB/T050-93

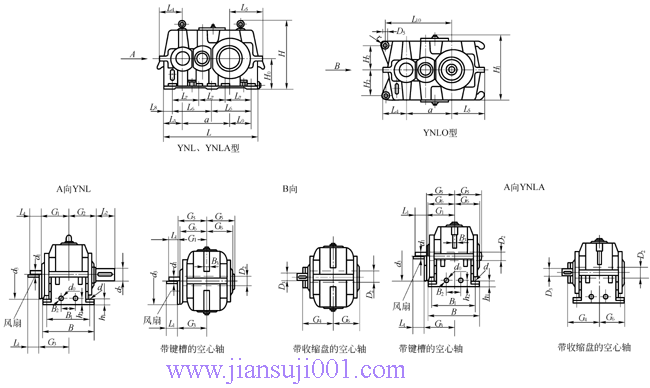

YNL192、YNLO192、YNLA192、YNL215、YNLO215、YNLA215、YNL240、YNLO240、YNLA240、YNL272、YNLO272、YNLA272、YNL305、YNLO305、YNLA305、YNL340、YNLO340、YNLA340、YNL385、YNLO385、YNLA385、YNL430、YNLO430、YNLA430、YNL480、YNLO480、YNLA480、YNL545、YNLO545、YNLA545、YNL610、YNLO610、YNLA610、YNL680、YNLO680、YNLA680、YNL770、YNLO770、YNLA770、YNL860、YNLO860、YNLA860、YNL960、YNLO960、YNLA960、YNL1080、YNL1080、YNLA1080、YNL1210、YNLO1210、YNLA1210、YNL1360、YNLO1360、YNLA1360系列圓柱齒輪減速機外形及安裝尺寸YB/T050-93

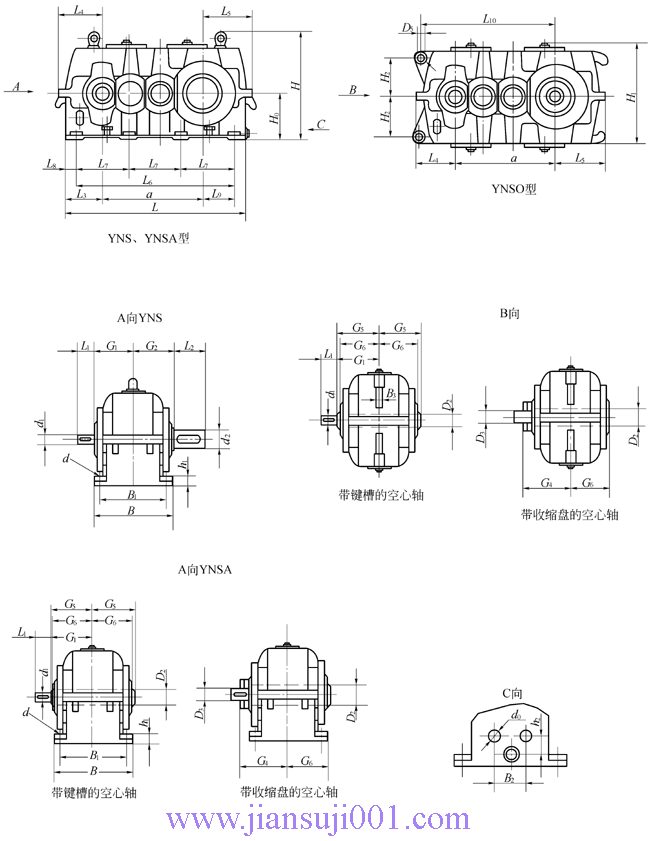

YNS352、YNSO352、YNSA352、YNS395、YNSO395、YNSA395、YNS440、YNSO440、YNSA440、YNS497、YNSO497、YNSA497、YNS555、YNSO555、YNSA555、YNS620、YNSO620、YNSA620、YNS705、YNSO705、YNSA705、YNS790、YNSO790、YNSA790、YNS880、YNSO880、YNSA880、YNS995、YNSO995、YNSA995、YNS1110、YNSO1110、YNSA1110、YNS1240、YNSO1240、YNSA1240、YNS1400、YNSO1400、YNSA1400、YNS1570、YNSO1570、YNSA1570、YNS1760、YNSO1760、YNSA1760系列圓柱齒輪減速機外形及安裝尺寸YB/T050-93

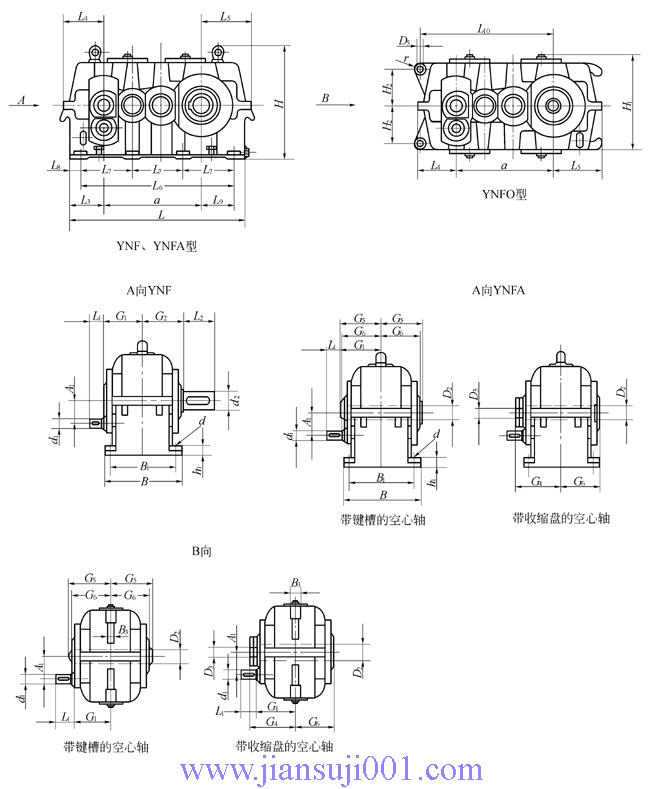

YNF395、YNFO395、FNFA395、YNF440、YNFO440、FNFA440、YNF497、YNFO497、FNFA497、YNF555、YNFO555、FNFA555、YNF620、YNFO620、FNFA620、YNF705、YNFO705、FNFA705、YNF790、YNFO790、FNFA790、YNF880、YNFO880、FNFA880、YNF995、YNFO995、FNFA995、YNF1110、YNFO1110、FNFA1110、YNF1240、YNFO1240、FNFA1240、YNF1400、YNFO1400、FNFA1400、YNF1570、YNFO1570、FNFA1570、YNF1760、YNFO1760、FNFA1760系列圓柱齒輪減速機外形及安裝尺寸YB/T050-93

YN系列圓柱齒輪減速機空心軸型（鍵聯接）的聯接尺寸YB/T050-93

頁次：1/2 每頁10條共20條信息分頁：[1][2]

級別	代號			傳動比范圍	最大末級中心距	最小單級中心距
級別	基本型	懸掛型	空心軸型	傳動比范圍	最大末級中心距	最小單級中心距
1	YND			1.25～6.3	560	80
2	YNL	YNLO	YNLA	6.3～2.0	800
3	YNS	YNSO	YNSA	20～100
4	YNF	YNFO	YNFA	100～500		63

規格	公稱傳動比i_N
	1.25	1.4	1.6	1.8	2.0	2.24	2.5	2.8	3.15	3.55	4	4.5	5	5.6	6.3
	實際傳動比i
80	1.235	1.375	1.621	1.815	2.040	2.304	2.455	2.800	3.222	3.529	4.067	4.421	5.059	5.526	6.353
100	1.235	1.375	1.621	1.815	2.040	2.304	2.455	2.800	3.222	3.571	4.053	4.389	5.063	5.467	6.222
125	1.257	1.394	1.633	1.821	2.038	2.292	2.478	2.762	3.158	3.500	4.053	4.588	4.938	5.667	6.176
160	1.235	1.375	1.621	1.815	2.040	2.304	2.455	2.783	3.143	3.579	3.944	4.421	5.059	5.500	6.294
200	1.235	1.375	1.621	1.815	2.040	2.304	2.455	2.864	3.200	3.474	4.000	4.588	5.056	5.529	6.267
250	1.257	1.394	1.633	1.821	2.038	2.292	2.435	2.762	3.158	3.571	4.053	4.588	4.938	5.688	6.133
280	-	-	1.621	1.815	2.040	2.304	2.455	2.800	3.222	3.529	3.944	4.563	5.063	5.688	6.133
320	-	-	1.621	1.815	2.040	2.304	2.455	2.783	3.143	3.579	3.944	4.421	5.059	5.588	6.294
360	-	-	1.606	1.774	1.966	2.222	2.480	2.783	3.143	3.526	4.059	4.444	5.125	5.444	6.188
400	-	-	-	-	2.036	2.269	2.542	2.864	3.174	3.571	4.053	4.588	5.063	5.529	6.333
450	-	-	-	-	1.966	2.222	2.480	2.783	3.143	3.579	4.059	4.588	5.063	5.750	6.200
500	-	-	-	-	2.038	2.292	2.435	2.762	3.158	3.571	4.053	4.389	4.944	5.625	6.133
560	-	-	-	-	2.040	2.304	2.455	2.870	3.091	3.500	3.944	4.563	4.944	5.688	6.133

規格	公稱傳動比i_N
	7.1	8	9	10	11.2	12.5	14	16	18	20
	實際傳動比i
192	6.847	7.797	8.894	10.235	11.211	12.446	14.340	15.590	17.944	20.530
215	7.068	7.737	8.772	9.925	11.136	12.817	14.206	15.561	17.984	20.410
240	7.227	7.698	8.782	10.106	11.201	12.711	14.387	15.581	17.799	20.531
272	7.000	8.014	8.767	9.983	11.083	12.756	14.526	15.582	17.503	19.500
305	7.202	7.789	8.680	9.925	11.000	12.342	14.291	16.180	18.623	20.040
340	7.374	7.855	8.933	10.036	11.360	12.332	14.088	15.458	17.800	20.222
385	7.242	7.714	8.745	9.878	11.248	12.397	13.895	15.590	17.839	20.533
430	7.277	7.832	8.787	9.925	11.136	12.817	14.035	15.873	18.304	20.110
480	6.873	7.909	9.227	10.311	11.193	12.889	14.118	16.194	17.843	19.941
545	6.984	7.794	8.745	9.878	11.083	12.756	14.526	15.882	18.094	19.941
610	7.202	7.652	8.680	9.925	11.224	12.594	14.291	16.180	17.411	-
680	7.314	7.791	8.887	10.227	11.508	12.605	14.087	16.295	18.490	-
770	7.242	7.714	8.745	9.959	11.248	12.809	14.117	15.823	18.105	-
860	7.018	7.832	8.787	9.938	11.224	12.594	14.496	15.873	18.304	-
960	7.014	7.856	8.896	10.023	11.109	12.500	14.184	16.059	18.098	-
1080	6.878	7.953	8.876	9.959	11.248	12.809	14.526	16.421	18.118	-
1210	7.093	8.081	8.586	9.739	11.136	12.594	14.291	15.477	17.436	-
1360	7.133	8.126	8.656	10.119	10.900	12.342	13.909	16.089	17.436	-

規格	公稱傳動比i_N
	20	22.4	25	28	31.5	35.5	40	45	50	56	63	71	80	90	100
	實際傳動比i
352	-	21.519	24.504	27.953	32.168	35.235	39.115	45.070	51.223	55.796	64.222	73.486	80.991	88.475	96.730
395	-	22.213	24.316	27.569	31.192	34.998	38.789	43.522	50.094	54.768	62.310	72.206	78.600	90.469	102.426
440	-	21.972	24.635	28.102	32.339	35.844	38.910	44.041	49.975	54.122	62.429	71.319	77.013	88.681	100.938
497	-	22.301	25.188	27.553	31.376	34.831	39.081	44.504	51.224	56.003	61.723	68.774	79.109	91.056	98.193
555	-	21.777	24.596	27.411	31.342	34.737	38.975	45.129	51.093	54.983	62.183	71.573	82.143	89.947	98.639
620	-	22.649	25.309	28.785	32.339	35.105	39.735	43.523	49.721	54.557	62.824	71.373	80.294	89.736	96.770
705	-	21.466	24.245	27.485	31.044	34.831	39.664	43.715	48.997	55.796	63.845	73.486	79.895	88.054	96.269
790	19.060	21.527	24.614	27.617	31.192	34.998	39.581	45.558	51.117	55.973	64.544	73.241	82.383	83.425	-
880	19.6, , 31	22.649	25.103	29.287	32.727	35.526	38.912	44.808	50.420	57.835	63.725	71.219	77.894	88.280	-
995	19.202	21.688	24.496	27.485	31.044	34.831	39.664	45.654	49.914	56.839	62.644	71.369	81.173	87.525	-
1110	18.712	21.395	24.165	27.411	31.342	35.165	39.770	45.129	51.093	54.983	62.183	71.573	82.445	88.908	-
1240	20.170	21.726	24.080	27.469	31.611	34.625	38.961	43.543	49.306	57.031	63.281	71.808	80.673	86.996	-
1400	19.916	22.416	23.878	27.069	30.573	34.816	39.646	43.695	48.975	56.629	64.798	73.486	81.176	91.430	-
1570	19.298	21.721	24.241	27.198	30.720	34.468	39.673	44.868	49.131	55.973	64.544	73.241	77.806	88.425	-
1760	20.086	21.710	24.316	27.397	30.365	34.168	38.772	43.904	49.706	56.628	62.482	70.416	76.911	88.093	-

規格	公稱傳動比i_N
	100	112	125	140	160	180	200	224	250	280	315	355	400	450	500
	實際傳動比i
395	-	112.362	124.535	135.763	152.328	175.331	203.509	222.495	257.626	279.029	315.906	363.611	418.359	476.353	514.382
440	-	116.677	129.321	140.648	152.677	173.248	197.125	213.481	243.883	282.097	305.025	351.241	385.423	444.555	512.515
497	-	115.128	127.808	139.992	157.072	180.982	208.312	229.586	249.593	272.880	305.852	352.038	402.823	448.841	490.319
555	-	110.520	122.493	137.438	155.436	178.909	207.157	226.485	260.686	285.453	323.179	367.979	395.990	431.052	489.130
620	-	113.117	128.035	141.911	155.440	176.384	201.502	218.222	251.285	275.725	316.273	353.465	407.715	440.265	500.176
705	-	110.641	125.993	139.869	159.277	183.329	202.052	220.903	254.261	284.983	311.571	343.390	382.620	437.816	503.611
790	98.502	110.520	122.493	138.534	155.436	179.979	207.157	235.069	257.403	291.421	313.605	355.052	408.668	471.245	507.117
880	102.642	111.421	122.043	138.139	155.440	178.992	204.482	228.527	250.754	287.630	326.770	310.798	408.565	459.635	531.655
995	97.566	109.470	124.660	141.957	156.454	178.163	205.067	229.846	253.319	276.952	316.905	359.397	402.823	437.952	498.950
1110	98.502	110.520	124.005	140.243	161.421	182.560	207.157	226.829	261.094	295.601	323.685	373.249	401.662	451.797	512.671
1240	101.155	109.806	120.275	135.338	153.251	171.272	197.222	223.795	256.706	290.633	320.235	360.899	417.449	456.576	506.612
1400	96.088	107.811	122.771	139.806	154.084	177.352	201.132	219.897	254.261	284.983	324.676	367.025	416.237	473.412	522.347
1570	97.009	108.846	123.099	139.219	158.608	179.979	207.157	226.839	256.819	291.421	313.605	339.626	391.631	451.119	519.242
1760	97.843	110.793	124.669	136.555	155.573	173.867	197.293	222.346	257.186	291.176	323.086	373.710	412.339	463.245	533.199

總中心距a	192	215	240	272	305	340	385	430	480
高速級a₁	80	90	100	112	125	140	160	180	200
低速級a₂	112	125	140	160	180	200	225	250	280
總中心距a	545	610	680	770	860	960	1080	1210	1360
高速級a₁	225	250	280	320	360	400	450	500	560
低速級a₂	320	360	400	450	500	560	630	710	800

總中心距a	352	395		440		497		555		620		705	790
高速級a₁	80	90		100		112		125		140		160	180
中間級a₂	112	125		140		160		180		200		225	250
低速級a₃	160	180		200		225		250		280		320	360
總中心距a	880		995		1110		1240		1400		1570			1760
高速級a₁	200		225		250		280		320		360			400
中間級a₂	280		320		360		400		450		500			560
低速級a₃	400		450		500		560		630		710			800

中分面上總中心距a	395	440	497	555	620	705	790	880	995	1110	1240	1400	1570	1760
高速級a₁	63	70	80	90	100	112	125	140	160	180	200	225	250	280
中間級a₂	90	100	112	125	140	160	180	200	225	250	280	320	360	400
中間級a₃	125	140	160	180	200	225	250	280	320	360	400	450	500	560
低速級a₄	180	200	225	250	280	320	360	400	450	500	560	630	710	800

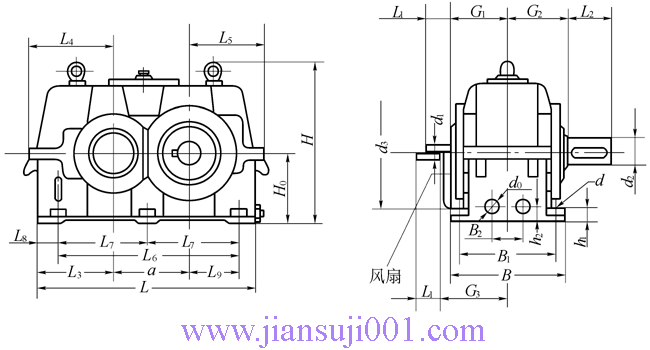

a	L		B		h₁		d₁			L₁		G₃		d₁			L₁		G₃		d₁		L₁			G₃	d₂		L₂		d₃
							i_N=1.25~2.8							i_N=3.15~4.5							i_N=5~6.3
80 100 125	235 290 355		150 175 195		18 22 25		28m6 42m6 48m6			50 70 80		- 105 120		24k6 28m6 38m6			40 50 60		- 105 120		19k6 22k6 28m6		35 35 50			- - -	32m6 48m6 55m6		60 80 90		- 171 202
160 200 250	445 545 680		245 310 370		32 40 50		65m6 80m6 100m6			105 140 180		150 185 225		48m6 60m6 80m6			80 105 140		150 185 225		38m6 48m6 60m6		60 80 105			150 185 225	70m6 90m6 110n6		120 160 180		251 315 385
280 320 360	755 840 930		450 500 550		50 63 63		110n6 130n6 140n6			180 210 240		275 305 340		85m6 95m6 100m6			140 160 180		275 305 340		65m6 75m6 90m6		105 120 160			275 305 340	130n6 140n6 150n6		210 240 240		425 485 529
400 450 500 560	1040 1150 1290 1440		605 645 710 780		80 80 100 100		150n6 160n6 180n6 200n6			240 270 310 400		370 400 440 470		110n6 120n6 130n6 150n6			180 210 210 240		370 400 440 470		95m6 100m6 120n6 130n6		160 180 210 210			370 400 440 470	160n6 170n6 190n6 210n6		270 270 310 350		589 649 689 689
a	L₃	L₄≈		L₅≈		G₁ G₂		H₀	H≈		L₆		L₇		B₁	L₈		L₉		冷卻盤管接口					地腳螺栓			平均質量		參考油量(L)
																				d₀(〞)		B₂		h₂	d		數量
80 100 125	67.5 85 97.5	81 102 119		101 122 155		70 85 100		100 125 160	205 248 310		180 225 290		- - -		120 140 160	27.5 32.5 32.5		60 72.5 100		G1/4 G1/4 G1/4		30 35 40		23 23 40	M10 M12 M12		4 4 4	14 26 52		0.9 1.6 3.2
160 200 250	118 140 175	141 169 214		190 235 295		120 145 175		200 250 315	385 480 590		355 425 550		- - 275		200 255 305	45 60 65		122 145 190		G1/2 G1/2 G1/2		60 70 90		48 52 60	M16 M20 M24		4 4 6	105 210 400		6.5 12.5 23
280 320 360	187.5 205 220	228 254 269		328 364 397		220 245 270		355 400 450	669 749 831		620 700 770		310 350 385		380 420 470	67.5 70 80		220 245 270		G1/2 G3/4 G3/4		90 110 110		60 96 96	M24 M30 M30		6 6 6	580 800 1050		36 45 70
400 450 500 560	245 265 295 325	304 331 418 457		454 501 618 687		285 305 340 380		500 560 630 710	931 1041 1161 1297		850 950 1080 1200		425 475 540 600		510 550 610 680	95 100 105 120		300 335 390 435		G3/4 G3/4 G3/4 G3/4		110 140 140 140		104 106 108 108	M36 M36 M42 M42		6 6 6 6	1450 2000 2700 3650		90 125 180 250

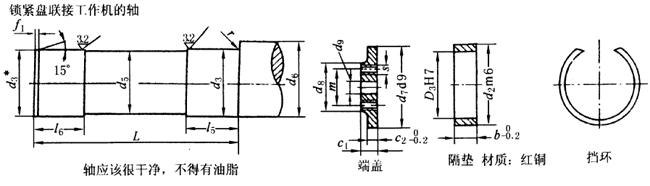

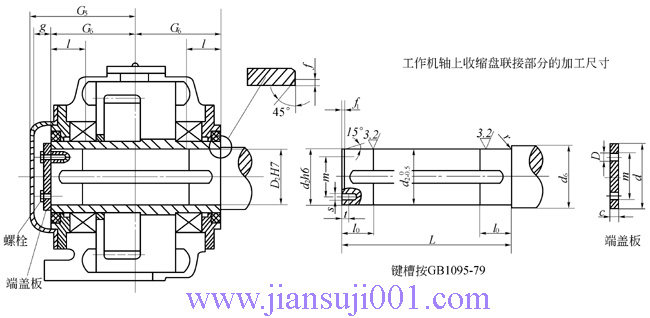

軸端尺寸和固定件
減速器型號						工作機軸								端蓋板				空心軸						螺栓
YNLA YNLO	YNSA YNSO	YNFA YNFO	YKLA YKLO	YKSA YKSO	YKFA	d₂	d₆	f₁	L	I₀	r	s	t	C	D	d	m	D₂	f	G₆	g	G₅	I	規格	數量
規格						d₂	d₆	f₁	L	I₀	r	s	t	C	D	d	m	D₂	f	G₆	g	G₅	I	規格	數量
192 215			100 125	192 215		50 55 65	60 65 75	4 4 4	188 203 218	35 35 40	2.5 2.5 2.5	M8 M8 M10	15 15 17	8 8 8	9 9 11	62 70 78	35 40 45	50 55 65	3 3 3	95 102.5 110	23 25 25	125 135 140	25 25 30	M8×20 M8×20 M10×25	2 2 2
240 272 305	352 395	395	160	240 272 305	272 305	70 85 100	80 95 110	4 5 5	233 268 298	40 50 50	2.5 2.5 4	M10 M10 M10	17 17 17	8 10 10	11 11 11	86 100 120	50 60 70	70 85 100	3 3 4	117.5 135 150	25 30 30	150 170 185	30 40 40	M10×25 M10×25 M10×25	2 2 2
340 385 430	440 497 555	440 497 555	200 250	340 385 430	340 385 430	110 120 140	120 130 150	5 5 5	328 353 398	50 50 55	4 4 4	M12 M12 M12	20 20 20	10 12 12	14 14 14	130 140 160	75 80 90	110 120 140	4 4 4	165 177.5 200	32 32 32	200 215 240	40 40 45	M12×30 M12×30 M12×30	2 2 2
