一、概述
YT系列電動機是軸流式通風機專用配套的電機，具有高效、節能、起動轉矩高、噪聲低、振動小、運行安全可靠等特點。
電動機的電壓為380V；頻率為50HZ；連續工作制S1。
型號含義
二、結構簡介
YT系列通風機專用電動機的外殼防護等級為IP44，非軸伸端無風扇、風罩。有些制造廠生產的YT系列為雙軸伸，有些制造廠生產的產品軸伸端帶螺紋、螺母。
安裝結構型式有B30安裝，機座不帶底腳，端蓋無凸緣，機座上有3對搭子接觸安裝或拉桿式安裝。電機無出線盒，引出線從機座側面引出。
|
型號 |
額定功率
KW |
額定電流
A |
額定轉速
（r/min） |
效率
（%） |
功率
因數 |
堵轉轉矩 |
堵轉電流 |
最大轉矩 |
外形尺寸mm | |
|
額定轉矩 |
額定電流 |
額定轉矩 |
外徑 |
長 | ||||||
|
YT100L1-4 |
2.2 |
5.0 |
1420 |
81 |
0.82 |
2.2 |
7.0 |
2.3 |
169 |
325 |
|
YT100L2-4 |
3 |
6.8 |
1420 |
82.5 |
0.81 |
2.2 |
7.0 |
2.3 | ||
|
YT112L-6 |
1.5 |
4.0 |
940 |
77.5 |
0.74 |
2.0 |
6.0 |
2.2 | ||
|
YT112M-4 |
4 |
8.8 |
1440 |
84.5 |
0.82 |
2.2 |
7.0 |
2.3 |
190 |
340 |
|
YT132M-6 |
2.2 |
5.6 |
940 |
80.5 |
0.74 |
2.0 |
6.0 |
2.2 | ||
|
YT132S-4 |
5.5 |
11.6 |
1440 |
85.5 |
0.84 |
2.2 |
7.0 |
2.3 |
226 |
435 |
|
YT132M-4 |
7.5 |
15.4 |
1440 |
87 |
0.85 |
2.2 |
7.0 |
2.3 |
395 | |
|
YT132S-6 |
3 |
7.2 |
960 |
83 |
0.76 |
2.0 |
65 |
2.2 |
435 | |
|
YT132M1-6 |
4 |
9.4 |
960 |
84 |
0.77 |
2.0 |
6.5 |
2.2 | ||
|
YT132M2-6 |
5.5 |
12.6 |
960 |
85.3 |
0.78 |
2.0 |
6.5 |
2.2 | ||
|
YT100-1.5-4 |
1.5 |
3.6 |
1470 |
79 |
0.79 |
2.2 |
6.5 |
2.3 |
195 |
275 |
|
YT32-2.2-4 |
2.2 |
4.87 |
1470 |
81 |
0.82 |
2.2 |
7 |
2.3 |
195 |
275 |
|
YT32-4-4 |
4 |
8.8 |
1470 |
84.5 |
0.82 |
2.2 |
7 |
2.3 |
250 |
334 |
|
YT32-5.5-4 |
5.5 |
11.4 |
1470 |
85.5 |
0.84 |
2.2 |
7 |
2.3 |
250 |
334 |
|
YT32-1.5-4 |
1.5 |
3.5 |
1470 |
79 |
0.79 |
2.2 |
6.5 |
2.3 |
250 |
241 |
|
YT32-2.2-4 |
2.2 |
4.8 |
1470 |
81 |
0.82 |
2.2 |
7 |
2.3 |
252 |
241 |
|
YT32-3-4 |
3 |
6.5 |
1470 |
82.5 |
0.81 |
2.2 |
7 |
2.3 |
252 |
241 |
|
YT32-4-4 |
4 |
8.6 |
1470 |
84.5 |
0.82 |
2.2 |
7 |
2.3 |
252 |
241 |
|
YT32-1.5-6 |
1.5 |
3.9 |
980 |
81.5 |
0.72 |
2 |
6 |
2.2 |
252 |
241 |
|
YT32-2.2-6 |
2.2 |
5.4 |
980 |
82.8 |
0.75 |
2 |
6 |
2.2 |
252 |
241 |
|
YT32-7.5-4 |
7.5 |
15.2 |
1470 |
87 |
0.85 |
2.2 |
7 |
2.3 |
250 |
434 |
|
YT160-1.5-4 |
1.5 |
3.6 |
1470 |
79 |
0.79 |
2.3 |
6.5 |
2.3 |
340 |
263 |
|
YT160-2.2-4 |
2.2 |
4.8 |
1470 |
81 |
0.82 |
2.2 |
7 |
2.3 |
340 |
263 |
|
YT160-3-4 |
3 |
6.8 |
1470 |
82.5 |
0.81 |
2.2 |
7 |
2.3 |
340 |
263 |
|
YT160-5.5-4 |
5.5 |
11.8 |
1470 |
85.5 |
0.84 |
2.2 |
7 |
2.3 |
340 |
263 |
|
YT160-7.5-4 |
7.5 |
15.6 |
1470 |
87 |
0.85 |
2.2 |
7 |
2.3 |
340 |
363 |
|
YT160-11-4 |
11 |
22.1 |
1470 |
88 |
0.84 |
2.2 |
7 |
2.3 |
340 |
358 |
|
YT160-15-4 |
15 |
29.9 |
1470 |
88.5 |
0.85 |
1.9 |
7 |
2.2 |
340 |
458 |
|
YT160-18.5-4 |
18.5 |
35.8 |
1470 |
91 |
0.86 |
2.0 |
7 |
2.2 |
340 |
458 |
|
YT160-2.2-6 |
2.2 |
5.4 |
980 |
84 |
0.74 |
2.2 |
7 |
2.3 |
340 |
263 |
|
YT160-4-6 |
4 |
9.2 |
980 |
84 |
0.77 |
2 |
6.5 |
2.2 |
340 |
263 |
|
YT160-2.2-8 |
2.2 |
5.8 |
735 |
80.5 |
0.71 |
2 |
5.5 |
2 |
340 |
263 |
|
YT180-15-4 |
15 |
30.4 |
1470 |
88.5 |
0.85 |
2.2 |
7 |
2.3 |
440 |
481 |
|
YT180-15-6 |
15 |
31.4 |
980 |
89.5 |
0.81 |
1.8 |
6.5 |
2.2 |
440 |
481 |
|
YT180-18.5-4 |
18.5 |
36 |
1470 |
91 |
0.86 |
2 |
7 |
2.2 |
440 |
481 |
|
YT200-22-6 |
22 |
44.6 |
980 |
90.2 |
0.86 |
1.8 |
6.5 |
2.2 |
440 |
481 |
|
YT200-22-4 |
22 |
41 |
1470 |
91.5 |
0.86 |
1.9 |
7 |
2.2 |
440 |
481 |
|
YT225-30-4 |
30 |
57.5 |
1470 |
91.2 |
0.87 |
1.9 |
7 |
2.2 |
440 |
481 |
|
YT225-37-4 |
37 |
69.8 |
1470 |
91.8 |
0.87 |
1.9 |
7 |
2.2 |
440 |
481 |
|
YT225-45-4 |
45 |
84.2 |
1470 |
92.3 |
0.88 |
1.9 |
7 |
2.2 |
670 |
674 |
|
YT225-22-6 |
22 |
43.8 |
980 |
90.2 |
0.83 |
1.8 |
6.5 |
2 |
440 |
481 |
|
YT250-37-6 |
37 |
72 |
980 |
90.8 |
0.86 |
1.8 |
6.5 |
2.2 |
546 |
614 |
|
YT250-55-4 |
55 |
102 |
1470 |
92.6 |
0.88 |
2 |
7 |
2.2 |
670 |
674 |
|
YT280-45-6 |
45 |
84 |
980 |
92 |
0.87 |
1.8 |
6.5 |
2.2 |
586 |
860 |
|
YT280-55-6 |
55 |
102 |
980 |
92 |
0.87 |
1.8 |
6.5 |
2.2 |
586 |
860 |
|
YT280-75-4 |
75 |
135 |
1470 |
93 |
0.90 |
1.8 |
7 |
2.2 |
680 |
763 |

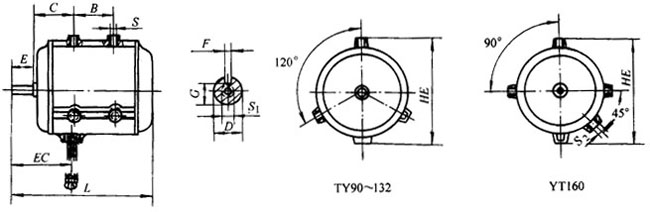

YT90～160（B30）外形尺寸圖（見表2）
表2 （單位：mm）
|
中心高 |
功率/KW |
B |
C |
D |
E |
F |
G |
EC |
S |
S1 |
S2 |
HE |
L | ||
|
2極 |
4極 |
6極 | |||||||||||||
|
90S |
1.5 |
1.1 |
0.75 |
86 |
66 |
24j6 |
50 |
8 |
20 |
120 |
M12 |
M6 |
M18×1.5 |
185 |
263 |
|
90L |
2.2 |
1.5 |
1.1 |
115 |
66 |
288 | |||||||||
|
100L12 |
3 |
2.2
3 |
1.5 |
130 |
73 |
24j6 |
60 |
24 |
140
145 |
215 |
327 | ||||
|
112M |
4 |
4 |
2.2 |
130 |
80 |
235 |
341 | ||||||||
|
132S12 |
5.5
7.5 |
5.5 |
3 |
130 |
100 |
24K6 |
80 |
10 |
33 |
185 |
M14 |
275 |
399 | ||
|
132M12 |
|
7.5 |
4
5.5 |
168 |
100 |
437 | |||||||||
|
160M |
11
15 |
11 |
4.5 |
200 |
120 |
24K6 |
110 |
12 |
37 |
335 |
M16 |
M8 |
M20×1.5 |
335 |
536 |
|
160L |
18.5 |
15 |
11 |
244 |
120 |
580 | |||||||||
