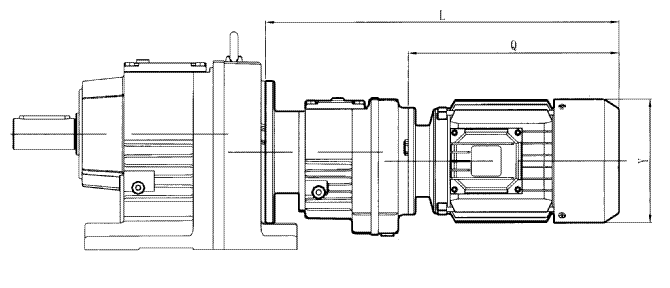

DRC..型硬齒輪減速機安裝尺寸圖
|
|
|
Y |
Q |
L |
|
DRC17/27
DRC17/37
|
YS63.. |
122 |
214 |
353 |
|
YS71.. |
137 |
231 |
370 |
|
YS80.. |
156 |
253 |
392 |
|
DRC37/47
DRC37/57
DRC37/67
|
YS63.. |
122 |
214 |
371 |
|
YS71.. |
137 |
231 |
388 |
|
YS80.. |
156 |
253 |
410 |
|
DRC37/77 |
YS63.. |
122 |
214 |
371 |
|
YS71.. |
137 |
231 |
388 |
|
YS80.. |
156 |
253 |
410 |
|
YS90.. |
169 |
305 |
462 |
|
DRC57/87 |
YS63.. |
122 |
208 |
395 |
|
YS71.. |
137 |
225 |
412 |
|
YS80.. |
156 |
250 |
437 |
|
Y90.. |
169 |
301 |
488 |
|
DRC57/97 |
YS63.. |
122 |
208 |
395 |
|
YS71.. |
137 |
225 |
412 |
|
YS80.. |
156 |
250 |
437 |
|
Y90.. |
169 |
301 |
488 |
|
Y100.. |
194 |
349 |
436 |
|
DRC77/107 |
YS63.. |
122 |
206 |
426 |
|
YS71.. |
137 |
223 |
443 |
|
YS80.. |
156 |
251 |
471 |
|
Y90.. |
169 |
299 |
519 |
|
Y100.. |
194 |
346 |
566 |
|
Y112M.. |
226 |
350 |
570 |
|
Y132S.. |
266 |
405 |
625 |
|
Y132M.. |
266 |
445 |
625 |
|
Y160M.. |
320 |
500 |
720 |
|
DRC77/137 |
YS63.. |
122 |
206 |
426 |
|
YS71.. |
137 |
223 |
443 |
|
YS80.. |
156 |
251 |
471 |
|
Y90.. |
169 |
299 |
519 |
|
Y100.. |
194 |
346 |
566 |
|
Y112M.. |
226 |
350 |
570 |
|
Y132S.. |
266 |
405 |
625 |
|
Y132M.. |
266 |
445 |
665 |
|
Y160M.. |
320 |
500 |
720 |
|
|
|
Y |
Q |
L |
|
DRC77/147 |
YS63.. |
122 |
206 |
426 |
|
YS71.. |
137 |
223 |
443 |
|
YS80.. |
156 |
251 |
471 |
|
Y90.. |
169 |
299 |
519 |
|
Y100.. |
194 |
346 |
566 |
|
Y112M.. |
226 |
350 |
570 |
|
Y132S.. |
266 |
405 |
625 |
|
Y132M.. |
266 |
445 |
665 |
|
Y160M.. |
320 |
500 |
720 |
|
DRC87/147 |
YS80.. |
156 |
245 |
517 |
|
Y90.. |
169 |
293 |
565 |
|
Y100.. |
194 |
340 |
612 |
|
Y112M.. |
226 |
350 |
622 |
|
Y132S.. |
266 |
405 |
677 |
|
Y132M.. |
266 |
445 |
717 |
|
Y160M.. |
320 |
500 |
772 |
|
Y160L.. |
320 |
545 |
817 |
|
Y180M.. |
362 |
570 |
842 |
|
Y180L.. |
362 |
610 |
882 |
|
DRC97/167 |
YS80.. |
156 |
247 |
567 |
|
Y90.. |
169 |
296 |
616 |
|
Y100.. |
194 |
339 |
659 |
|
Y112M.. |
226 |
350 |
670 |
|
Y132S.. |
266 |
405 |
725 |
|
Y132M.. |
266 |
445 |
765 |
|
Y160M.. |
320 |
500 |
820 |
|
Y160L.. |
320 |
545 |
865 |
|
Y180M.. |
362 |
570 |
890 |
|
Y180L |
362 |
610 |
930 |
|
DRC107/167 |
Y100.. |
194 |
338 |
693 |
|
Y112M.. |
226 |
350 |
705 |
|
Y132S.. |
266 |
405 |
760 |
|
Y132M.. |
266 |
445 |
800 |
|
Y160M… |
320 |
500 |
855 |
|
Y160L.. |
320 |
545 |
900 |
|
Y180M.. |
362 |
570 |
925 |
|
Y180L.. |
362 |
610 |
965 |
|
Y200.. |
400 |
675 |
1030 |
|
Y225S.. |
452 |
690 |
1045 |
|
Y225M.. |
452 |
715 |
1070 | |
|
|
