P系列行星齒輪減速機鍵槽/中心孔外形尺寸 |
 |
| |
詳細介紹： |
發布時間：2007/8/25 9:13:49 |
|
| |

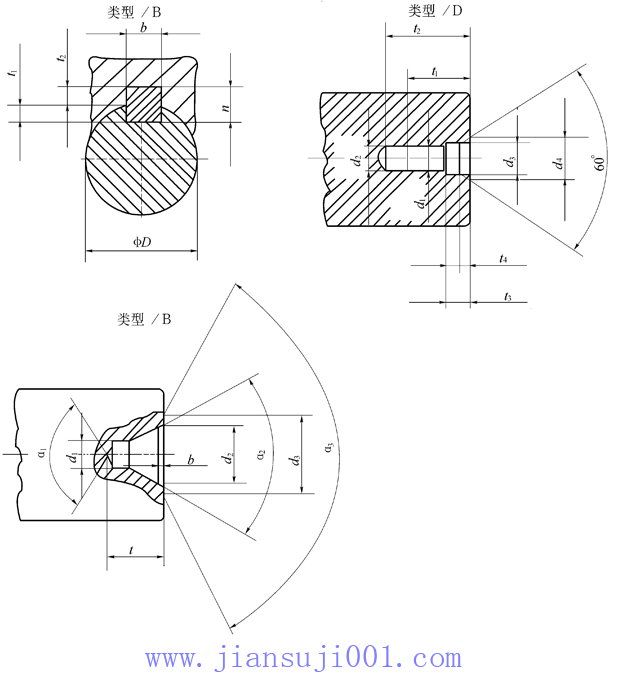

鍵槽/中心孔
P系列行星齒輪減速機鍵槽/中心孔外形尺寸
|
鍵 |
類型B |
|
軸直徑自-至 |
b |
h |
t1 |
|
17-22 |
6 |
6 |
3.5 |
|
22-30 |
8 |
7 |
4.0 |
|
30-38 |
10 |
8 |
5.0 |
|
38-44 |
12 |
8 |
5.0 |
|
44-50 |
14 |
9 |
5.5 |
|
50-58 |
16 |
10 |
6.0 |
|
58-65 |
18 |
11 |
7.0 |
|
65-75 |
20 |
12 |
7.5 |
|
75-85 |
22 |
14 |
9.0 |
|
85-95 |
25 |
14 |
9.0 |
|
95-110 |
28 |
16 |
10.0 |
|
110-130 |
32 |
18 |
11.0 |
|
130-150 |
36 |
20 |
12.0 |
|
150-170 |
40 |
22 |
13.0 |
|
170-200 |
45 |
25 |
15.0 |
|
200-230 |
50 |
28 |
17.0 |
|
230-260 |
56 |
32 |
20.0 |
|
260-290 |
63 |
32 |
20.0 |
|
290-330 |
70 |
36 |
22.0 |
|
330-380 |
80 |
40 |
25.0 |
|
380-440 |
90 |
45 |
28.0 |
|
440-500 |
100 |
50 |
31.0 |
|
帶公差的鍵槽 |
|
b |
t2 |
|
6 |
H7 |
2.8 |
+0.1 |
|
8 |
3.3 |
+0.2 |
|
10 |
3.3 |
|
12 |
3.3 |
|
14 |
3.8 |
|
16 |
4.3 |
|
18 |
4.4 |
|
20 |
4.9 |
|
22 |
5.4 |
|
25 |
5.4 |
|
28 |
6.4 |
|
32 |
7.4 |
|
36 |
8.4 |
|
40 |
9.4 |
|
45 |
10.4 |
|
50 |
11.4 |
|
56 |
12.4 |
+0.3 |
|
63 |
12.4 |
|
70 |
14.4 |
|
80 |
15.4 |
|
90 |
17.4 |
|
100 |
19.5 |
鍵和鍵槽：DIN 6885 Teil 1
中心孔
|
軸直徑自-至 |
類型D |
|
d1 |
d2 |
d3 |
d4 |
t1 |
t2 |
t3 |
t4 |
|
16-21 |
M6 |
5.0 |
6.4 |
10.0 |
16 |
21 |
5.0 |
2.8 |
|
21-24 |
M8 |
6.8 |
8.4 |
12.5 |
19 |
25 |
6.0 |
3.3 |
|
24-30 |
M10 |
8.5 |
10.5 |
15.5 |
22 |
30 |
7.5 |
3.8 |
|
30-38 |
M12 |
10.2 |
13.0 |
18.5 |
28 |
37 |
9.5 |
4.4 |
|
38-50 |
M16 |
14.0 |
17.0 |
24.0 |
36 |
45 |
12.0 |
5.2 |
|
50-85 |
M20 |
17.5 |
21.0 |
30.0 |
42 |
53 |
15.0 |
6.4 |
|
85-130 |
M24 |
21.0 |
25.0 |
36.0 |
50 |
63 |
18.0 |
8.0 |
|
130-180 |
M30 |
26.5 |
31.0 |
44.0 |
60 |
75 |
21.0 |
9.5 |
|
軸直徑自-至 |
類型D |
|
d1 |
d2 |
d3 |
a1 |
a2 |
a3 |
b |
t |
|
180-225 |
6.3 |
13.2 |
18 |
120° |
60° |
120° |
1.4 |
12.9 |
|
225-450 |
10.0 |
21.2 |
28 |
120° |
60° |
120° |
2.0 |
20.4 |
中心孔：DIN 332 Teil 1/2 |
|
|
