ADC系列擺線減速機尺寸圖表ANVM-9085～9125TB |
 |
| |
詳細介紹： |
發布時間：2006/6/5 15:03:14 |
|
| |

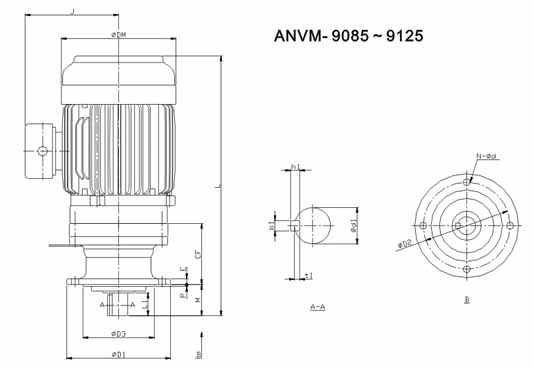

ADC系列擺線減速機尺寸圖表ANVM-9085～9125TB
|
ANVM-9085～9125TB尺寸圖表 |
|
ANVM |
CF |
D1 |
D2 |
D3 |
M |
E |
P |
N |
d |
H |
輸出軸尺寸 |
|
d1 |
L1 |
b1 |
h1 |
t1 |
|
9085 |
56 |
160 |
134 |
110 |
42 |
9 |
3 |
4 |
11 |
- |
18 |
30 |
6 |
6 |
3.5 |
|
9095 |
94 |
160 |
134 |
110 |
48 |
9 |
3 |
4 |
11 |
110 |
28 |
35 |
8 |
7 |
4 |
|
9105 |
108 |
160 |
134 |
110 |
48 |
9 |
3 |
4 |
11 |
110 |
28 |
35 |
8 |
7 |
4 |
|
9115 |
117 |
210 |
180 |
140 |
69 |
13 |
4 |
6 |
11 |
140 |
38 |
55 |
10 |
8 |
5 |
|
9125 |
117 |
210 |
180 |
140 |
69 |
13 |
4 |
6 |
11 |
- |
38 |
55 |
10 |
8 |
5 |
|
型號 |
電機 |
L |
J |
DM |
W（KG） |
|
KW |
HP |
極數 |
|
ANVM02 -9085-Ratio |
0.2 |
1/4 |
4 |
318 |
122 |
144 |
14 |
|
ANVM05 -9085-Ratio |
0.4 |
1/2 |
4 |
388 |
133 |
162 |
16 |
|
ANVM02 -9095-Ratio |
0.2 |
1/4 |
4 |
362 |
122 |
144 |
18 |
|
ANVM05 -9095-Ratio |
0.4 |
1/2 |
4 |
382 |
133 |
162 |
20 |
|
ANVM1 -9095-Ratio |
0.75 |
1 |
4 |
382 |
138 |
177 |
24 |
|
ANVM02 -9105-Ratio |
0.2 |
1/4 |
4 |
376 |
122 |
144 |
20 |
|
ANVM05 -9105-Ratio |
0.4 |
1/2 |
4 |
398 |
133 |
162 |
23 |
|
ANVM1 -9105-Ratio |
0.75 |
1 |
4 |
398 |
138 |
177 |
27 |
|
ANVM2 -9105-Ratio |
1.5 |
2 |
4 |
433 |
150 |
200 |
36 |
|
ANVM3 -9105-Ratio |
22 |
3 |
4 |
468 |
173 |
219 |
46 |
|
ANVM05 -9115-Ratio |
0.4 |
1/2 |
4 |
426 |
133 |
162 |
35 |
|
ANVM1 -9115-Ratio |
0.75 |
1 |
4 |
435 |
138 |
177 |
39 |
|
ANVM2 -9115-Ratio |
1.5 |
2 |
4 |
472 |
150 |
200 |
48 |
|
ANVM3 -9115-Ratio |
2.2 |
3 |
4 |
498 |
173 |
219 |
58 |
|
ANVM5 -9115-Ratio |
3.7 |
5 |
4 |
514 |
188 |
238 |
68 |
|
ANVM1 -9125-Ratio |
0.75 |
1 |
4 |
435 |
138 |
177 |
39 |
|
ANVM3 -9125-Ratio |
2.2 |
3 |
4 |
498 |
173 |
219 |
58 |
|
ANVM5 -9125-Ratio |
3.7 |
5 |
4 |
514 |
188 |
238 |
68 |
|
ANVM8 -9125-Ratio |
5.5 |
7.5 |
4 |
558 |
223 |
273 |
88 | |
|
|
