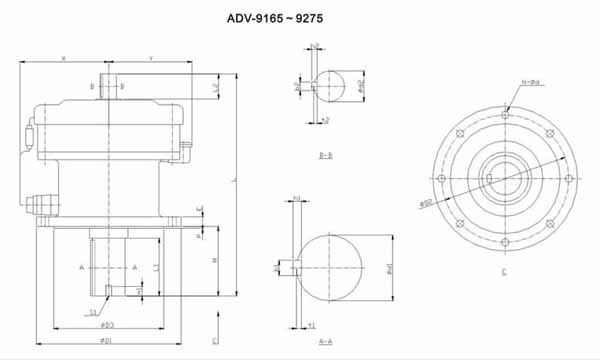

ADC系列擺線減速機尺寸圖表ADV-9165～9275
|
ADV-9165~9275尺寸圖表 |
|
ADV |
L |
D1 |
D2 |
D3 |
M |
E |
P |
N |
d |
X |
Y |
W(kg) |
|
9165 |
413 |
400 |
310 |
270 |
89 |
20 |
4 |
6 |
11 |
218 |
200 |
80 |
|
9175 |
477 |
400 |
360 |
316 |
94 |
22 |
5 |
8 |
14 |
224 |
227 |
127 |
|
9185 |
527 |
430 |
390 |
345 |
110 |
22 |
5 |
8 |
18 |
238 |
242 |
152 |
|
9195 |
620 |
490 |
450 |
400 |
145 |
30 |
6 |
12 |
18 |
266 |
272 |
226 |
|
9205 |
678 |
455 |
405 |
355 |
204 |
30 |
5 |
8 |
22 |
342 |
290 |
245 |
|
9215 |
708 |
490 |
440 |
390 |
203 |
35 |
7 |
8 |
24 |
340 |
308 |
315 |
|
9225 |
752 |
535 |
475 |
415 |
210 |
35 |
10 |
8 |
27 |
355 |
328 |
400 |
|
9235 |
839 |
570 |
510 |
450 |
250 |
40 |
10 |
8 |
27 |
360 |
345 |
475 |
|
9245 |
877 |
635 |
560 |
485 |
250 |
40 |
10 |
8 |
33 |
372 |
372 |
570 |
|
9255 |
1040 |
685 |
610 |
535 |
295 |
45 |
10 |
8 |
33 |
428 |
400 |
868 |
|
9265 |
1150 |
750 |
660 |
570 |
360 |
50 |
10 |
8 |
39 |
462 |
432 |
1126 |
|
9275 |
1462 |
1160 |
1020 |
900 |
355 |
60 |
10 |
8 |
39 |
612 |
615 |
2610 |
|
型號 |
輸出軸尺寸 |
輸入軸尺寸 |
|
d1 |
L1 |
b1 |
h1 |
t1 |
S1 |
m1 |
d2 |
L2 |
b2 |
h2 |
T1 |
|
ADV-9165-Ratio |
60 |
80 |
18 |
11 |
7 |
M10 |
18 |
30 |
45 |
8 |
7 |
4 |
|
ADV-9175-Ratio |
70 |
84 |
20 |
12 |
7.5 |
M12 |
24 |
35 |
55 |
10 |
8 |
5 |
|
ADV-9185-Ratio |
80 |
100 |
22 |
14 |
9 |
M12 |
24 |
40 |
65 |
12 |
8 |
5 |
|
ADV-9195-Ratio |
95 |
125 |
25 |
14 |
9 |
M20 |
34 |
45 |
70 |
14 |
9 |
5.5 |
|
ADV-9205-Ratio |
100 |
165 |
28 |
16 |
10 |
M20 |
34 |
45 |
82 |
14 |
9 |
5.5 |
|
ADV-9215-Ratio |
110 |
165 |
28 |
16 |
10 |
M20 |
34 |
50 |
82 |
14 |
9 |
5.5 |
|
ADV-9225-Ratio |
120 |
165 |
32 |
18 |
11 |
M20 |
34 |
55 |
82 |
16 |
10 |
6 |
|
ADV-9235-Ratio |
130 |
200 |
32 |
18 |
11 |
M24 |
41 |
60 |
105 |
18 |
11 |
7 |
|
ADV-9245-Ratio |
140 |
200 |
36 |
20 |
12 |
M24 |
41 |
65 |
105 |
18 |
11 |
7 |
|
ADV-9255-Ratio |
160 |
240 |
40 |
22 |
13 |
M30 |
49 |
80 |
130 |
22 |
14 |
9 |
|
ADV-9265-Ratio |
170 |
300 |
40 |
22 |
13 |
M30 |
49 |
80 |
130 |
22 |
14 |
9 |
|
ADV-9275-Ratio |
180 |
320 |
45 |
25 |
15 |
M30 |
52 |
90 |
150 |
25 |
14 |
9 | |
|
|
