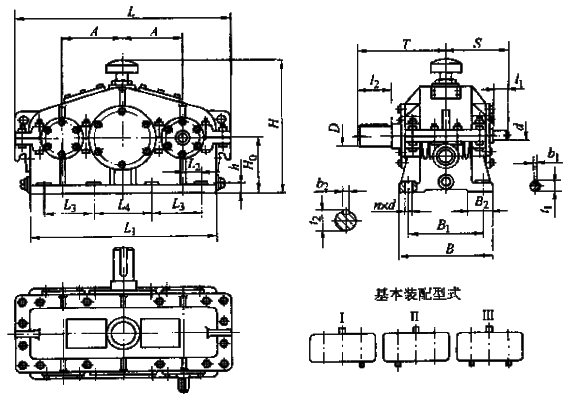

RH型二環減速機外形尺寸(JB－T10299-2001) |
 |
| |
詳細介紹： |
發布時間：2007/3/30 13:17:08 |
|
| |
RH型二環減速器
|
型號
規格 |
外形及中心高 |
軸伸 |
地腳尺寸 |
重量
/Kg |
油量
/L |
|
L |
B |
H |
L1 |
S |
T |
A |
HO |
d |
D |
l1 |
l2 |
t1 |
b1 |
t2 |
b2 |
h |
B1 |
B2 |
L2 |
L3 |
L4 |
D1 |
n |
|
RH125 |
450 |
205 |
260 |
400 |
153 |
196 |
125 |
125 |
18J6 |
38K6 |
28 |
58 |
20.5 |
6 |
41 |
10 |
20 |
165 |
45 |
45 |
110 |
120 |
M12 |
8 |
75 |
2 |
|
RH145 |
520 |
225 |
290 |
450 |
165 |
212 |
145 |
140 |
22J6 |
48K6 |
36 |
82 |
24.5 |
6 |
51.5 |
14 |
22 |
180 |
60 |
45 |
120 |
140 |
M16 |
8 |
92 |
2.5 |
|
RH175 |
635 |
245 |
375 |
550 |
206 |
264 |
175 |
180 |
30J6 |
60n6 |
58 |
105 |
33 |
8 |
64 |
18 |
24 |
200 |
65 |
65 |
140 |
200 |
M16 |
8 |
145 |
5 |
|
RH215 |
770 |
300 |
470 |
675 |
230 |
285 |
215 |
225 |
35k6 |
75n6 |
58 |
105 |
38 |
10 |
79.5 |
20 |
28 |
250 |
75 |
80 |
180 |
230 |
M20 |
8 |
275 |
10 |
|
RH255 |
890 |
320 |
535 |
790 |
250 |
324 |
255 |
250 |
45k6 |
90n6 |
82 |
130 |
48.5 |
14 |
95 |
25 |
32 |
270 |
80 |
90 |
205 |
280 |
M20 |
8 |
430 |
14 |
|
RH300 |
1010 |
370 |
620 |
910 |
284 |
379 |
300 |
300 |
50m6 |
110n6 |
82 |
165 |
53.5 |
14 |
116 |
28 |
38 |
320 |
90 |
100 |
220 |
360 |
M24 |
8 |
589 |
19 |
|
RH350 |
1150 |
400 |
650 |
1050 |
310 |
432 |
350 |
315 |
55m6 |
130n6 |
82 |
200 |
59 |
16 |
137 |
32 |
42 |
340 |
100 |
120 |
255 |
430 |
M24 |
8 |
820 |
27 |
|
RH400 |
1330 |
490 |
760 |
1210 |
320 |
470 |
400 |
375 |
65m6 |
150n6 |
105 |
200 |
69 |
18 |
158 |
36 |
45 |
380 |
110 |
140 |
300 |
480 |
M24 |
8 |
1045 |
42 |
|
RH450 |
1470 |
500 |
850 |
1350 |
373 |
523 |
450 |
400 |
75m6 |
170n6 |
105 |
240 |
79.5 |
20 |
179 |
40 |
50 |
420 |
120 |
160 |
330 |
560 |
M30 |
8 |
1830 |
60 |
|
RH500 |
1620 |
600 |
980 |
1500 |
413 |
583 |
500 |
450 |
85m6 |
200n6 |
130 |
280 |
90 |
22 |
210 |
45 |
65 |
490 |
150 |
190 |
390 |
600 |
M36 |
8 |
2000 |
84 | |
|
|
|
