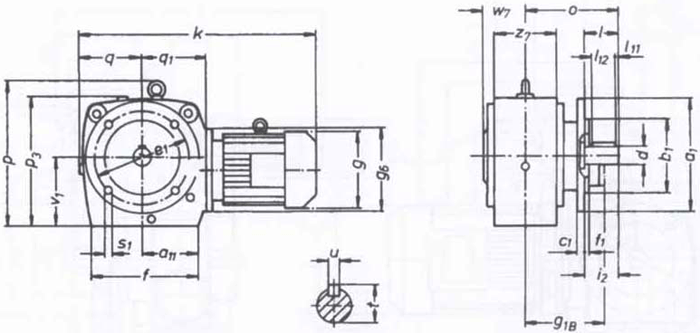

SWF100-SWF180法蘭式，實心軸輸出斜齒輪—蝸輪蝸桿減速電機外形及安裝尺寸 |
 |
| |
詳細介紹： |
發布時間：2007/8/3 11:19:23 |
|
| |
SWF100-SWF180
法蘭式，實心軸輸出
|
Type
型號 |
a1 |
a11
b1 |
c1
e1 |
f
f1 |
g |
g1B |
g6
i2 |
k |
o |
p
p3 |
q
q1 |
s1 |
v1 |
w7
z7 |
d
l |
l11
l12 |
t
u |
|
SWF100 |
Y63 |
160 |
90
110 |
10
130 |
153
3.5 |
130 |
100 |
120
50 |
447
465
470
507 |
136
|
-
179 |
83
102 |
9 |
100 |
64
103 |
25
50 |
7
40 |
28
8 |
|
Y71 |
175 |
150 |
|
Y80 |
|
Y90 |
195 |
160 |
|
SWF112 |
Y63 |
200 |
98
130 |
12
165 |
164
3.5 |
130 |
100 |
120
60 |
460
478
483
520
549 |
157 |
-
205 |
91
107 |
11 |
112 |
64
103 |
30
60 |
7
50 |
33
8 |
|
Y71 |
175 |
150 |
|
Y80 |
|
Y90 |
212 |
160 |
|
Y100 |
180 |
|
SWF140 |
Y63 |
200 |
125
130 |
12
165 |
215
3.5 |
130 |
100 |
160
70 |
505
523
528
565
594
614
669 |
190 |
295
257 |
108
135 |
11 |
145 |
82
135 |
35
70 |
7
56 |
38
10 |
|
Y71 |
175 |
150 |
|
Y80 |
|
Y90 |
212 |
160 |
|
Y100 |
180 |
|
Y112M |
275 |
210 |
|
Y132S |
|
SWF180 |
Y63 |
250 |
152
180 |
15
215
|
252
4 |
130 |
100 |
200
90 |
556
574
579
616
645
665
720
760 |
228 |
358
321 |
132
162 |
14 |
180 |
96
161 |
45
90 |
5
80 |
48.5
14 |
|
Y71 |
175 |
150 |
|
Y80 |
|
Y90 |
275 |
160 |
|
Y100 |
180 |
|
Y112M |
275 |
210 |
|
Y132S |
|
Y132M |
275 |
210 | |
|
|
