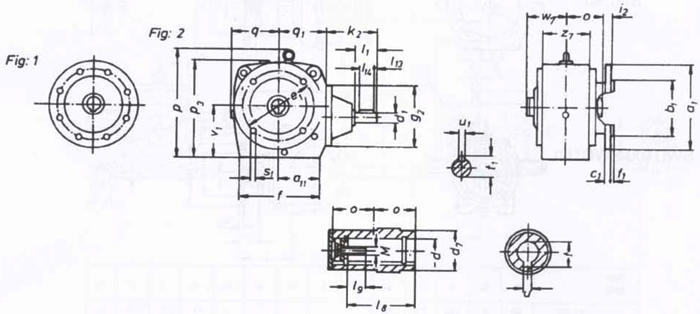

SWFA100ZS-SWFA280ZS法蘭軸裝式，軸輸入型斜齒輪—蝸輪蝸桿減速電機外形及安裝尺寸 |
 |
| |
詳細介紹： |
發布時間：2007/8/3 15:54:22 |
|
| |
SWFA100ZS-SWFA280ZS
法蘭軸裝式，軸輸入型
|
Type
型號 |
a1
a11 |
Fig |
b1
c1
e1 |
f
f1 |
g2 |
i2 |
k2 |
o
p
p3 |
q
q1
s1 |
v1
w7 |
z7 |
d |
d7 |
l8 |
l9 |
t |
u |
M |
d1
l1 |
l13
l14 |
t1
u1 |
|
SWFA
100ZS |
160
90 |
2 |
110
10
130 |
153
3.5 |
120 |
26.5 |
115 |
70
-
179 |
83
102
9 |
100
712 |
103 |
30
25 |
45 |
122
125 |
16 |
33.3
28.3 |
8 |
M10 |
16
40 |
4
32 |
18
5 |
|
SWFA
112ZS |
200
98 |
2 |
130
12
165 |
164
3.5 |
120 |
35 |
115 |
72.5
-
205 |
91
107
11 |
112
75 |
103 |
35
30 |
50 |
127 |
21
13 |
38.3
33.3 |
10
8 |
M12
M10 |
16
40 |
4
32 |
18
5 |
|
SWFA
140ZS |
200
125 |
2 |
130
12
165 |
215
3.5 |
160 |
42.5 |
120 |
90
295
257 |
108
135
11 |
145
93 |
135 |
45
40 |
65 |
156 |
29 |
48.8
43.3 |
14
12 |
M16 |
19
40 |
4
32 |
21.5
6 |
|
SWFA
180ZS |
250
152 |
2 |
180
15
215 |
252
4 |
200 |
45.5 |
140 |
109
358
321 |
133
162
14 |
180
112 |
161 |
60
50 |
85 |
188
191 |
36
31 |
64.4
53.8 |
18
14 |
M20
M16 |
24
50 |
5
40 |
27
8 |
|
SWFA
225ZS |
350
180 |
1 |
250
20
300 |
290
5 |
250 |
52.5 |
180 |
125
444
385 |
156
195
18 |
232
129 |
171 |
70
60 |
95 |
220 |
34
36 |
74.9
64.4 |
20
18 |
M20 |
28
60 |
5
50 |
31
8 |
|
SWFA
280ZS |
450
225 |
1 |
350
22
400 |
370
5 |
300 |
60 |
220 |
150
554
490 |
202
240
18 |
285
154 |
207 |
90
70 |
115 |
265
270 |
41
34 |
95.4
74.9 |
25
20 |
M24
M20 |
38
80 |
5
70 |
41
10 | |
|
|
