離心機LW355離心機

LW 355 系列高速離心機主要用于鉆井泥漿處理，尤其對環境要求敏感區域的固相干燥效果良好。

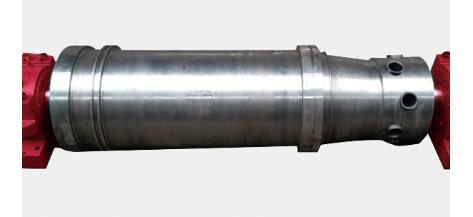

LW355系列高速離心機，轉鼓直徑355mm,轉鼓工作長度1257mm. 轉鼓及螺旋推進器皆為不銹鋼材質。355系列離心機設計處理主要針對高流速泥漿液，動力更強，提升泥漿液進出流量。主電機30KW, 副電機 7.5KW 為泥漿進入轉鼓提供更好動力。當轉速在3200RPM時，分離因素可高達2035 G’s

高速離心機：朋惠公司LW 355 系列主要用于鉆井泥漿處理，尤其對環境要求敏感區域的固相干燥效果良好。
1、多項設計專利，與國內眾多知名院校合作研發，滿足高端客戶需求；

2、轉鼓直段，和錐段采用2205雙向不銹鋼材料，通過離心澆鑄而成。

3、轉鼓總成其余部件采用SS304L不銹鋼材料。

4、液壓油箱高低液位或高溫時，實現自動停車功能；

2, 轉鼓、螺旋等主要零部件采用耐腐蝕不銹鋼或雙向鋼制造，極限轉速高，分離因數大；

3,雙電機控制，高端機型實現轉鼓、螺旋轉速分別無級可調；

4,螺旋推進器表面噴涂合金或者鑲嵌硬質合金；

5,溢流口調節裝置專利設計，調節便利，能適應不同的工況要求；

6,正壓PLC智能防爆控制柜，便于自動化操作，且能滿足高溫工況的使用；

7,原裝進口SKF/NSK軸承，提高設備穩定性，和軸承使用壽命；

8、擺線齒輪、行星齒輪和液壓差速器三種結構選擇，差速調節范圍大，用于不同固相的推料扭矩傳遞；

9、多重安全保護：電機過載保護、軸承溫度監控、螺旋推料扭矩保護等。


技術參數	LW355*1257-N		LW355*1257BP-N
轉鼓內徑（mm）	355		355
轉鼓工作長度（mm）	1257		1257
轉鼓最高轉速 rpm	3400
轉鼓工作轉速 rpm	2800	3000		≤3200
分離粒徑 μm	2-5
外形尺寸 mm	300015001990
處理量（比重<1.1）m3/h	22-30		0-36

Centrifuge LW355

LW 355 series high speed centrifuges are mainly used for drilling mud treatment, especially for solid phase drying in sensitive areas.
LW355 series high speed centrifuge, drum diameter 355mm, drum working length 1257mm. Drum and propeller are made of stainless steel. The 355 series centrifuge is designed and processed mainly for the mud slurry with high flow rate, which has stronger power and improves the flow rate of mud slurry. Main motor 30KW, auxiliary motor 7.5kw for mud into the drum to provide better power. When the rotation speed is 3200RPM, the separation factor can be as high as 2035 G's

High speed centrifuge: penghui LW 355 series is mainly used for drilling mud treatment, especially for the solid phase drying effect in the environmentally sensitive areas.
1. A number of design patents, cooperated with a number of well-known domestic universities in research and development, to meet the needs of high-end customers;

2. The straight drum section and the cone section are made of 2205 two-way stainless steel by centrifugal casting.

3. Other parts of drum assembly are made of SS304L stainless steel.

4. When the hydraulic oil tank is at high or low level or high temperature, it can automatically stop;

2. Main parts such as drum and screw are made of corrosion-resistant stainless steel or two-way steel, with high limit speed and large separation factor;

3, dual motor control, high-end models to achieve stepless drum, spiral speed adjustable;

4. The propeller is sprayed with alloy or inlaid with carbide;

5. The patent design of overflow port adjustment device is convenient for adjustment and can adapt to different working conditions;

6, positive pressure PLC intelligent explosion-proof control cabinet, easy to operate automatically, and can meet the use of high temperature conditions;

7. Original imported SKF/NSK bearings to improve equipment stability and bearing service life;

8, cycloid gear, planetary gear and hydraulic differential three structural choices, the difference speed adjustment range is large, for different solid phase of the material torque transmission;

9. Multiple safety protection: motor overload protection, bearing temperature monitoring, screw material torque protection, etc.
